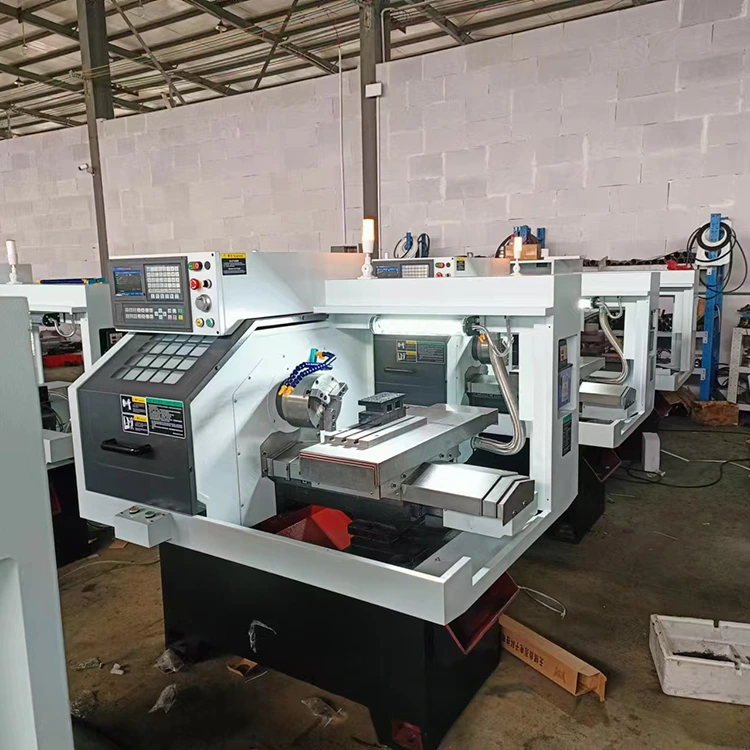

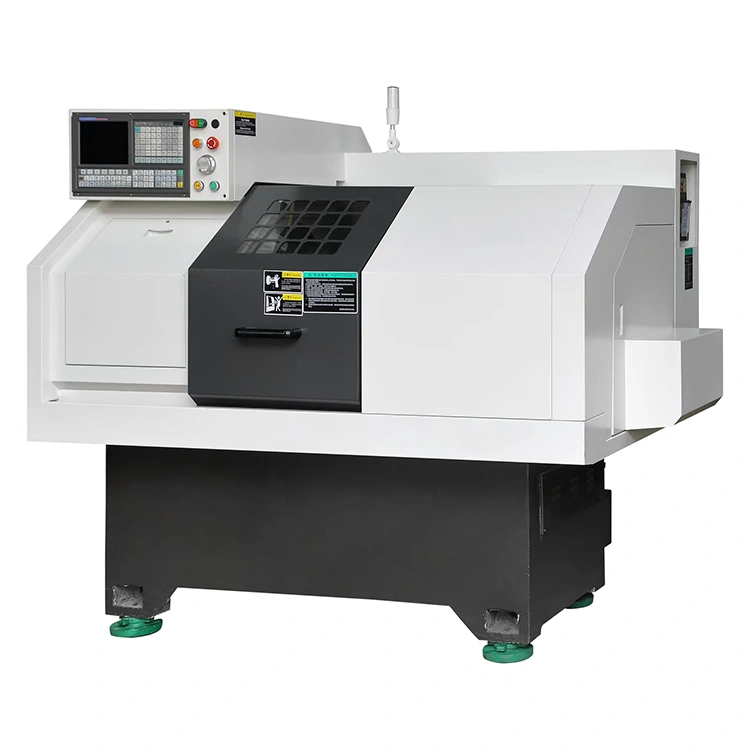

Truss Integrated Machine

Mahcine quotationCustomerRezaQuotation No.YL2025091101ContactRezaQuotation Date2025-9-11CC. Quotation Validity30 daysTel Delivery Time20 days after got depositPrice0640 (including Fly-cutter power head and Square tool turret)RMB42000SETPaymentT/T.30% asdeposit, 70% paymentbeforedelivery.WarrantyOne ......

Send Inquiry

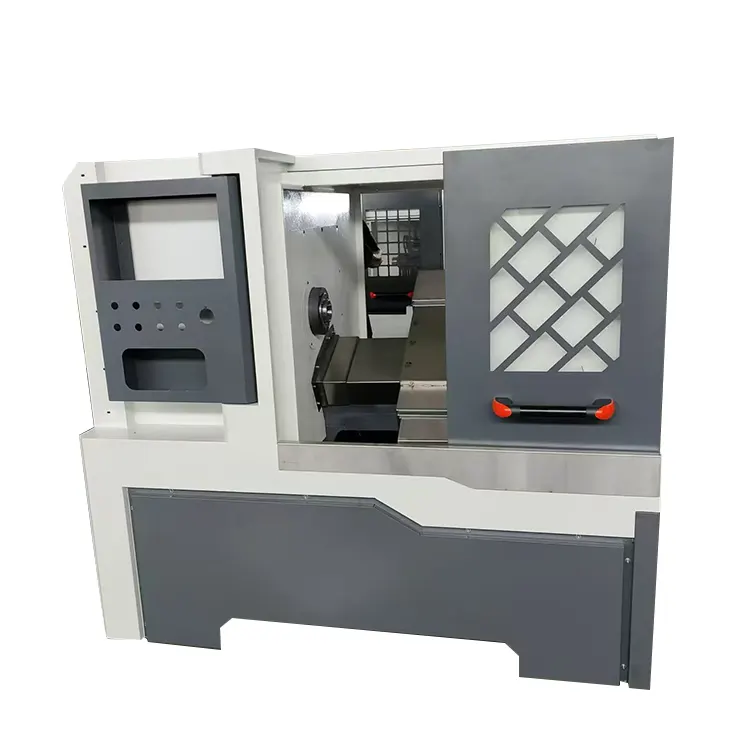

Product Description

Mahcine quotation

Customer	Reza	Quotation No.	YL2025091101
Contact	Reza	Quotation Date	2025-9-11
CC.		Quotation Validity	30 days
Tel		Delivery Time	20 days after got deposit
Price	0640 (including Fly-cutter power head and Square tool turret) RMB42000SET
Payment	T/T.30% asdeposit, 70% paymentbeforedelivery.
Warranty	One year.

Technical Parameters

Name		Spec
Processing capability	Max swing diameter over bed (mm)	280
	Max swing diameter over carriage (Φ/mm)	φ160
	Max turning length（Φ/mm）	280
	Max turning diameter（Φ/mm）	280
	Max through-hole diameter for bar stock（Φ/mm）	42

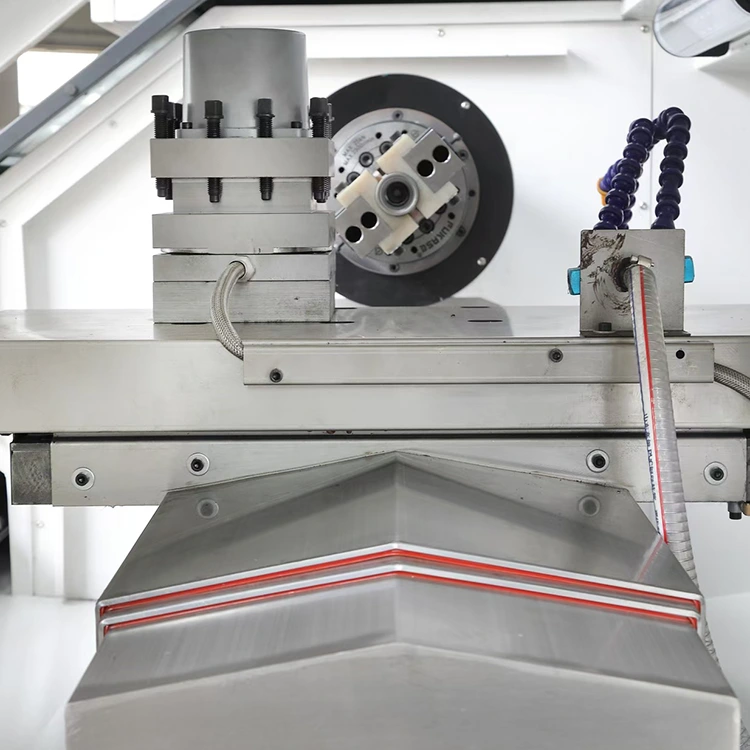

Spindle	Spindle Nose Type (GB 5900.1)	A2-5
	Taper of spindle liner hole	21° GB21°
	Spindle through-hole diameter（Φ/mm）	49
	Spindle drawbar through-hole diameter	41.5
	Spindle drawbar thread	M48×1.5
	Spindle speed range(r/min)	0-3000（4000） Standard Configuration: 0-3000 (Optional: 4000)
	Spindle gear shifting mode	32 Independent Spindle: 3 Front, 2 Rear
	Main Motor Power (Continuous Rating) (kW)	4
	Main Motor Power (Instantaneous Maximum Value) (kW)	4
	X-Axis Rapid Traverse Speed (m/min)	15
	Z-Axis Rapid Traverse Speed (m/min)	15
	X-Axis Servo Motor Torque (N·m)	110/6.4
	Z-Axis Servo Motor Torque (N·m)	110/6.4
	X-Axis stroke(mm)	640
	Z-axis stroke(mm)	280
	X-Axis & Z-Axis Motor Connection Method	Direct Coupling
	Z-axis guideway	Z-30-640 Z-axis ball screw 30-640 Square type
	X-axis guideway	X-30-540 X-axis ball screw 30-540 square type
	Guideway type	（30FZS） Linear guideway (30FZS)

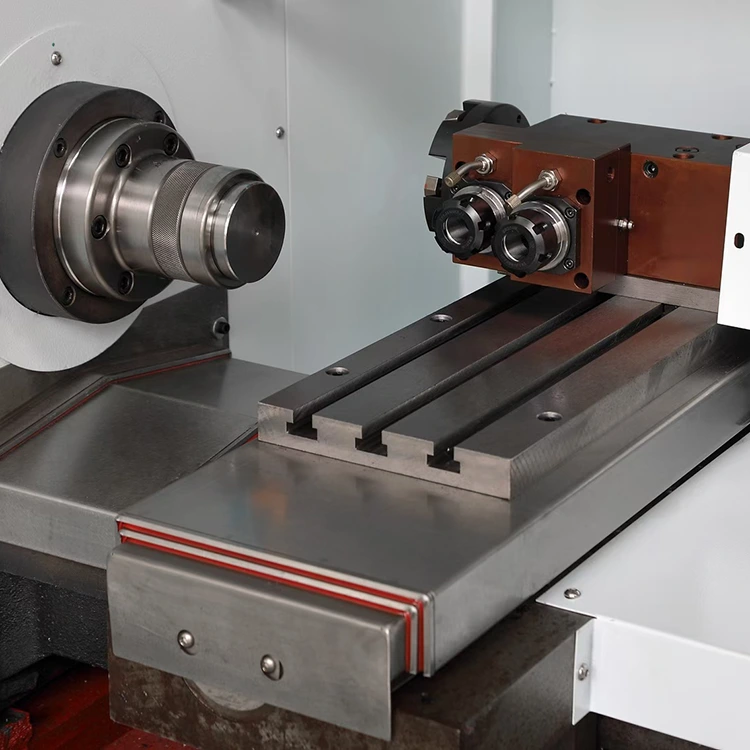

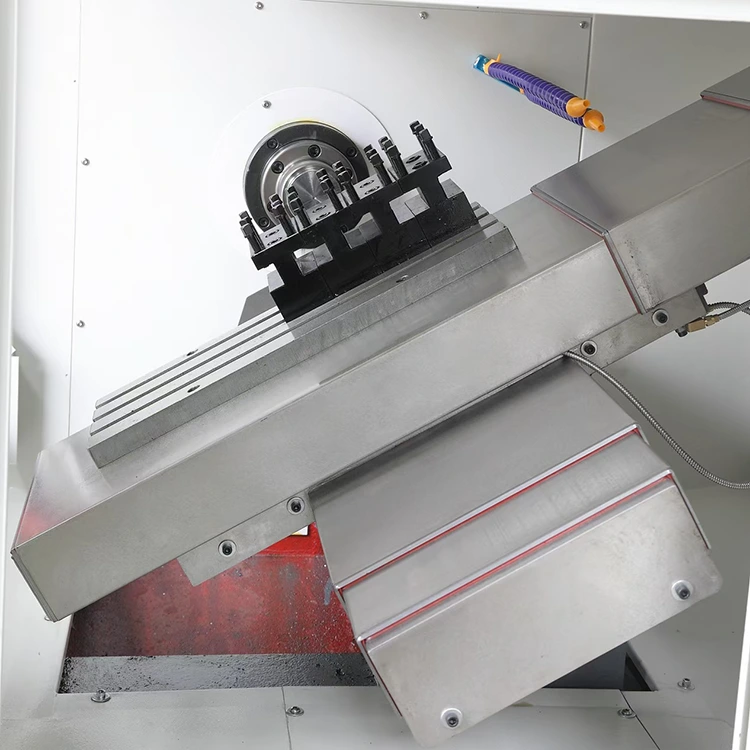

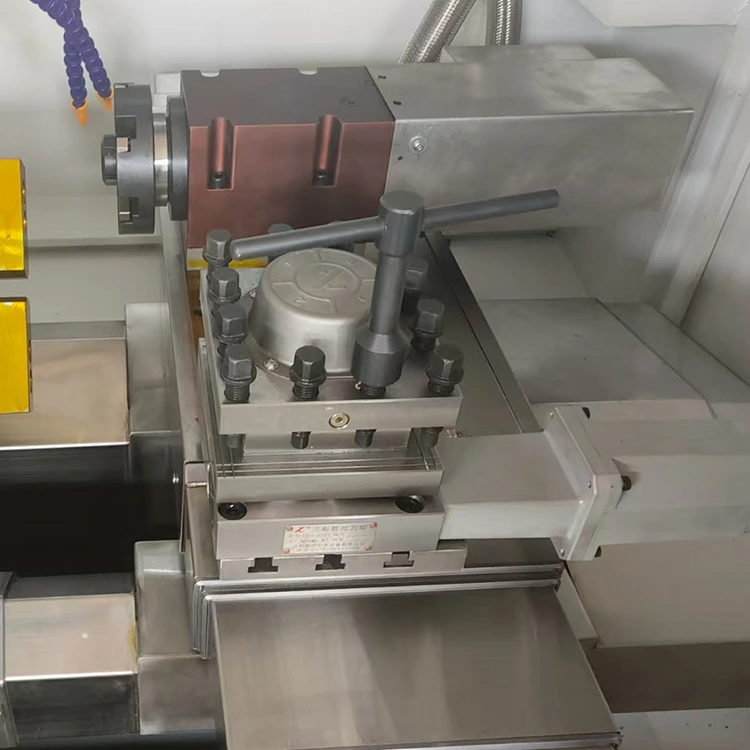

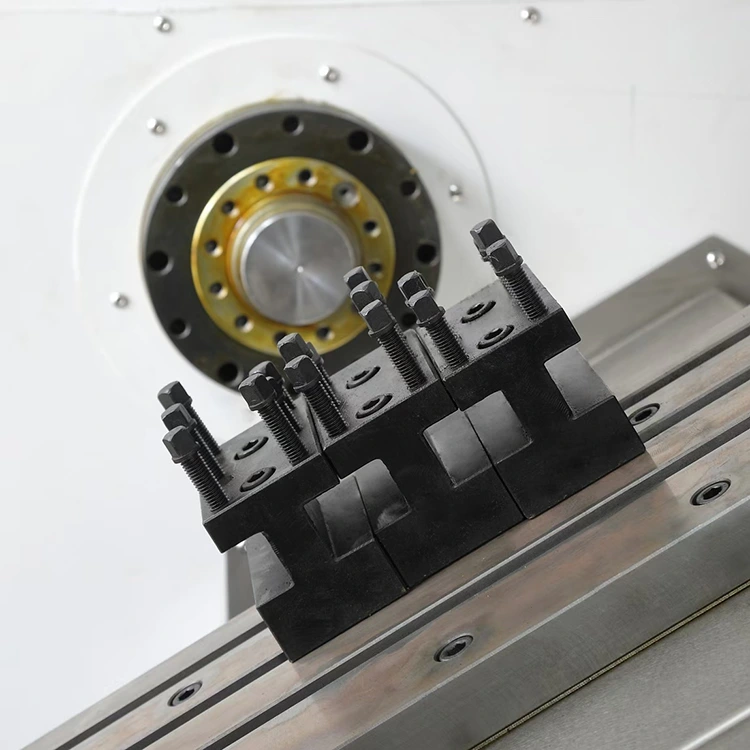

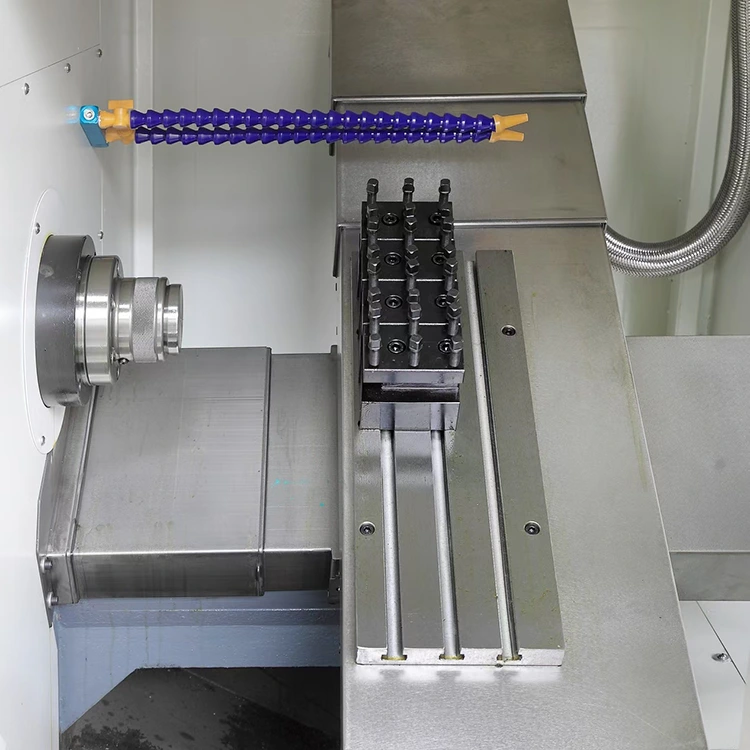

Tool turret	Tool Turret Type	6125
	Number of Tool Stations
	（MM） Tool size(mm)	20*20 Fixed Tool Post (20×20)
Truss	X-axis standard stroke	2400mm
	X-Axis MaxSpeed	1.5mm/s
	Y-axis standard stroke	650mm
	Y-axis Max speed	1m/s
	Z-axis standard stroke	1000mm
	Z-axis Max speed	1.5m/s
	Tray height from the ground	1100mm
	Tray size	550*350mm
	Number of trays	2 2 pics
	Truss material	steel
	End of gripper	， Pneumatic clamping pneumatic rotation
	Transmission mode	Linear guideway with inclined rail rack
	Input voltage	220V
	Input air pressure	0.5-0.8pa
Power supply	Rated total power	9KW
Power supply	Rated total current	20A
Spec	Machine weight	900kg
Spec	Machine size（L×W×H）	1650×1250×1600mm
other	Clamping method
	Chuck diameter(optional)
	Water pump power	380V/90w
	Ball screw model(X-axis)	2508
	Ball screw modell (z-axis)	3208
	Chip conveyor type(optional purchase)
	Machinign field	Auto motorcycle parts and hardware accessories

machine tool configuration details

	Name		Bank and model		Place of origin	Remark
CNC System		980TB3i		China guangzhou

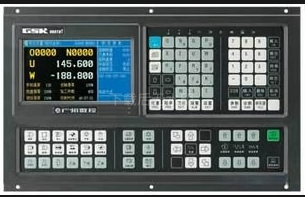

Servo motor		GSK		China guangzhou
VFD		3.7KW		China guangzhou
	Spindle bearing		7215/7213 AC P4 32Front & 2 Rear Arrangement		China wuxi	Angular contact heavy-duty bearing
	Screw bearing		CSC 760204 P4		China wuxi	Integrated 60° High Precision
	X-axis ball screw		25mm8㎜			Japanese imported material(C3)
	Z-axis ball screw		32mm 8㎜			Japanese imported material(C3)

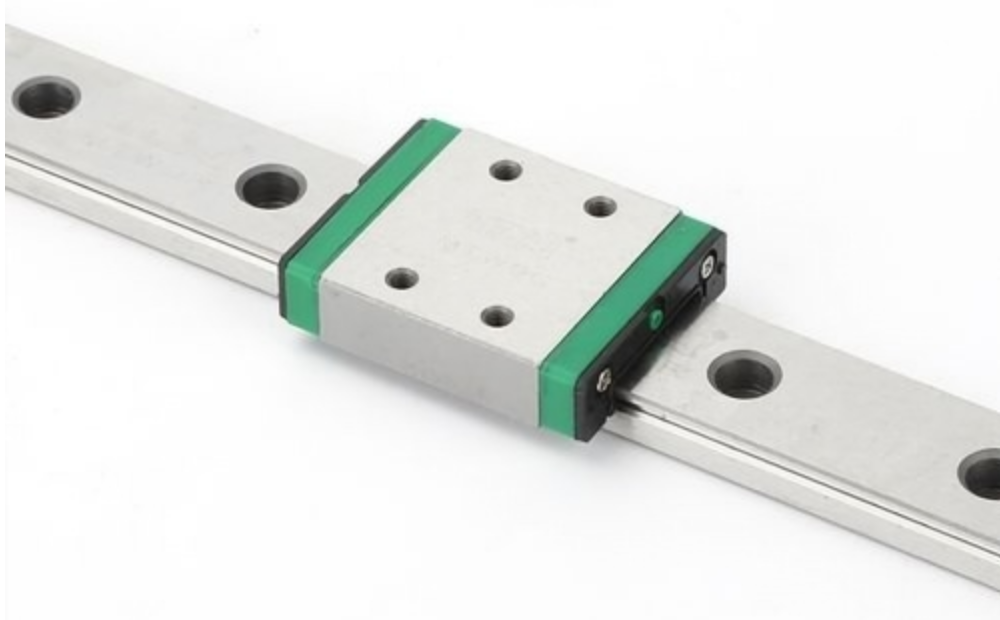

	Linear guideway		FZS30A2R540 FZS35B2R640			H
	Clamping bearing		549 hollow hydraulic cylinder		Conton taiquan
	Push button switch		OV normally open type
	relay		Tengen		China
	contactor		Tengen		China
	Power supply system		Mean Well Power Supply Box, +24V Power Supply		Taiwan
