Slant Bed CNC Lathe with Servo Turret and Tailstock

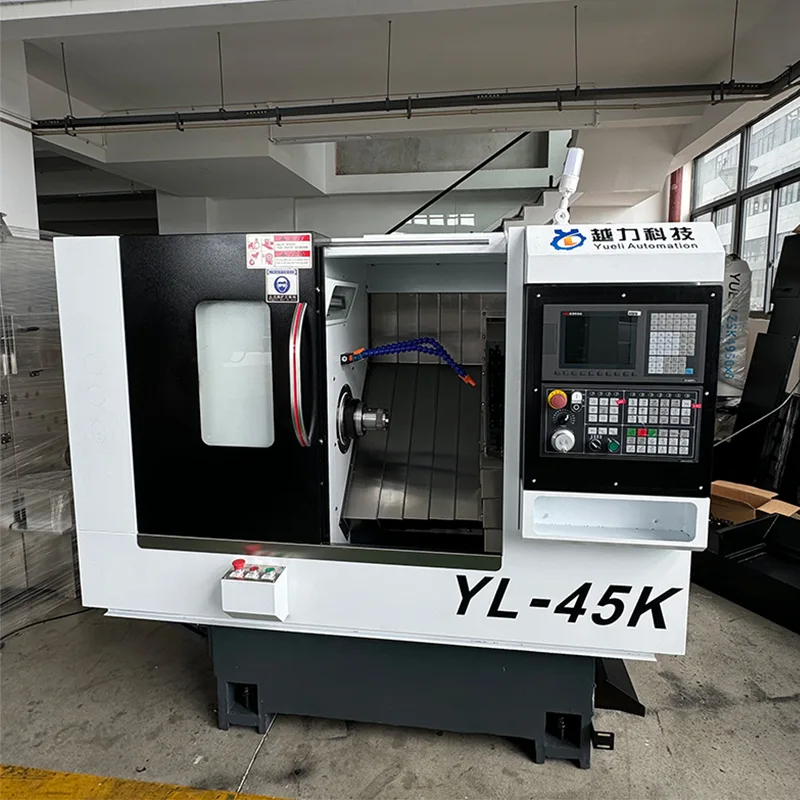

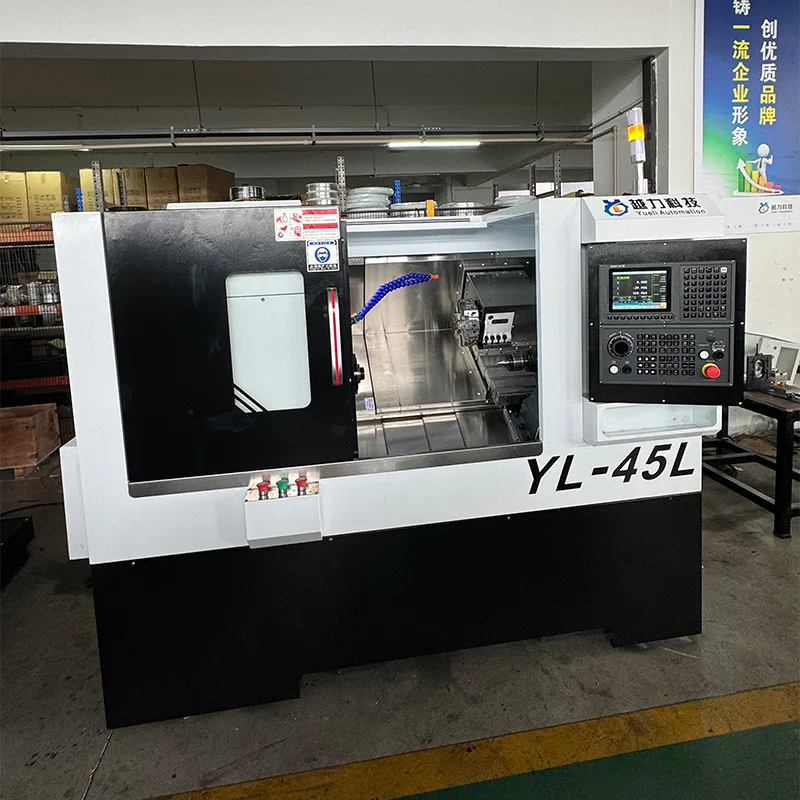

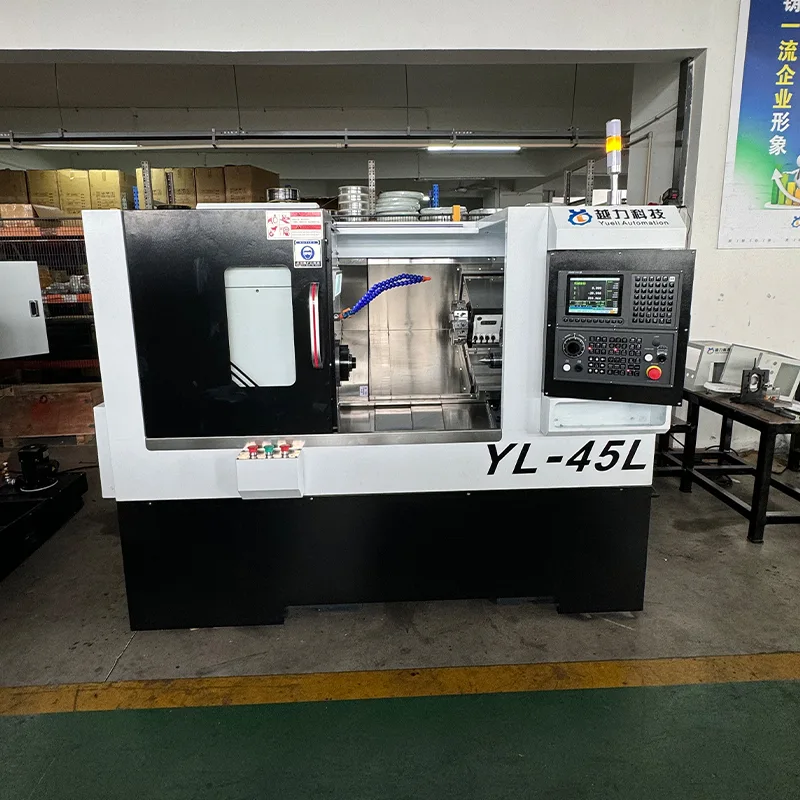

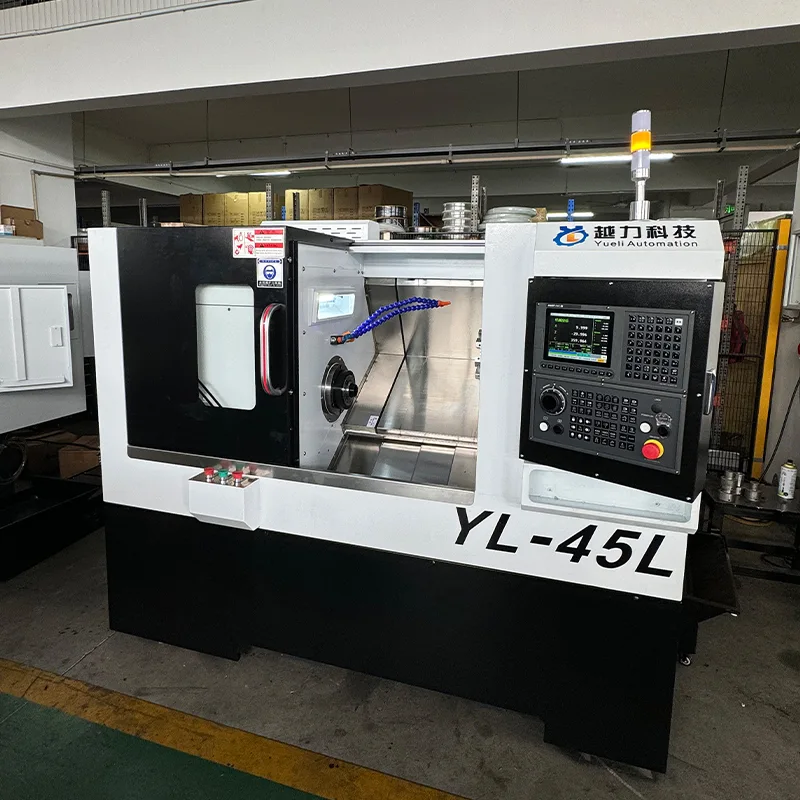

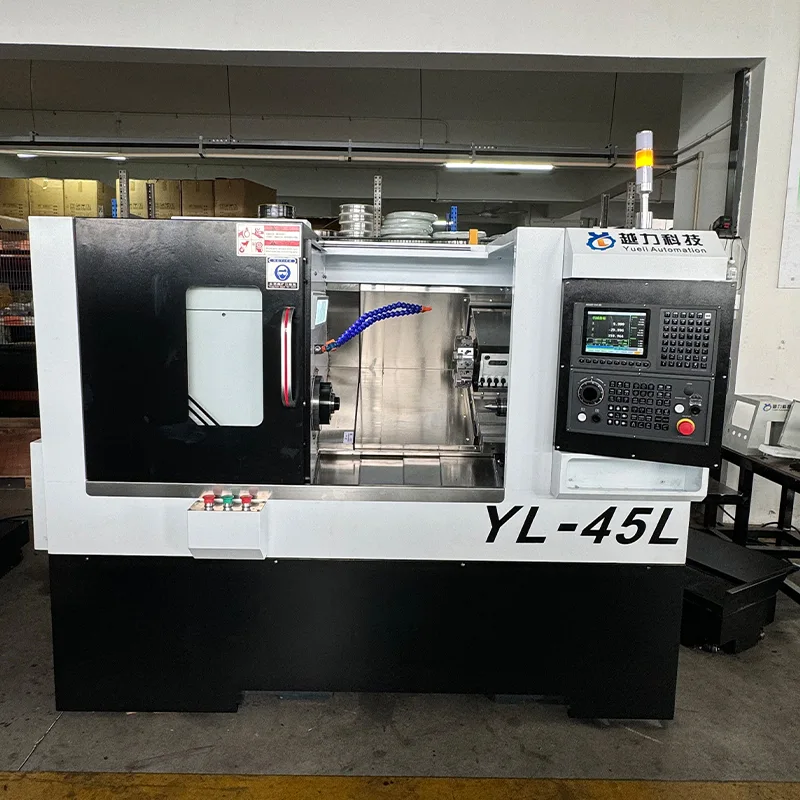

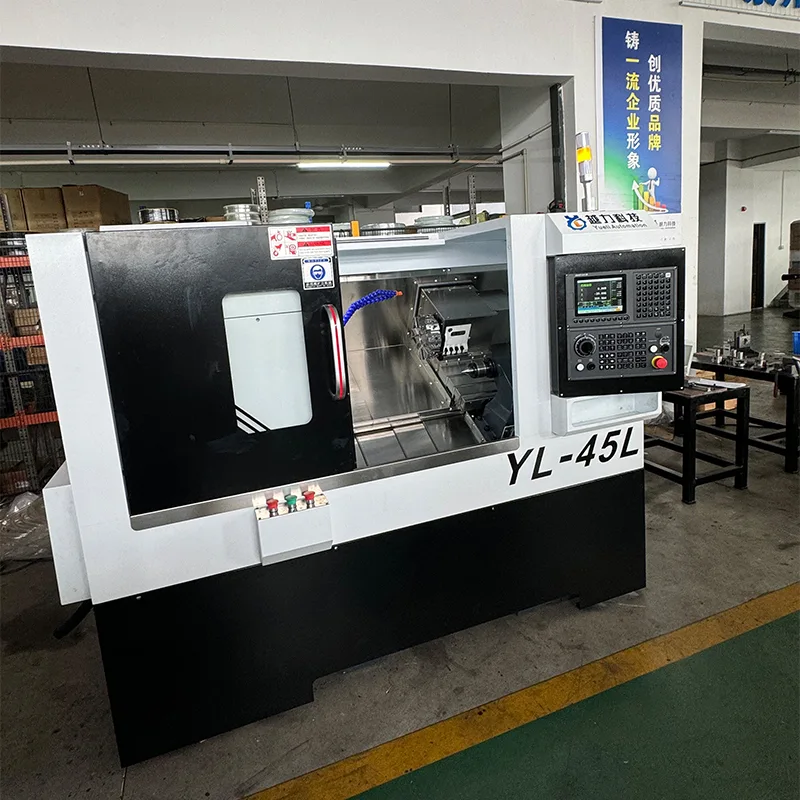

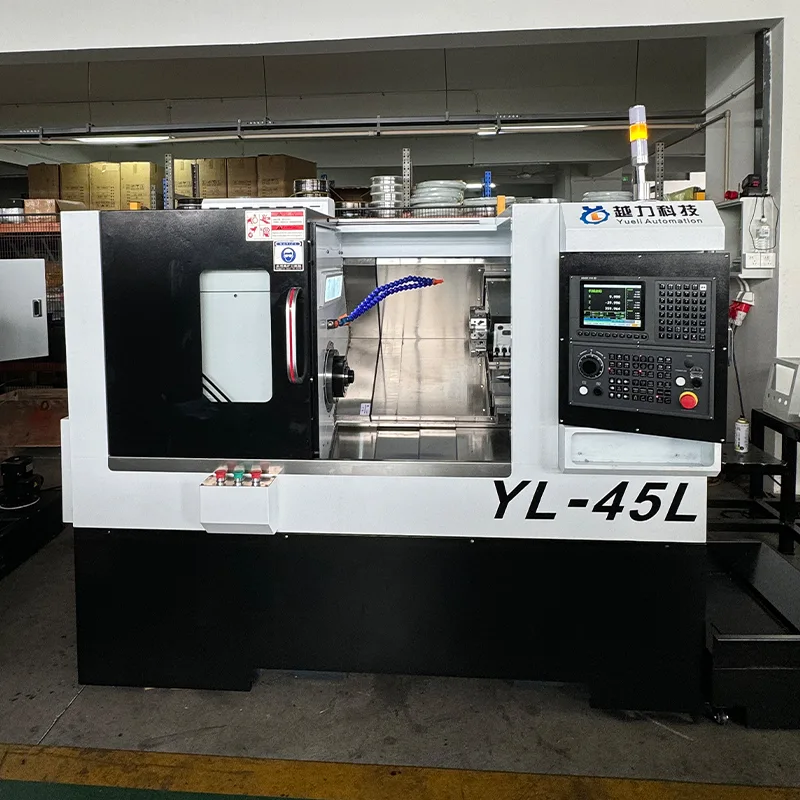

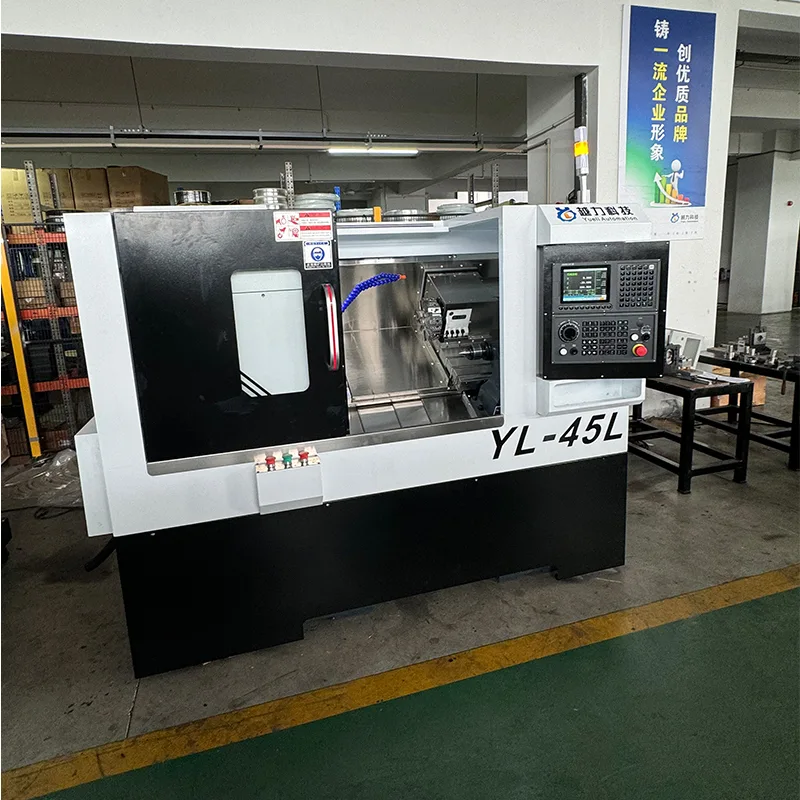

Slant Bed CNC Lathe with Servo Turret and Tailstock (model YL-45L) is produced by Quanzhou Yueli Automation Equipment Co., Ltd. The machine features a 30-degree slant bed design with a 63 servo turret for tooling. It is equipped with FANUC Oi-TF PLUS (5) CNC system, Japan THK 32mm precision ball screws and 30mm precision linear roller guides, providing stable and accurate machining performance. The spindle speed ranges from 0 to 5000 RPM with a 7.5KW Huahong spindle motor. The machine has a linear guide tailstock with hydraulic propulsion, tailstock travel is 500mm, and the tailstock taper is MT4. Maximum turning diameter is 375mm, and maximum machining length is 380mm with chuck.

Technical Specifications

The following technical parameters apply to the Slant Bed CNC Lathe with Servo Turret and Tailstock.

Main Configuration

The Slant Bed CNC Lathe with Servo Turret and Tailstock is equipped with the following key components.

Standard Accessories

The following accessories are included with the Slant Bed CNC Lathe with Servo Turret and Tailstock.

Machine Structure and Key Features

The Slant Bed CNC Lathe with Servo Turret and Tailstock incorporates the following structural and performance features.

· Bed: 30-degree slant bed design for rigidity and efficient chip flow.

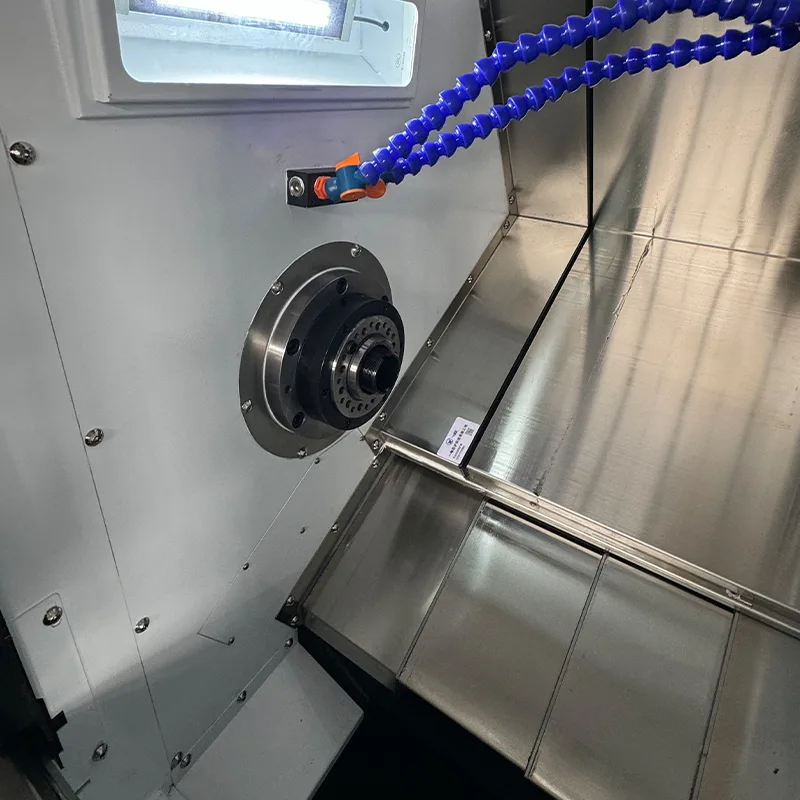

· Spindle: Cartridge precision spindle assembly with Japan NSK bearings. Spindle model A2-5 with 170mm diameter. Speed range 0-5000 RPM.

· Guideways: Japan THK 30mm precision linear roller guides. X axis with 4 standard blocks, Z axis with 4 extended blocks.

· Ball Screws: Japan THK 32mm precision ball screws with 10mm pitch for both X and Z axes.

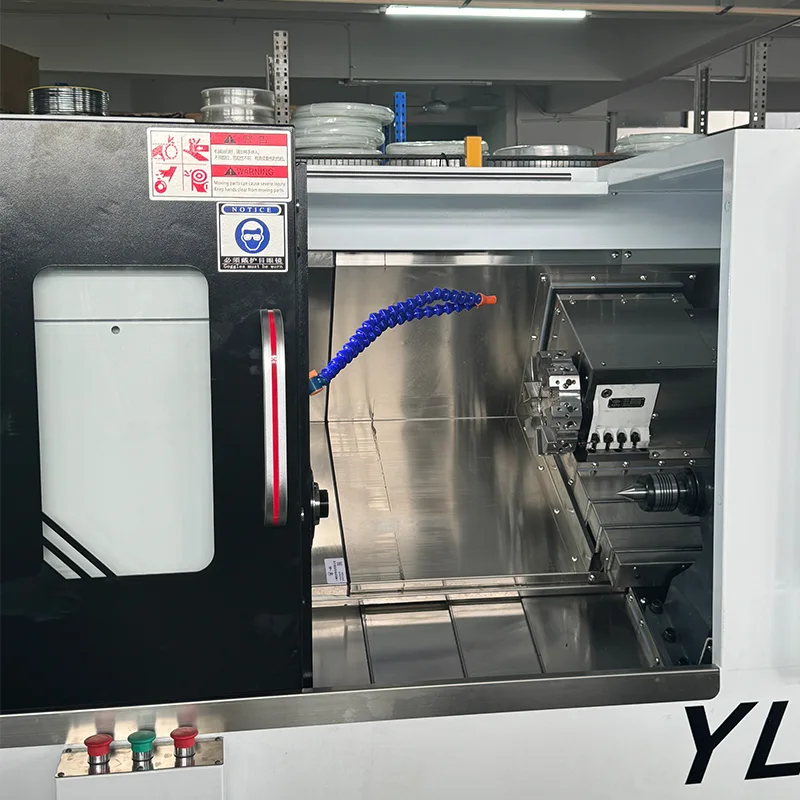

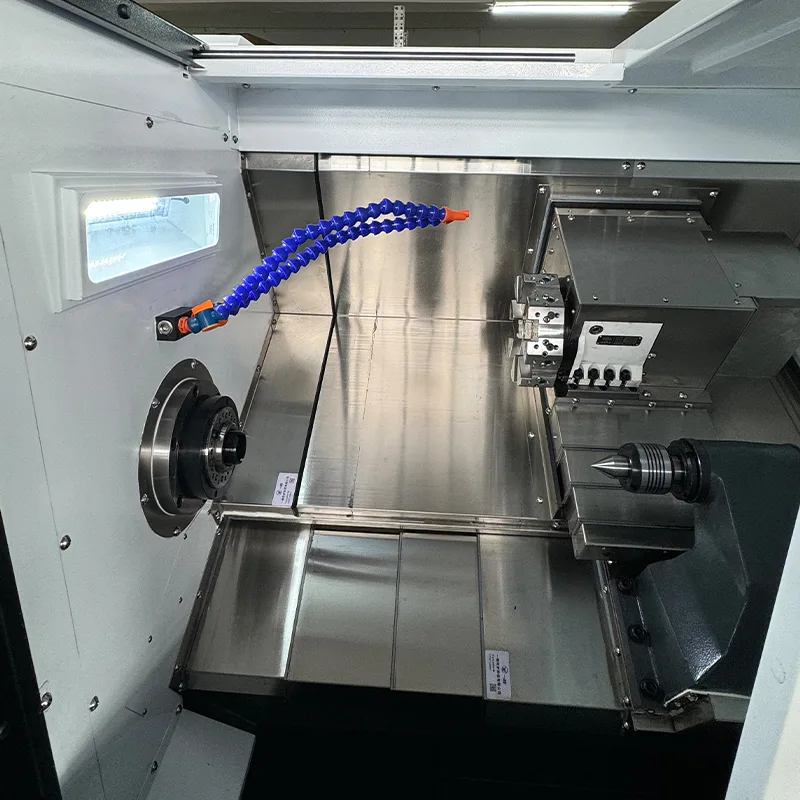

· Tooling: 63 servo turret for automatic tool changing.

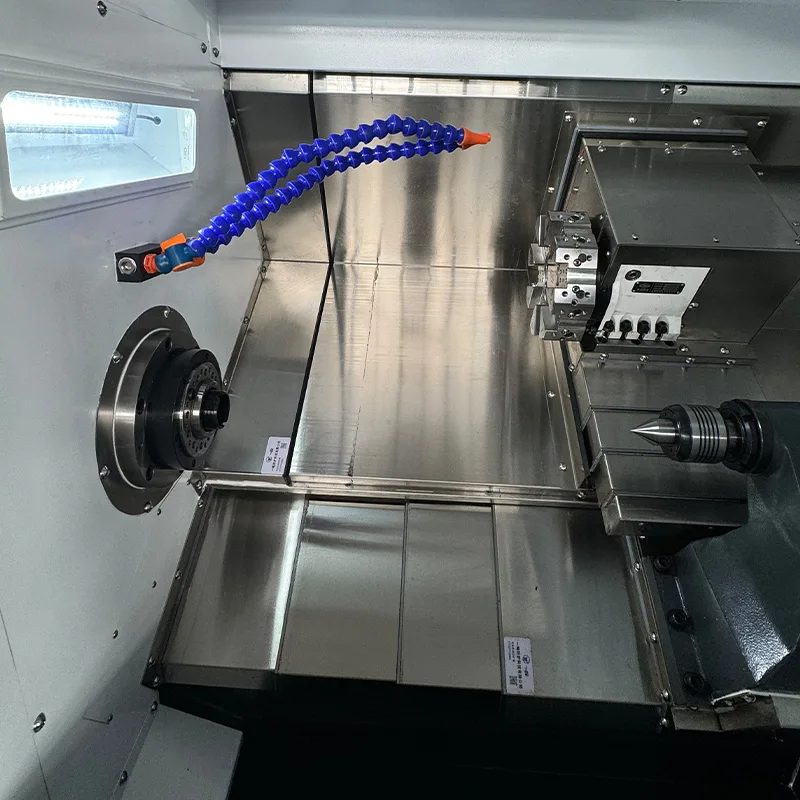

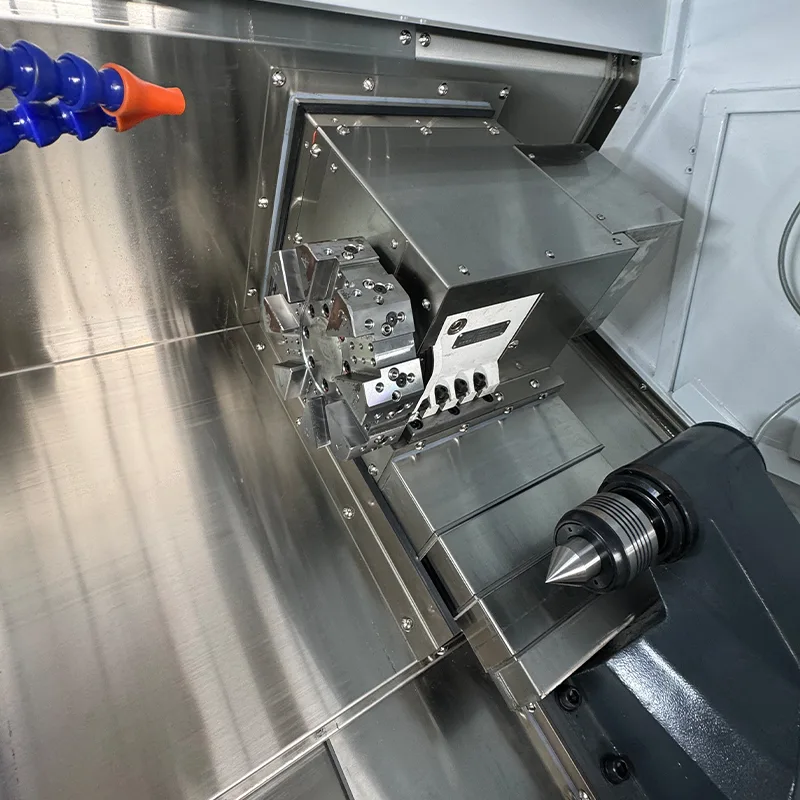

· Tailstock: Linear guide tailstock with hydraulic propulsion. Tailstock travel 500mm. Tailstock taper MT4.

· Motor Connections: Main motor with belt drive, X and Z motors with direct drive.

Ordering Information

The following pricing and ordering details apply to the Slant Bed CNC Lathe with Servo Turret and Tailstock.

· Product Name: Slant Bed CNC Lathe (Tool Turret Type)

· Model: YL-45L

· Payment Terms: 30% deposit, balance before shipment

· Warranty: 1 year for parts (man-made damage excluded)

· Tax: 13% VAT included

· Freight: Included

Frequently Asked Questions

What is the control system of this slant bed CNC lathe?

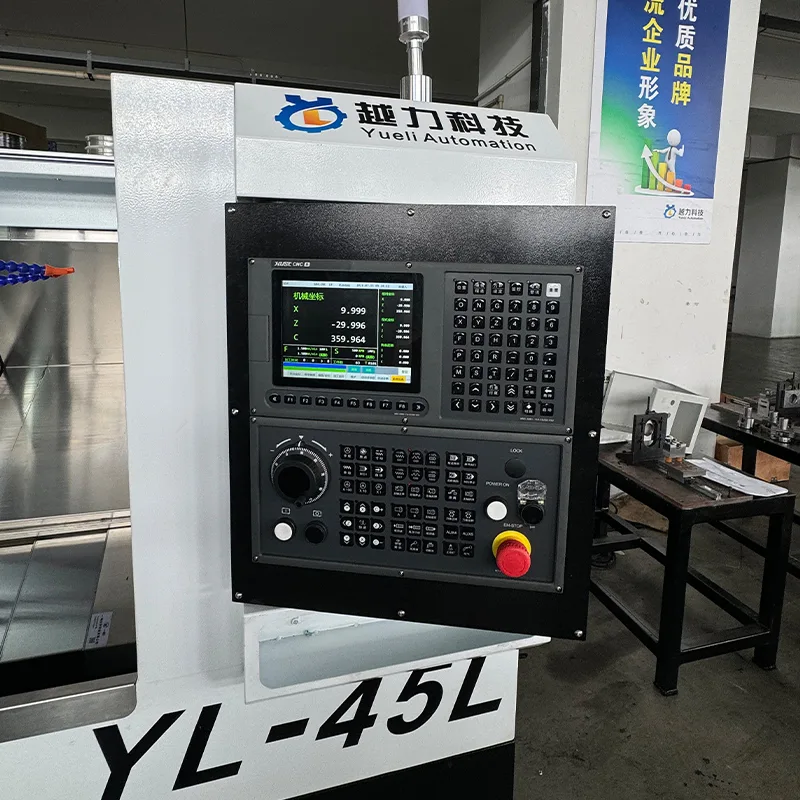

The slant bed CNC lathe uses the FANUC Oi-TF PLUS (5) CNC system with FANUC servo motors and drives for the X and Z axes.

What are the X and Z axis travel of this machine?

X axis travel is 200mm, and Z axis travel is 460mm.What is the spindle speed and spindle motor power?

The spindle speed range is 0 to 5000 RPM, and the spindle motor power is 7.5KW from Huahong.

What type of bed and tooling does this machine have?

The machine has a 30-degree slant bed with a 63 servo turret for automatic tool changing.

What are the guideways and ball screws specifications?

X and Z axes use 32mm precision ball screws and 30mm precision linear roller guides, both from Japan THK.

What is the weight and dimensions of this CNC lathe?

The machine dimensions are 1875×1021×1263mm, and the weight is approximately 1.8 tons.

What type of tailstock does the machine have?

The machine has a linear guide tailstock with hydraulic propulsion, tailstock travel is 500mm, and the tailstock taper is MT4.
