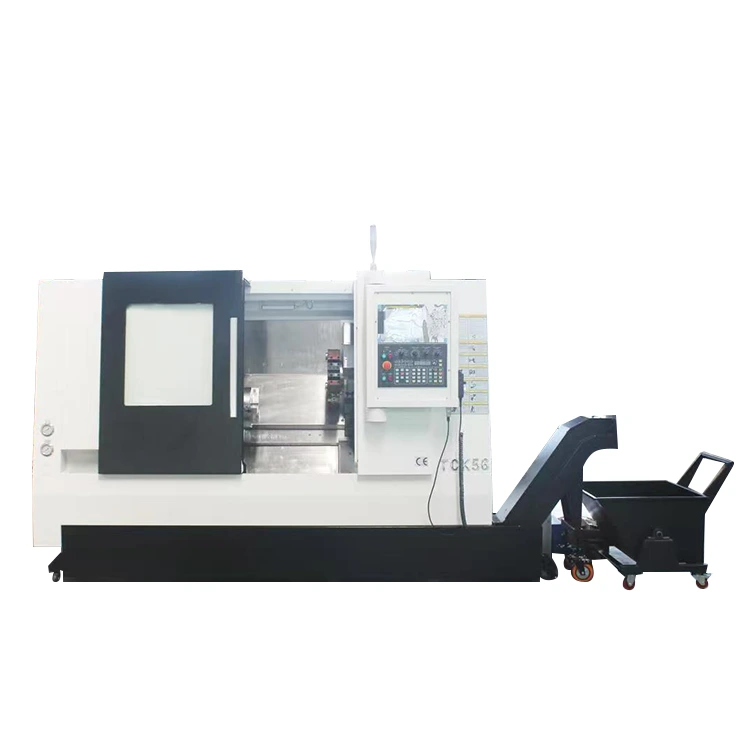

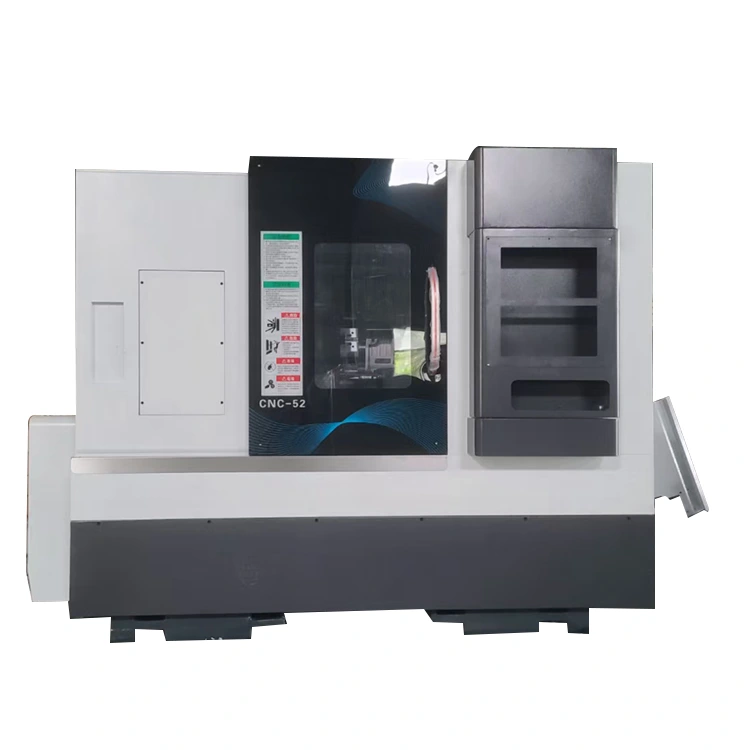

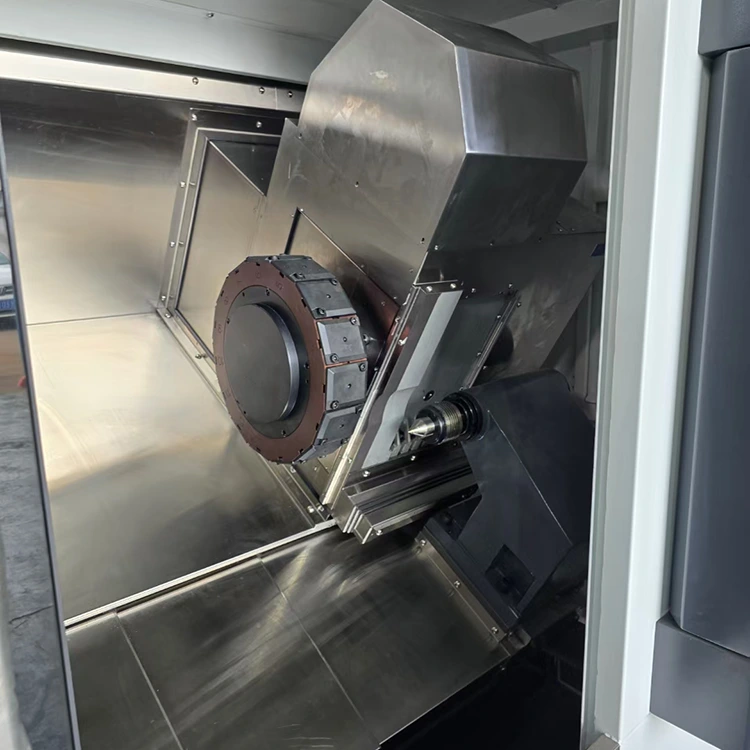

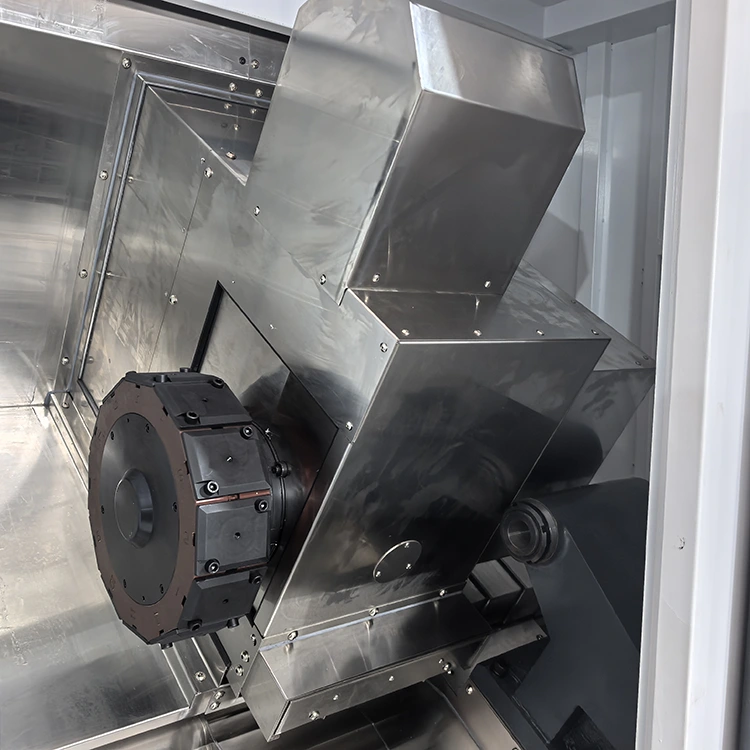

CNC Turn-Mill Center with Tailstock
  • CNC Turn-Mill Center with TailstockCNC Turn-Mill Center with Tailstock
  • CNC Turn-Mill Center with TailstockCNC Turn-Mill Center with Tailstock
  • CNC Turn-Mill Center with TailstockCNC Turn-Mill Center with Tailstock

CNC Turn-Mill Center with Tailstock

NO.NameUnitSpecRemark1Slide Table Top Dimensionmm450*340 2Max travel of z axismm600 3Max travel of X axismm300 4Max swing diametermm650 5Diatance from spindle to slide table topmm170 6Distance from spindle center to groundmm1100 7MAX maching lengthmm475Taking the NF80-170-BMT55-12T power turret as a......
Model:YL-52Y

Send Inquiry

Product Description


NO.

Name

Unit

Spec

Remark

1

Slide Table Top Dimension

mm

450*340



2

Max travel of z axis

mm

600



3

Max travel of X axis

mm

300



4

Max swing diameter

mm

650



5

Diatance from spindle to slide table top

mm

170



6

Distance from spindle center to ground

mm

1100



7

MAX maching length

mm

475

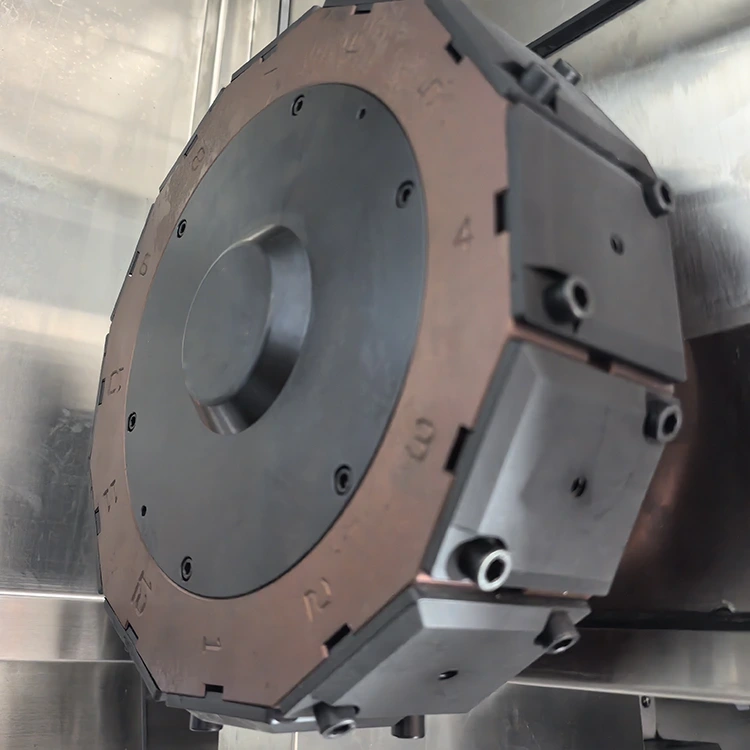

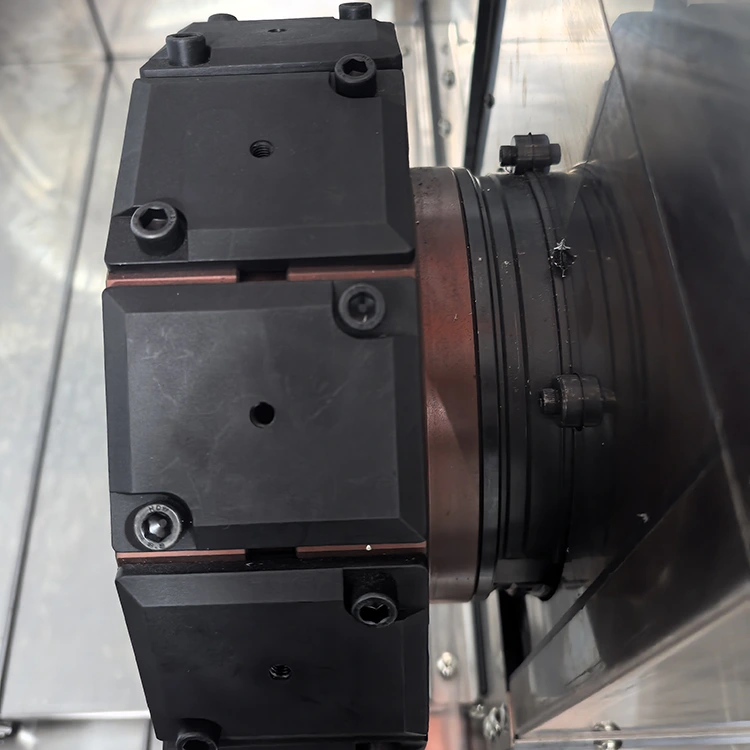

Taking the NF80-170-BMT55-12T power turret as an example

8

MAX turning diameter

mm

500

9

Spindle modle(spindle diameter)

mm

A2-6(200)



10

Spindle speed

RPM

0-4000



11

X、Z ball screw specifictions



32*10/40*10

Japanese THK ball screw,Class C3

12

X-axis linear guide rail



Taiwan HIWIN roller clss p,Size 35

4 Sliders-standard type

13

Z-axis linear guide rail



Taiwan HIWIN roller clss p size 35

4 Sliders -Extended-Length Sliders

14

Connection  method of main X.Z motor



Timing belt/Direct drive/Direct drive



15

X.Z. Tailstock Motor Flange / Spigot

mm

130/110



16

Machine size

mm

2415*1257*1270



17

Machine net weight

KG

3800kg

With inernal and  external protection

18

Tool installation method



170-BMT55 power turret



19

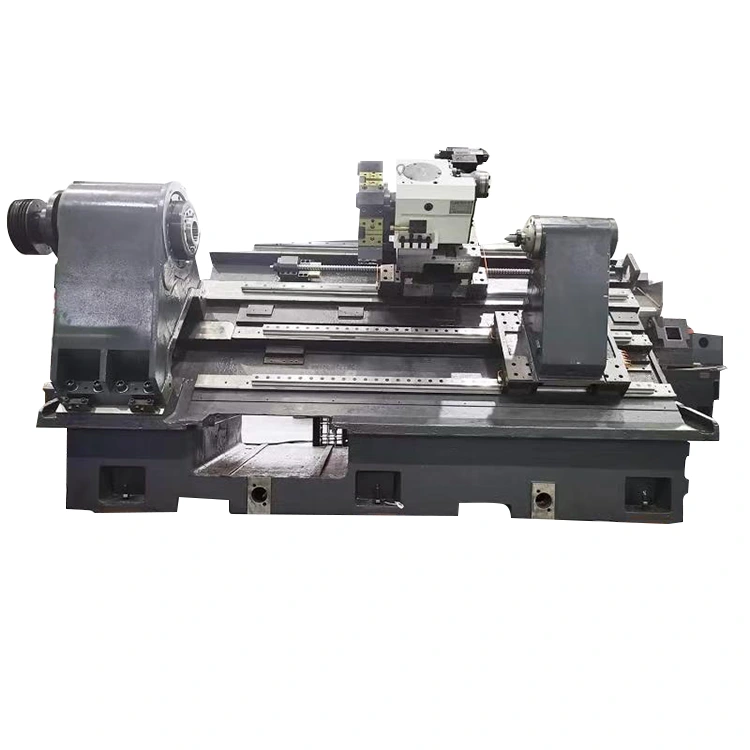

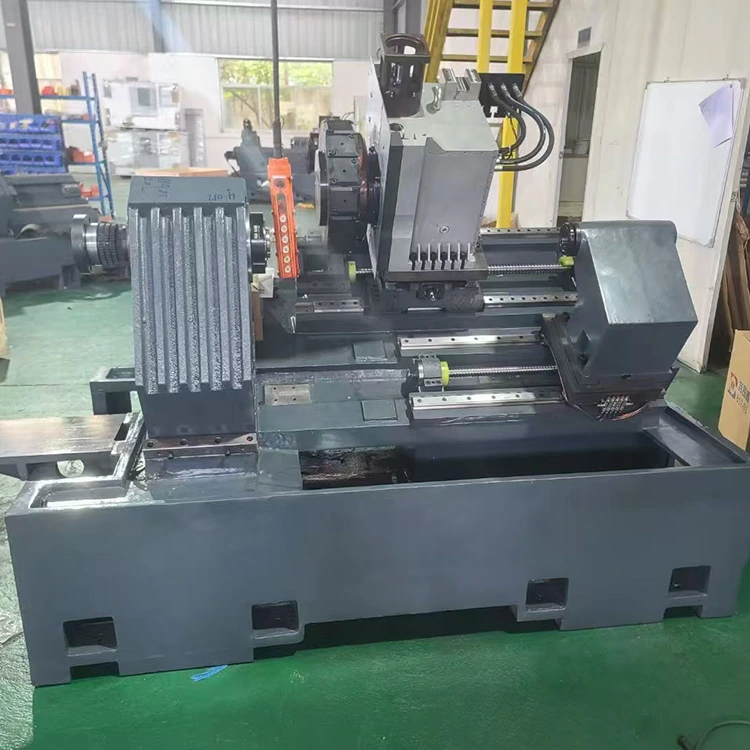

Machine base type and inclination



30-Degree slant bed



20

Tailstock



Linear guide tailstock



21

Tailstock advancing method



Hydraulic propulsion and servo propulsion

Standard-Equipped Hydraulic Tailstock Center

22

Max travel of tailstock



600



23

Min projection length of the tailstock



30mm



24

Tailstock center model



MT5




Model configuration

Name

Place of rigin/Spec

Name

Place of origin/Spec

CNC System

HUST

X/Z-Axis servo motors+Drives

Delta

32 Precision Ball Screw

THK(Japan)

Spindle motor

Huahong 7.5KW

30 Precision Linear Roller Guideway

HIWIN (Taiwan, China)

Hydraulic rotary cylinder

 TAIWAN

Cylindrical Precision Spindle Unit

NSK Bearings (Japan)

cool

750W

Hydraulic station

Taiwan

Power Head

3工位 11.4N

Random Accessories

Name

Model/Spec

Name

Model /spec

Collet(for material clamping)

1 pcs(Supplied with machine)

 Turning tool post drilling tool post

3PCS/2PCS

Drilling tool shank

2 Pcs of ER20A Extension Rods

Hex key

1Set
