Product Description

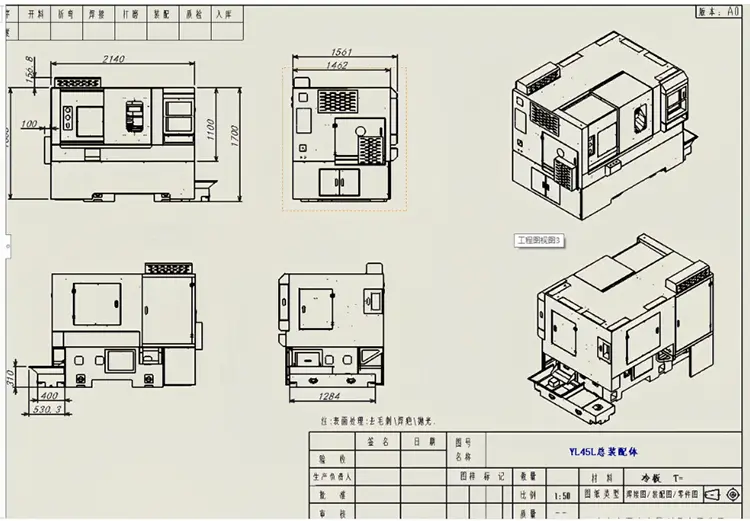

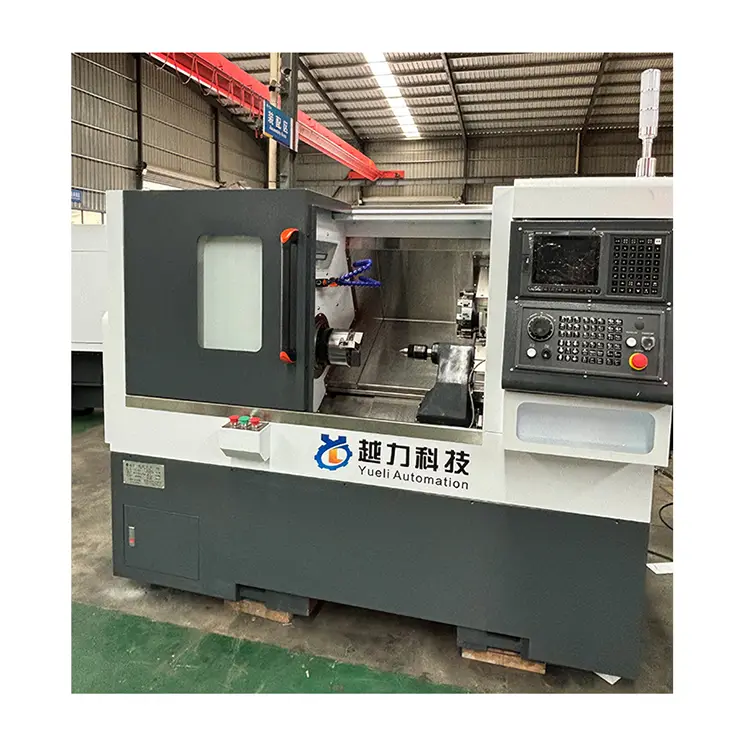

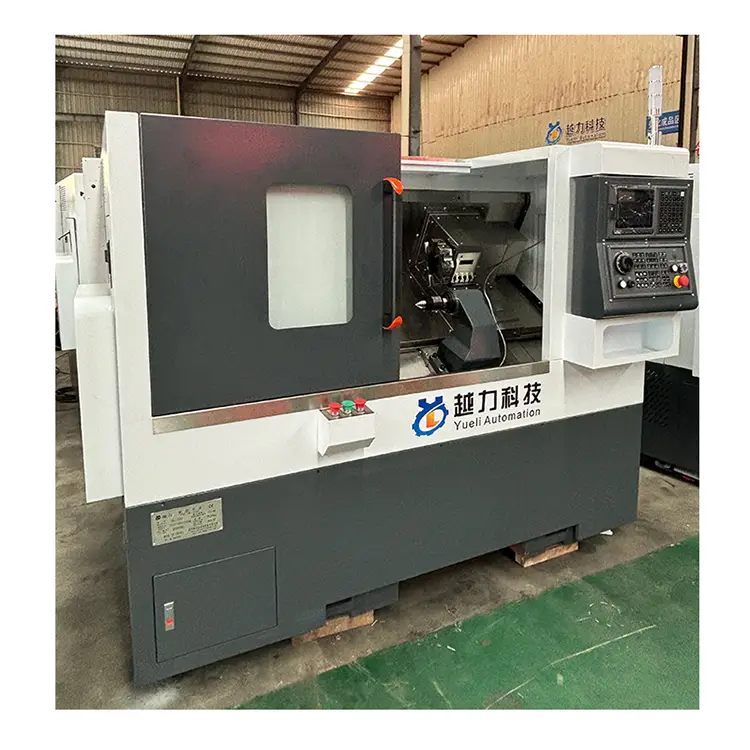

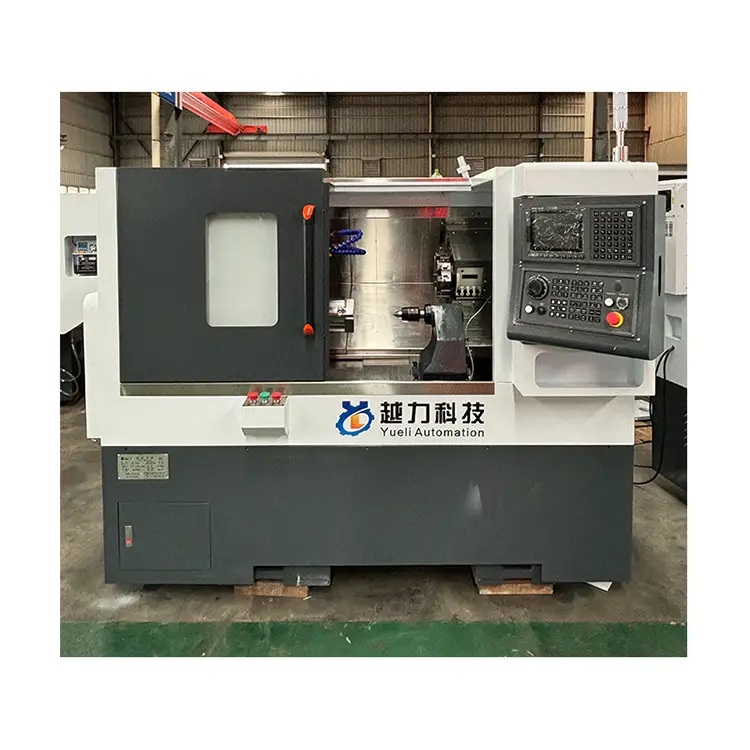

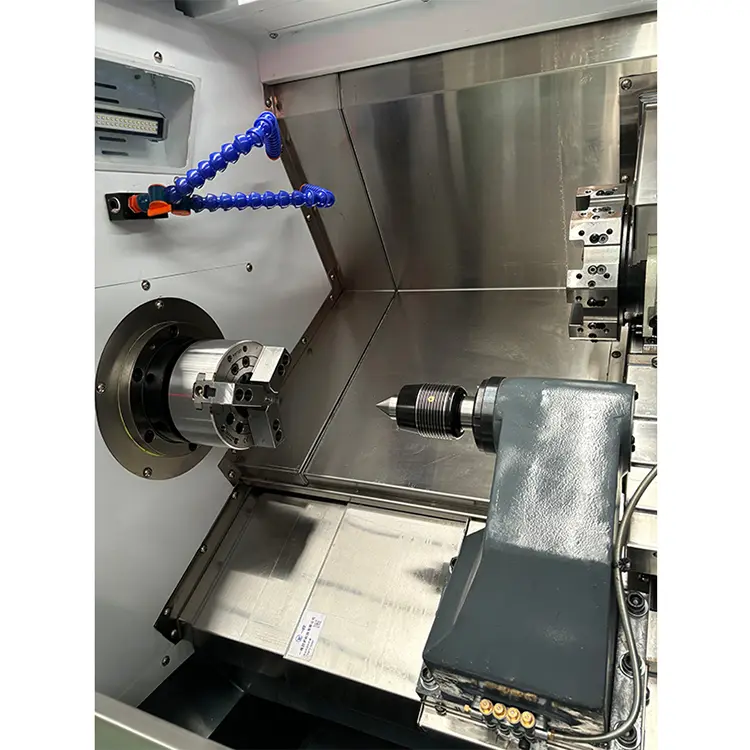

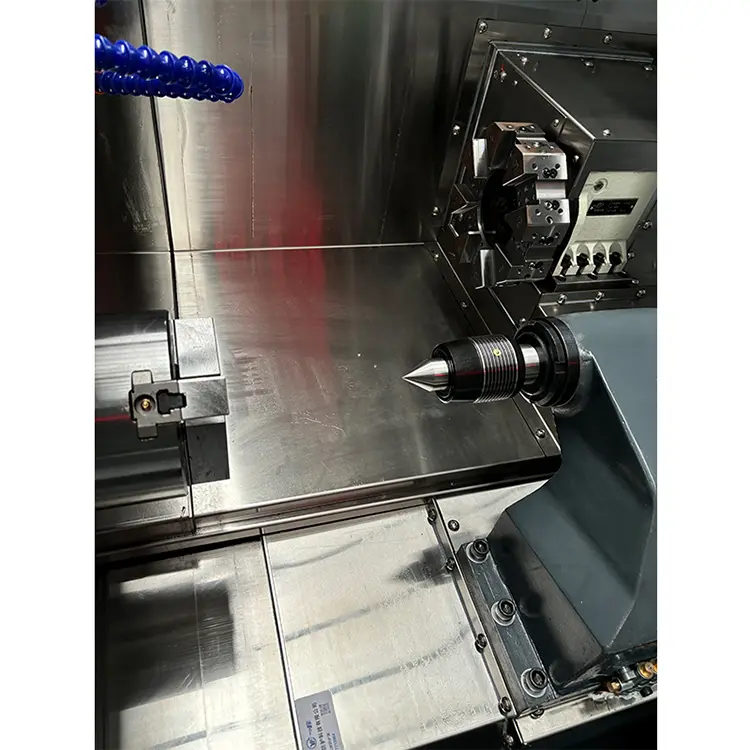

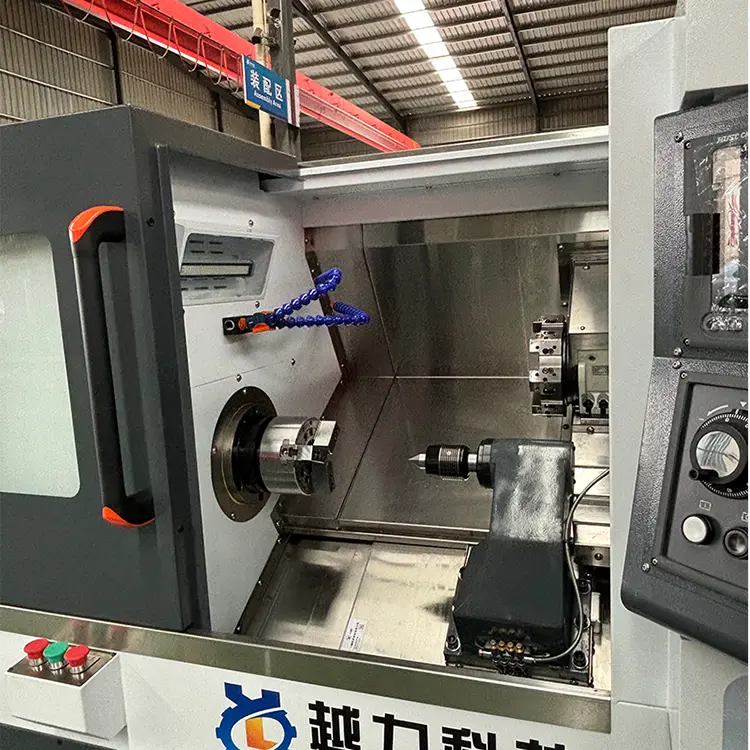

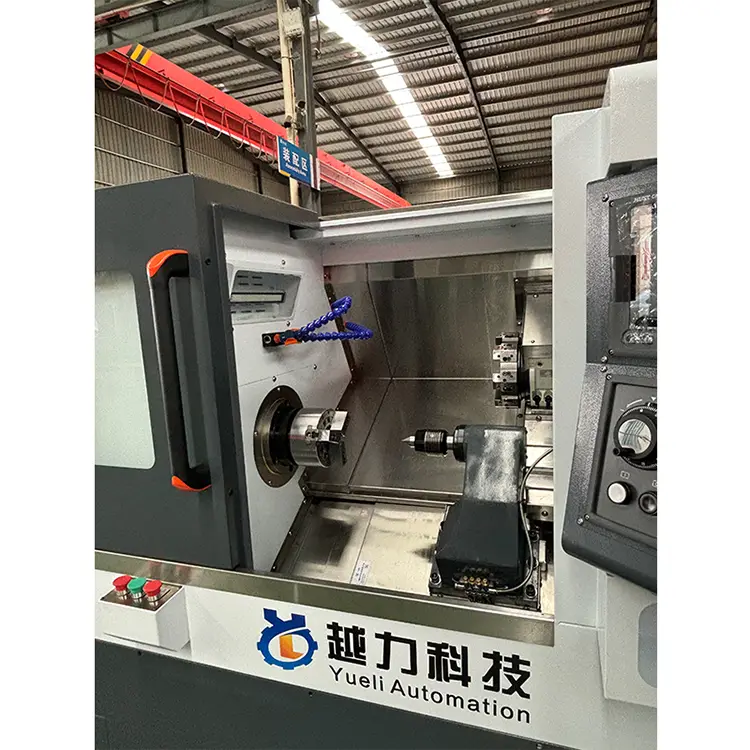

HL-45L tail top CNC lathe

Serial number	Project	Unit	Specifications (dimensions)	remarks
1	The size of the drag board countertop	mm	300*260
2	Z-axis travel	mm	460
3	X-axis travel	mm	200
4	Maximum rotation	mm	450
5	The distance from the center of the main shaft to the table surface of the drag plate	mm	63
6	The distance from the ground to the center of the main shaft	mm	1050
7	Maximum processing length	mm	380 (including chuck)	Take Acer LQ63/80-220-8T servo turret as an example
8	Maximum turning diameter	mm	375	Take Acer LQ63/80-220-8T servo turret as an example
9	Spindle model (spindle diameter)	mm	A2-5(170)
10	Spindle speed	RPM	0-5000
11	X.Z ball screw specifications		3210/3210
12	Specification of X guide rail		30 rollers	4 slider-normal
13	Z guide rail specification		30 rollers	4 slider-conventional lengthening
14	Connection method of the main X.Z motor		Sync tape / Direct connection / Direct connection
15	X.Z motor flange/stop	mm	130/110
16	Optical machine dimensions (length, width, height)	mm	187510211263
17	Weight	ton	About 1.8T	Does not contain the inner and outer cover tool tower spindle
18	Knife loading method		63 Servo turret

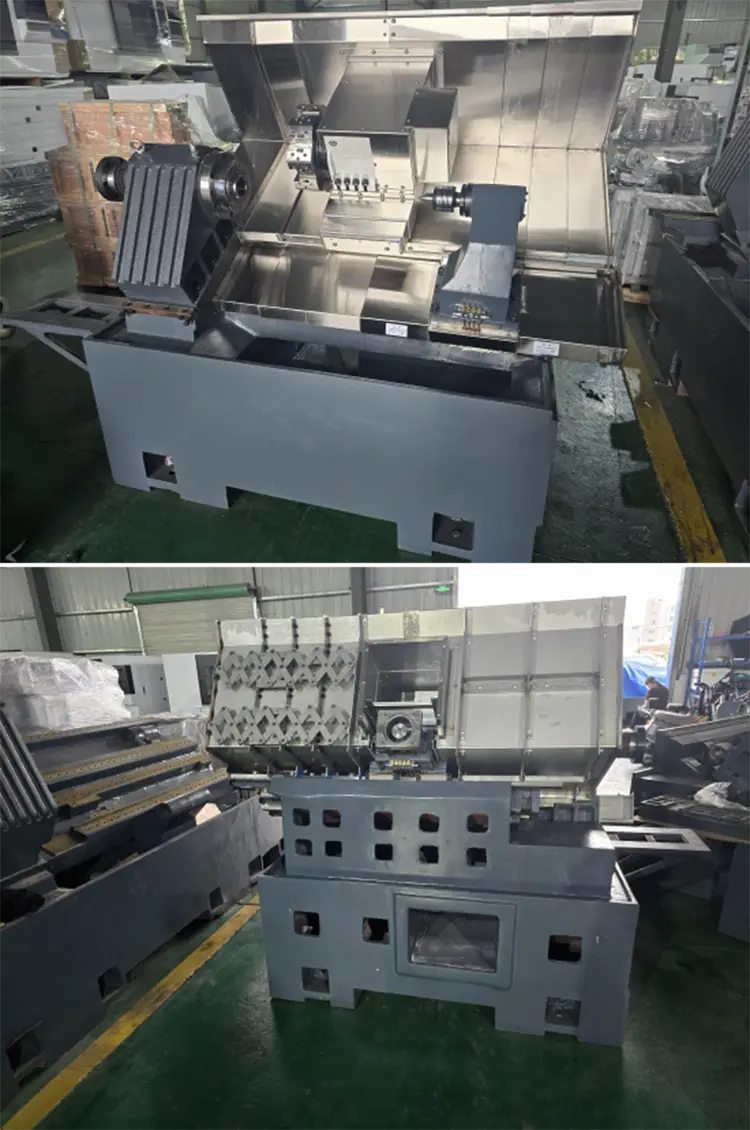

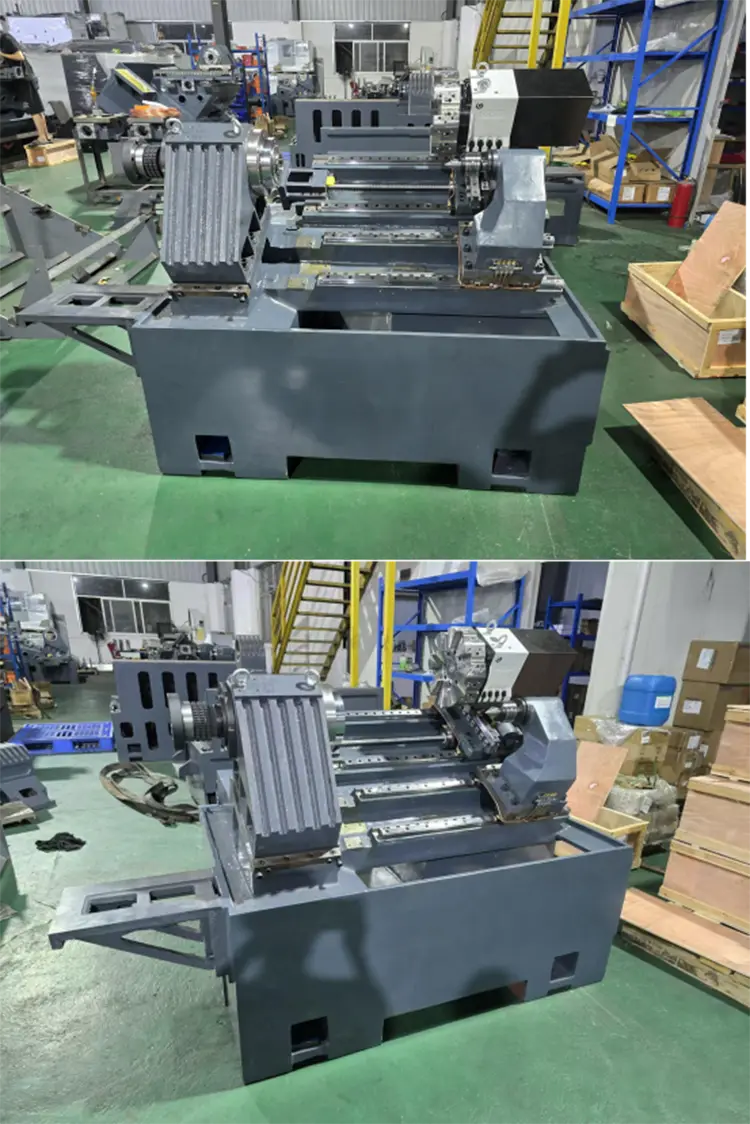

19	The form and slope of the bed		The bed is tilted at 30 degrees

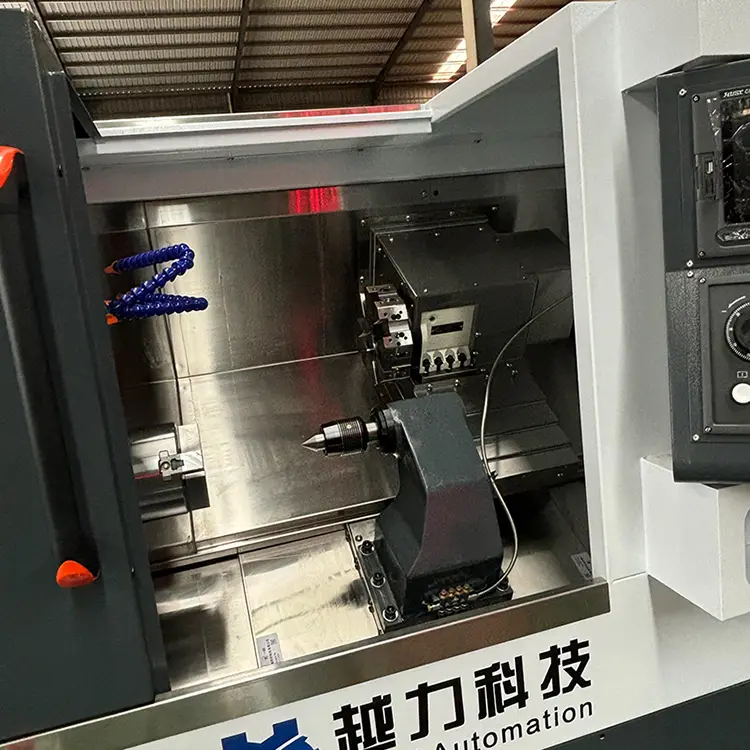

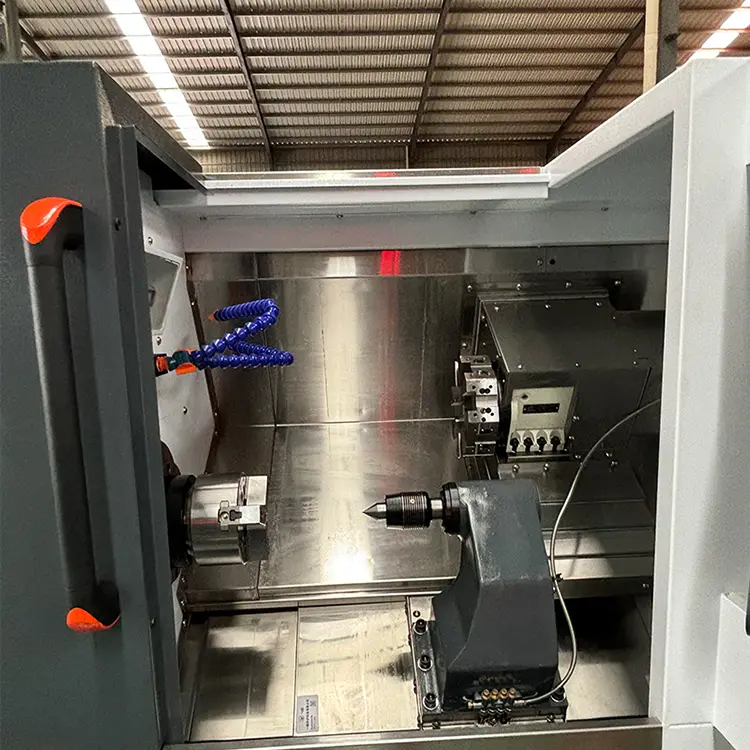

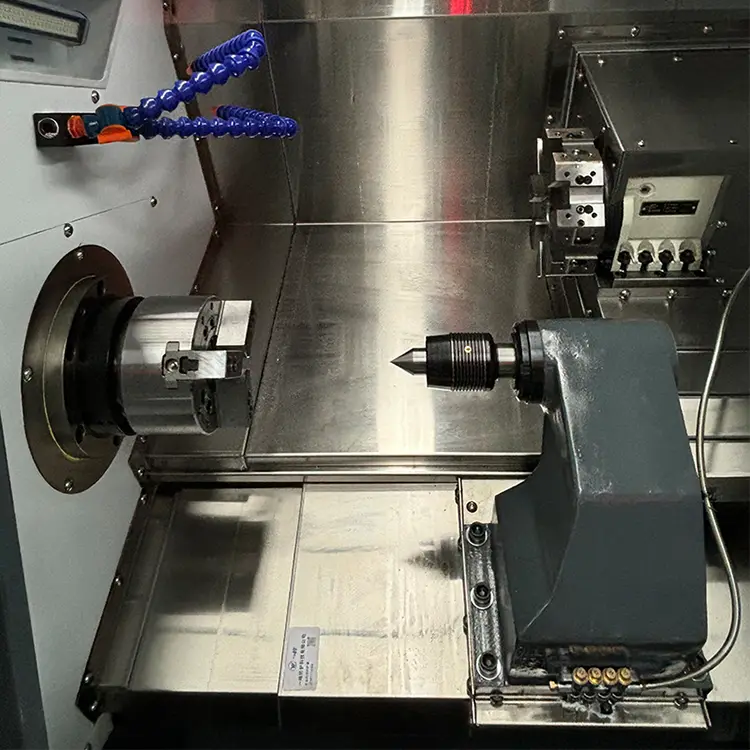

20	Tailseat		Wire rod tail seat
21	Tailseat propulsion method		hydraulic feed
22	Tail seat itinerary		500

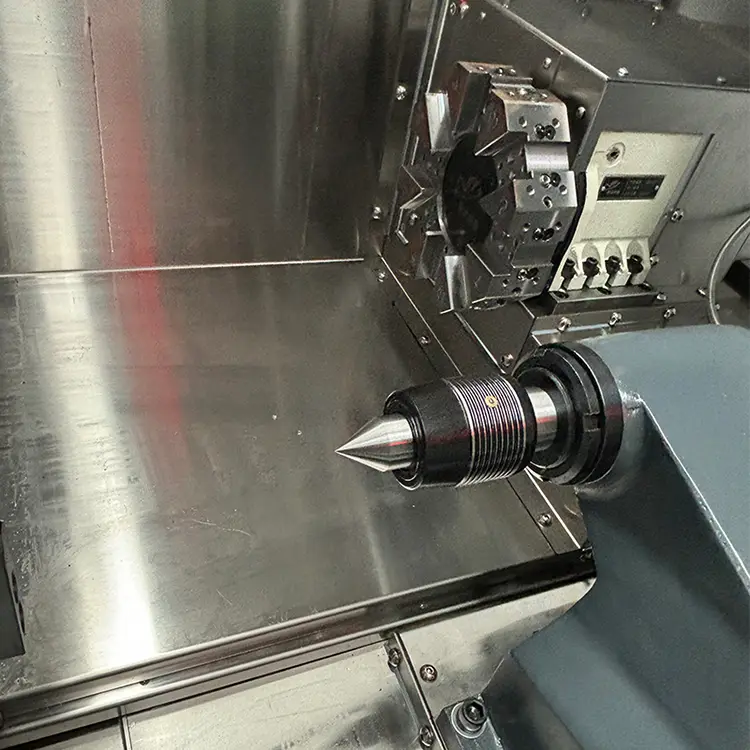

23	Tail-top model		Mossie 4

Model configuration
name of a part	Place of origin/specification	name of a part	Place of origin/specification
numerical control system	FANUCOi-TFPLUS(5)	X and Z axis servo motor + drive	FANUCOi
32 precision ball screw	Japan THK	Main shaft motor	Huarong 7.5KW
30 precision linear roller rail	Japan THK	Hydraulic rotary cylinder	Taiwan
Tubular precision spindle assembly	NSK Bearing, Japan	cooling	750W
hydraulic pressure station	Taiwan	power head	3 workstations 11.4N
Random appendix
name of a part	Model/Specification	name of a part	Model/Specification
Elastic clamps (for holding materials)	1 (random)	Car tool holder, drilling tool holder	Car tool holder 3, two drill tool holders
Drill pipe	ER20A has two long rods	Allen key	1 set
