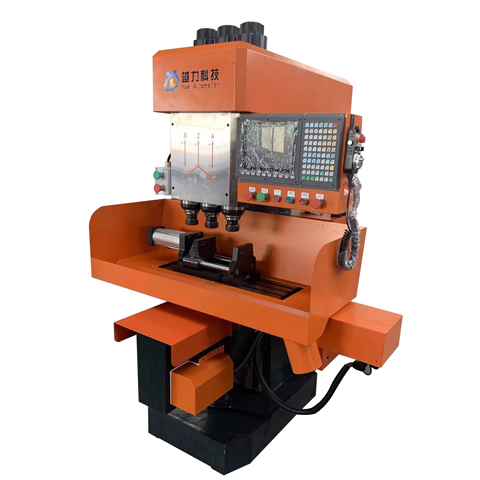

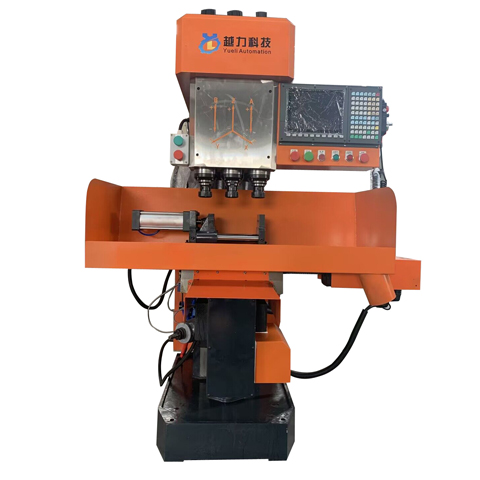

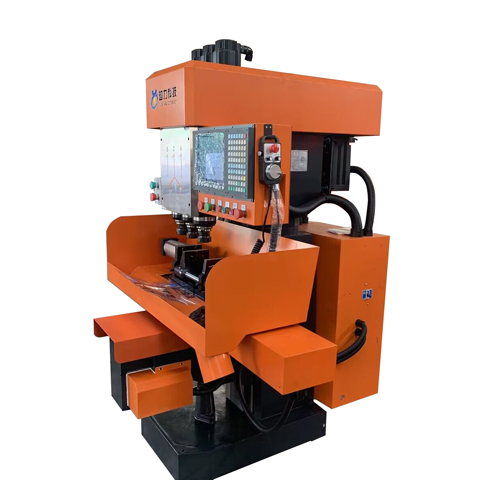

Vice Three Axis Drilling All Inone Machine

YueLi warmly welcome you to wholesale Vice Three Axis Drilling All Inone Machine from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices.

Send Inquiry

Product Description

Automatic equipment description

YueLi is Vice Three Axis Drilling All Inone Machine manufacturers and suppliers in China who can wholesale Vice Three Axis Drilling All Inone Machine, we can provide professional service and better price for you.

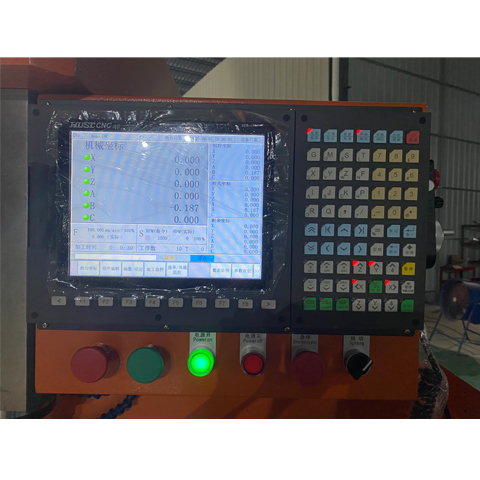

1. Taiwan Yitu numerical control system; Touch screen human-machine interface friendly dialogue, intuitive programming easy to operate. Ordinary people can learn quickly.

2. Three axis CNC functions are: three axes can be drilled, tapping, milling, silver ball screw feed, with 5.5KW servo main motor to achieve the system of steel tapping, three axes can tap, with inverter, can be stepless speed regulation, but also to ensure the accuracy of processing

3. Korea imported pneumatic components, guide rail by high-frequency grinding treatment, high wear resistance

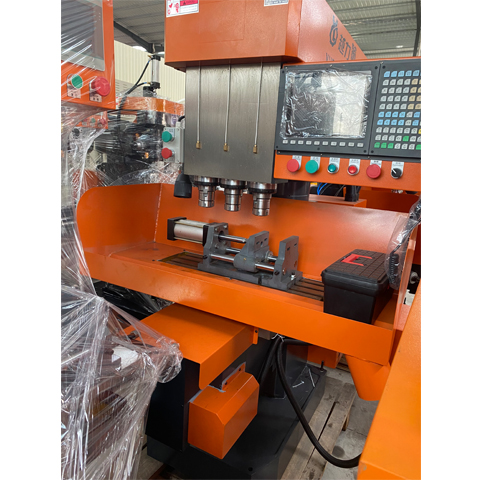

4. The table by the silver ball screw walking, manual adjustable drag, equipped with pneumatic fixture

5. Digital control positioning, repeated positioning accuracy is high, fast tool adjustment speed.

6. Fool type automatic cycle processing, automatic mold opening after processing. Convenient and fast, can achieve one person three machines, greatly reduce labor costs and labor intensity.



Equipment parameter



NO.

Name

Specification

Remark

1

X axis maximum travel (lead screw) mm

400


2

Y-axis maximum travel (lead screw) mm

160


3

Z1/Z2/Z3 axis maximum stroke mm

110


6

Z1/Z2/Z3 axis spindle spacing mm

120


7

Spindle sleeve diameter mm

105



8

The distance between the spindle end face and the work surface is mm

240-430

Custom heightening is possible

10

Spindle taper #

BT40


11

Maximum hole diameter

Ф50


13

Z1/Z2/Z3 axis speed (drilling) r/min

0-3000



15

Spindle motor power

5.5kw



16

Table size mm

800*230


18

Dimensions: length × width × height

1420×920×1800


19

Net weight of machine tool KG

1650KG




ZSK4150×3  Disposition



NO.

Name

Disposition

Quantity

Remark

1

Numerical control system

Etto

1 set



2

Lead screw

Shanghai Yin

4  channels

Three spindles, one table

3

Servo motor (drive)

Etto

4 channels

1.2KW

6

Master servo motor

Hua Hong

4 set

5.5KW
