Home > Products > Drilling Tapping Milling Machine > CNC Drilling Tapping Machine > Horizontal 12-Spindle CNC Turret Machine

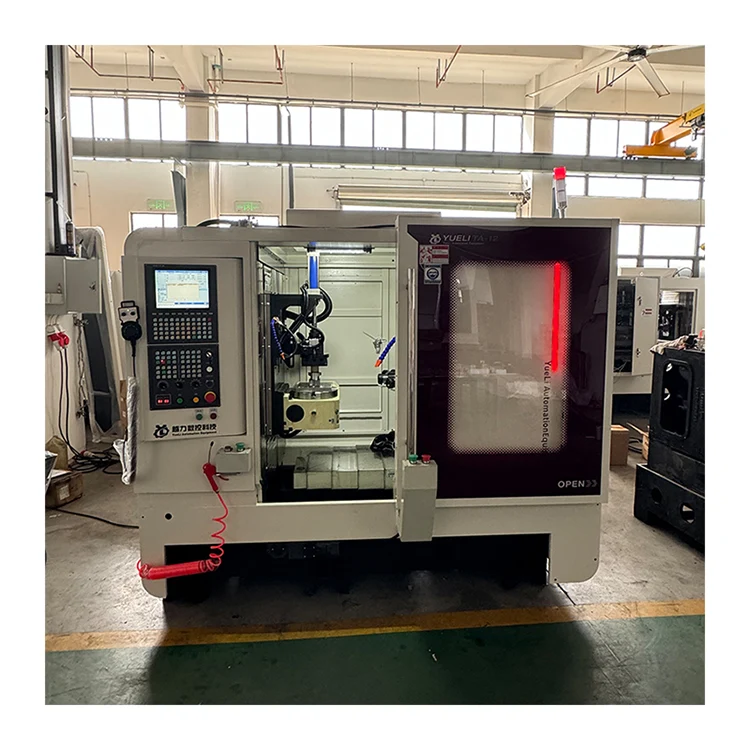

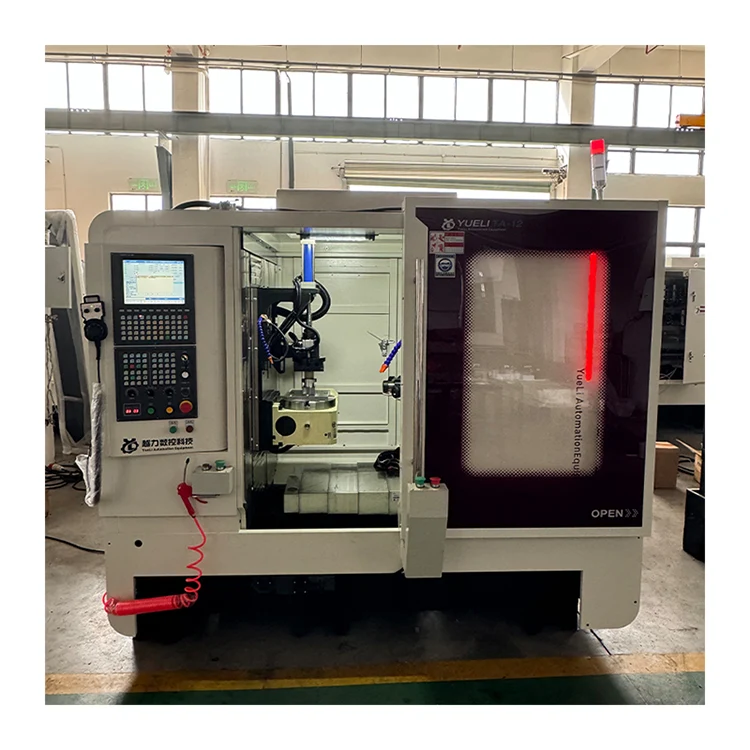

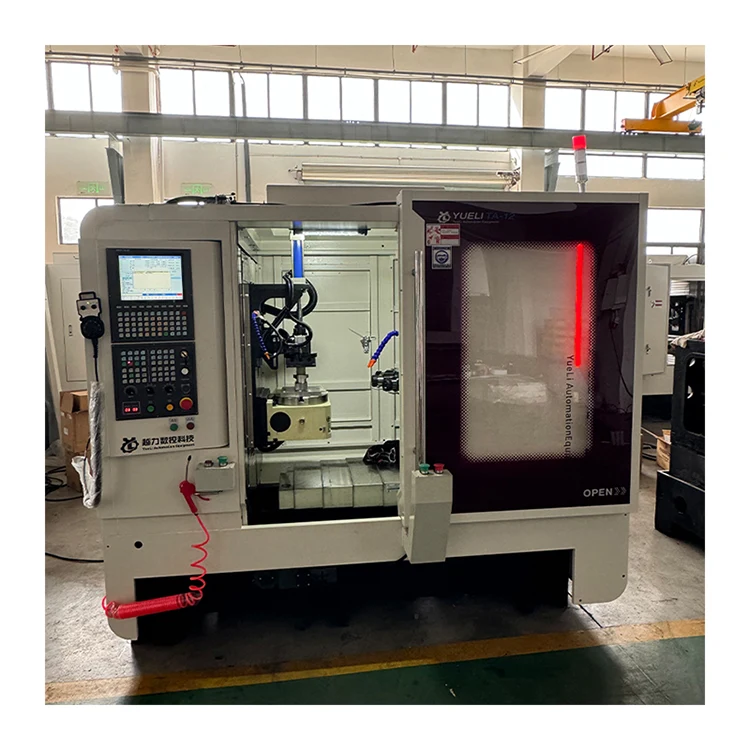

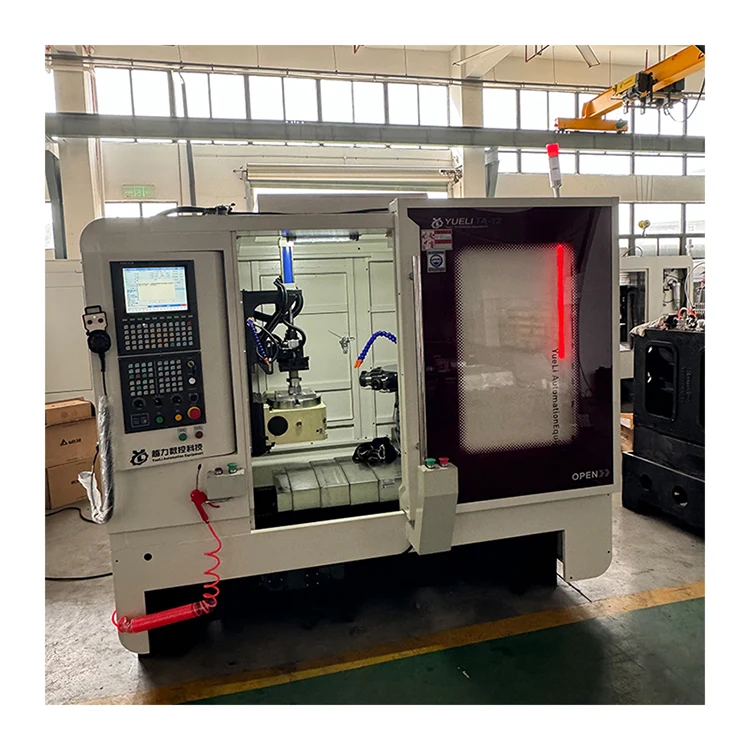

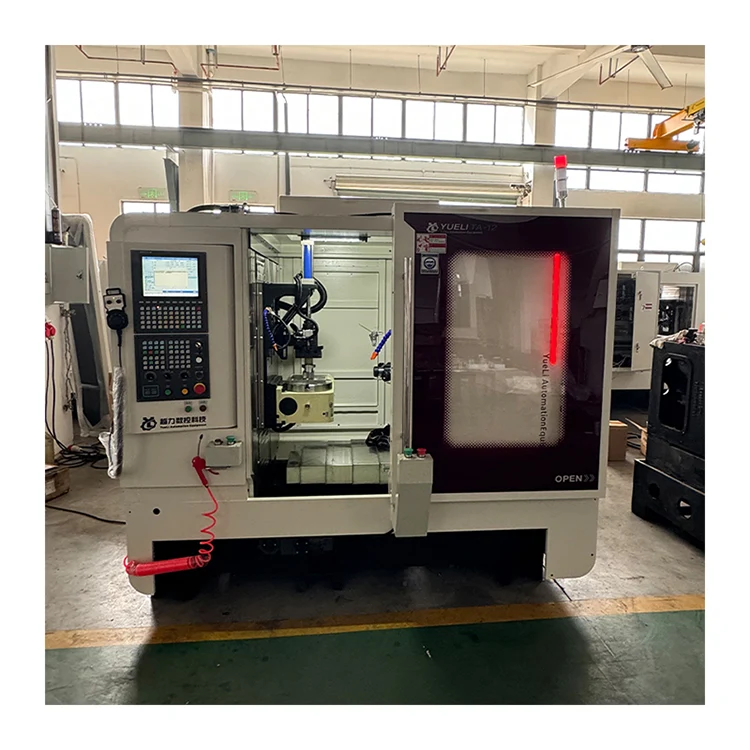

Horizontal 12-Spindle CNC Turret Machine
Yueli's Horizontal 12-Spindle CNC Turret Machine (internal model TA-12) is a horizontal CNC turret machine with 12 spindles. Equipped with Hust CNC system, 12-station rotary turret, 5.5KW-7.5KW spindle motor, ER40 spindle interface. Machine net weight is 3500KG.
Send Inquiry
Product Description
Horizontal 12-Spindle CNC Turret Machine (internal model TA-12) is manufactured by Quanzhou Yueli Automation Equipment Co., Ltd. It is suitable for the production and processing of large and medium-volume batches. The machine features smooth and generous appearance, simple and intuitive operation, and convenient adjustment. With CNC control, it offers higher automation, good reliability, and reduced labor intensity, enabling one person to operate and manage multiple machines. This product is an ideal high-efficiency anti-pollution processing equipment.
Product Introduction
Horizontal 12-Spindle CNC Turret Machine is suitable for the production and processing of large and medium-volume batches. The appearance of the machine is smooth and generous, the operation is simple and intuitive, and the adjustment is convenient. The CNC control is adopted, the degree of automation is higher, the reliability is good, the labor intensity of the operator is reduced, and the operation and management of one person and multiple machines can be realized.
Technical Configuration Parameters
The following components and specifications apply to the Horizontal 12-Spindle CNC Turret Machine.
|
No. |
Component |
Specification |
Qty |
Brand |
|
1 |
Pedestal |
HT250, after reheating and aging treatment |
1 |
Yueli |
|
2 |
Column |
HT250, after reheating and aging treatment |
1 |
Yueli |
|
3 |
The 4th axis |
HT250, after reheating and aging treatment |
1 |
Yueli |
|
4 |
Workbench |
HT250, after reheating and aging treatment |
1 |
Yueli |
|
5 |
Spindle bearing |
|
8 |
C&U |
|
6 |
X axis servo motor |
2.0KW, max stroke 350mm, max speed 30m/min |
1 |
|
|
|
X axis ball screw |
R32 10 |
1 |
|
|
|
X axis linear guide |
RGH30HA |
2 |
|
|
7 |
Y axis servo motor |
1.5KW, max stroke 400mm, max speed 30m/min |
1 |
|
|
|
Y axis ball screw |
R32 10 |
1 |
|
|
|
Y axis linear guide |
RGH30HA |
2 |
|
|
8 |
Z axis servo motor |
3.0KW, max stroke 300mm, max speed 30m/min |
1 |
|
|
|
Z axis ball screw |
R32 10 |
1 |
|
|
|
Z axis linear guide |
RGH30HA |
2 |
|
|
9 |
Workbench size |
300×300mm |
1 |
|
|
10 |

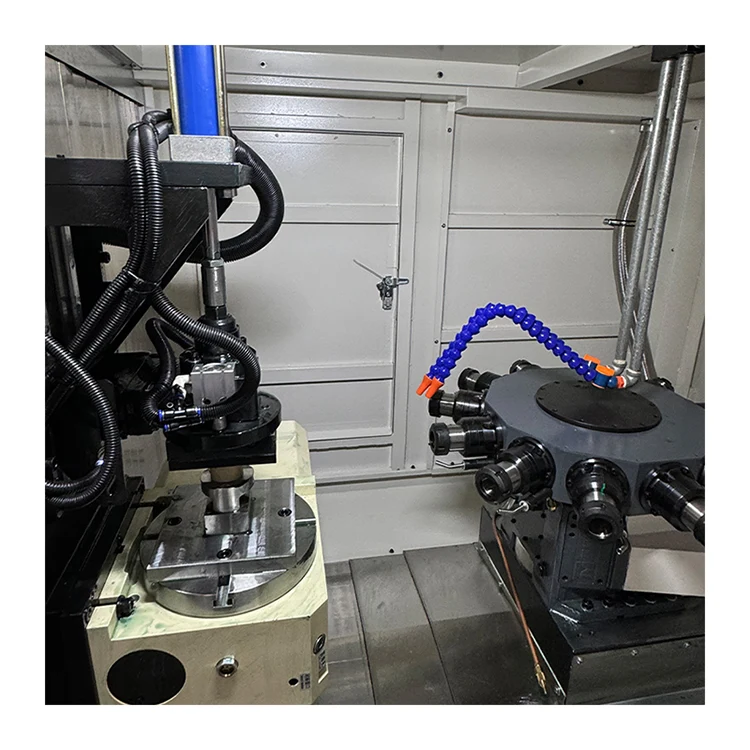

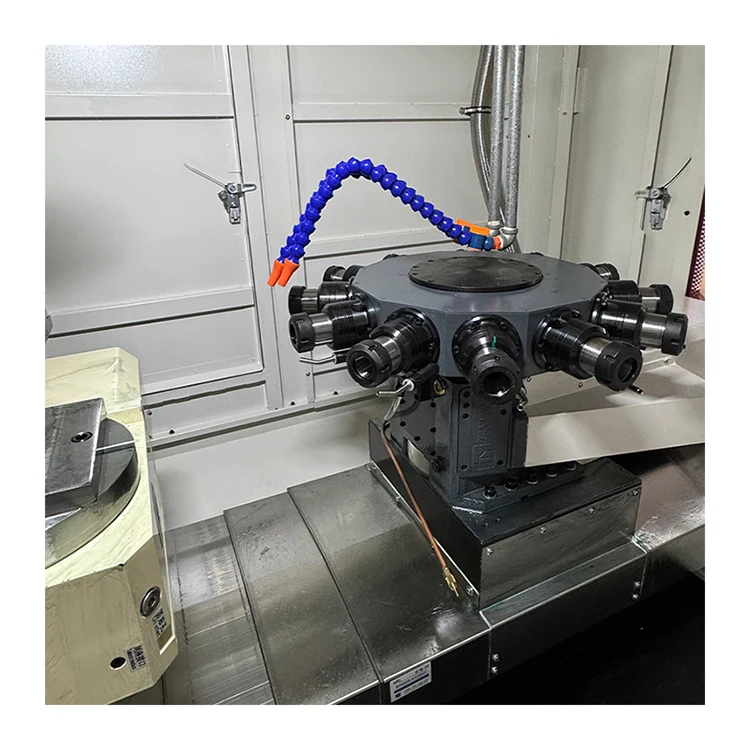

Rotary turret |
12 spindles |
1 |
|
|
11 |
Servo spindle motor power |
5.5KW-7.5KW |
|
Optional |
|
12 |
Spindle revolutions |
0-3000 rpm |
|
|
|
13 |
Spindle interface |
ER40 |
|
|
|
14 |
Drilling capacity (copper through hole) |
Ф60mm |
|
|
|
15 |
Max tapping (copper) |
50×3mm |
|
|
|
16 |
Spindle turret tool change time |
0.8 sec / 180° |
|
|
|
17 |
Tool change motor |
750W |
|
Servo tool change |
|
18 |
Max tool diameter |
120mm |
|
|
|
19 |
Rotate the 4th axis |
YT200R |
|
|
|
20 |
Dimensions (L×W×H) |
2200×1765×1922mm |
|
With sheet metal cover |
|
21 |
Net weight |
3500KG |
|
|
|
22 |
Max tool length (spindle end face) |
200mm |
|
|
|
23 |
Shield |
Stainless steel telescopic cover |
|
|
|
24 |
CNC System |
Hust |
1 |
Taiwan |
|
25 |
Hydraulic system |
Phoenix |
1 |
Taiwan |
|
26 |
Chip removal system |
Spiral chip removal |
1 |
|
|
27 |
Servo motor |
Hust |
5 |
|
|
|
Spindle servo |
Alpha 5.5KW |
1 |
|
|
|
Electronic control system |
Shihlin contactors, Omron relays, Mingwei power supplies |
1 set |
|
|
|
Air switch |
|
|
Shihlin |
|
|
Contactor |
|
|
ABB |
|
|
Thermal relay |
|
|
ABB |
|
|
Button |
|
|
Schneider |
|
|
Power switch |
|
|
Delta |
|
|
Pneumatic components |
|
|
Taiwan AirTAC |
Main Technical Parameters
The following technical parameters apply to the Horizontal 12-Spindle CNC Turret Machine.
|
No. |
Category |
Specification |
Remark |
|
1 |
Max stroke of X axis |
350mm |
|
|
2 |
Max stroke of Y axis |
400mm |
|
|
3 |
Max stroke of Z axis |
300mm |
|
|
4 |
X/Y/Z fastest moving speed |
30 m/min |
|
|
5 |
Number of spindle axes |
12 spindles |
|
|
6 |
Max drilling diameter |
60mm |
Copper |
|
7 |
Max tapping diameter |
M50×3mm |
|
|
8 |
Spindle revolutions |
0-3000 rpm |
|
|
9 |
Hole positioning accuracy |
0.008mm |
|
|
10 |
Repeat positioning accuracy |
0.008mm |
|
|
11 |
Machine dimensions |
2200×1765×1922mm |
|
|
12 |
Machine weight |
3500KG |
|
|
13 |
CNC system |
Hust |
|
|
14 |
Hydraulic system |
Phoenix |
|
|
15 |
Chip removal system |
Spiral chip removal |
|
|
16 |
Ball screw / Linear slide |
Taiwan Hiwin |
|
|
17 |
Servo motor |
Hust |
|
|
18 |
Spindle servo |
Alpha |
|
|
19 |
AC contactor |
Siemens |
|
|
20 |
Relay |
Omron |
|
|
21 |
Hydraulic vise |
Yueli |
|
Machine Structure and Performance
The Horizontal 12-Spindle CNC Turret Machine has the following structural and performance features.
· Simple machining center. Program control uses Taiwan Hust control system with detection function to avoid damage to tap or tool due to solenoid valve or cylinder failure. Human-machine friendly dialogue for easy operation.
· Suitable for large and medium batch parts processing. One-time clamping completed. High efficiency and good precision.
· Tapping mechanism does not need to replace lead screw drive. Pitch is standard. Beijing CTB main servo motor with own frequency conversion improves thread surface roughness and ensures accuracy.
· Independent research and development of power head components. Precision grinding. Good wear resistance. Long service life.
· Hust CNC system allows setting feed speed according to needs. After long-term use, lead screw wears out, system has tool compensation function.
· Each motorized sliding surface uses centralized automatic lubrication device to ensure machine tool service life.
· Sliding table movement driven by servo motor. Multiple coordinates can be set digitally. High positioning accuracy. Low vibration. Fast response.
· During processing, workpiece status displayed on touch screen. Alarm function for faults.
· Fully enclosed protection ensures personal safety and improves processing environment.
Main Structure Components
The Horizontal 12-Spindle CNC Turret Machine consists of the following main structural components.
· Column: 1 set
· The 4th axis: 1 set
· Base: 1 set
· Electronic system: 1 set
· Hydraulic vise: 1 set
· Chip removal system: 1 set
Electrical System
The Horizontal 12-Spindle CNC Turret Machine uses the following electrical components.
· Solenoid valve: Taiwan AirTAC. Good stability. Air pressure cannot be lower than 0.5MPa.
· AC contactor: Schneider. Good stability.
· Relay: Omron. Good stability.
Lubrication System
Each power head of the Horizontal 12-Spindle CNC Turret Machine is lubricated by butter, which is easy to use and operate, ensuring the service life of the lubricating surface.
|
No. |
Component |
Lubricating Oil |
Lubrication Cycle |
|
1 |
Automatic lubrication |
30# machinery oil |
Cannot be lower than standard surface |
|
2 |
Slide surface |
30# machinery oil |
Adjust as needed |
|
3 |
Bearing |
ZL-2 Lithium Grease |
|
|
4 |
Hydraulic oil |
46# anti-wear hydraulic oil |
|
Standard Accessories and Documents
The Horizontal 12-Spindle CNC Turret Machine comes with the following accessories and documents.
· Tool box included: Double-ended wrench 17-19, Hexagonal wrench 1.5-10 (1 set).
· Random documents: System specification, operation manual, driver instruction (1 copy each).
Frequently Asked Questions
What is the spindle interface and maximum drilling capacity?
The spindle interface is ER40. Maximum drilling diameter is 60mm for copper through holes, and maximum tapping diameter is M50×3mm for copper.
How many spindles does the turret have?
The rotary turret has 12 spindles. Tool change time is 0.8 seconds per 180 degrees.
What are the X, Y and Z axis travels?
X axis travel is 350mm, Y axis travel is 400mm, and Z axis travel is 300mm. Maximum moving speed for all axes is 30 m/min.
What is the CNC system and spindle motor power?
The machine uses the Taiwan Hust CNC system with a servo spindle motor power of 5.5KW to 7.5KW (optional).
What is the machine weight and dimensions?
Machine dimensions are 2200×1765×1922mm with sheet metal cover, and net weight is 3500KG.
Quanzhou Yueli Automation Equipment Co., Ltd. – Nan'an, Fujian, China – Founded 2013
