CNC Drilling Tapping Milling Machine with 4-Axis

What is CNC Drilling Tapping Milling Machine with 4-Axis?

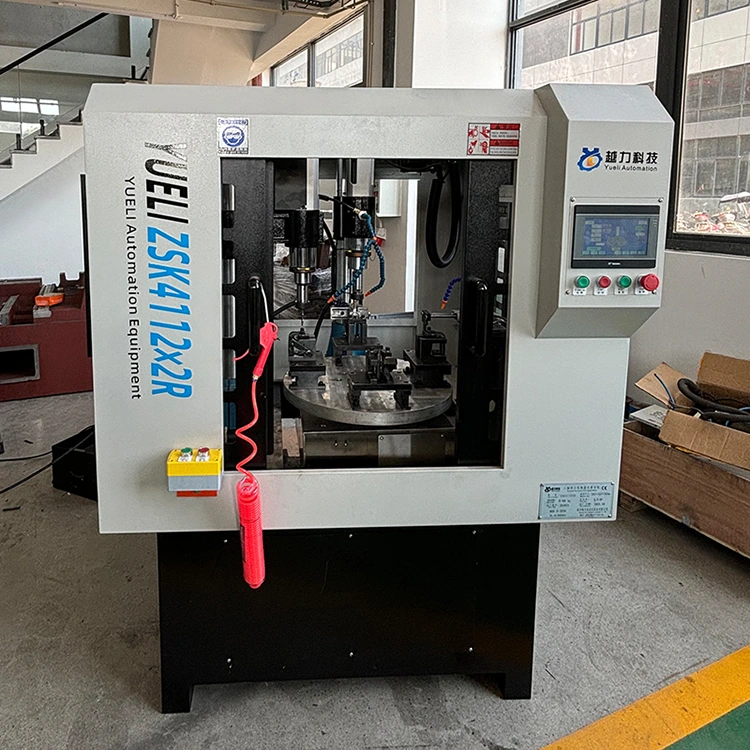

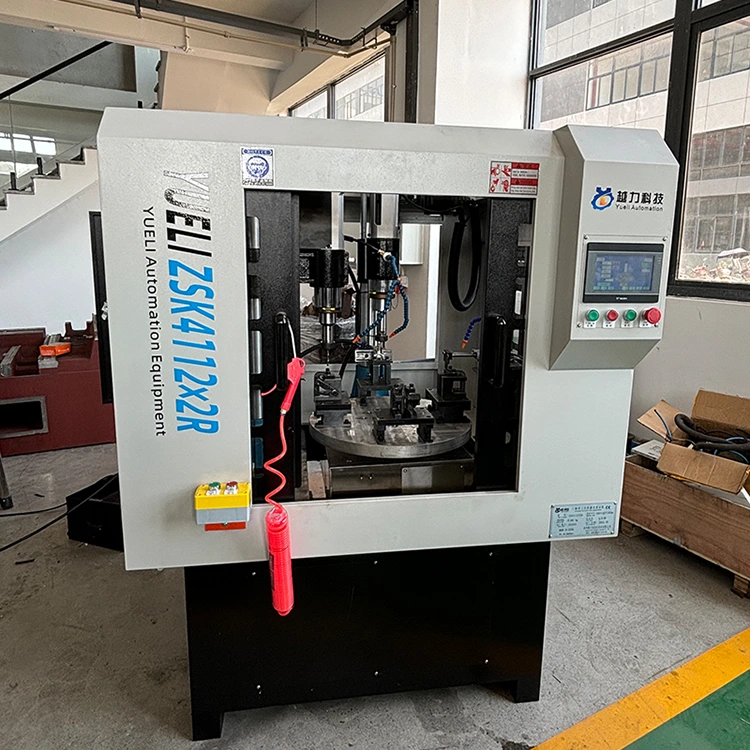

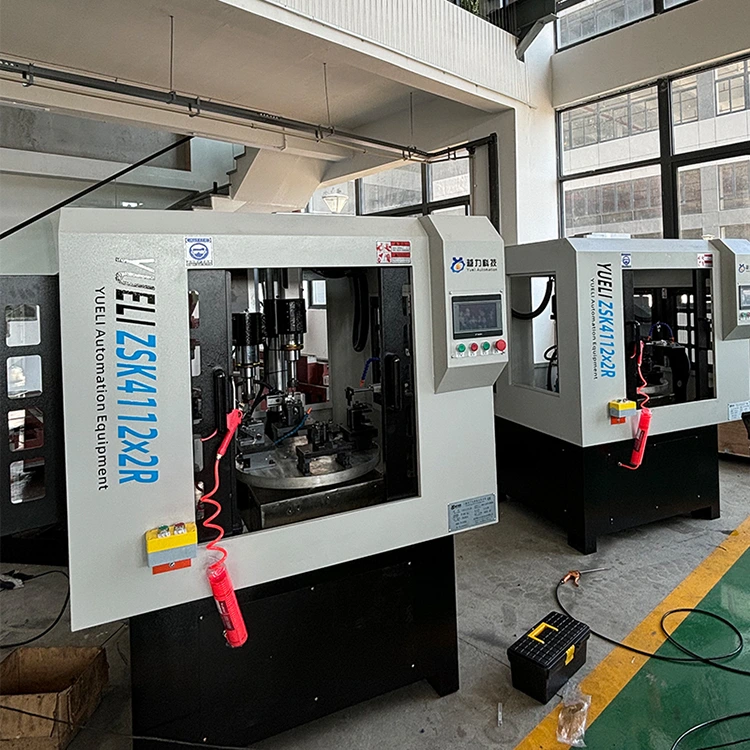

Yueli factory’s  CNC Drilling Tapping Milling Machine with 4-Axis is a fully integrated vertical dual-spindle rotary indexing system designed for medium to large batch production. It combines drilling, tapping, and milling in one compact platform, improving productivity while reducing labor costs.

Core Features and Advantages

Precision & Stability

· High machining accuracy up to IT5–IT6 grade

· Surface finish Ra0.8–1.6 μm

· Rigid welded structure with optimized reinforcement design

· Stable performance with minimal thermal deformation

Advanced Automation

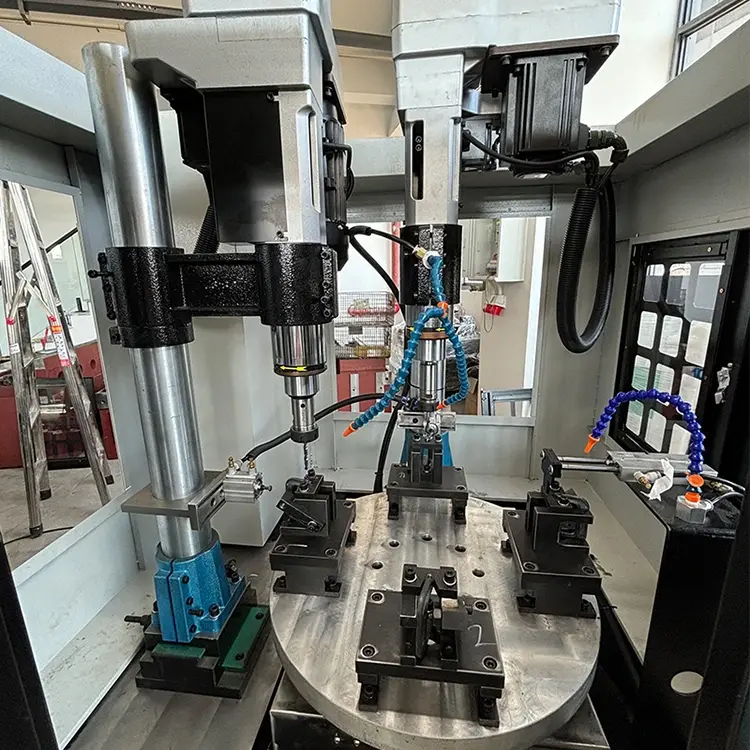

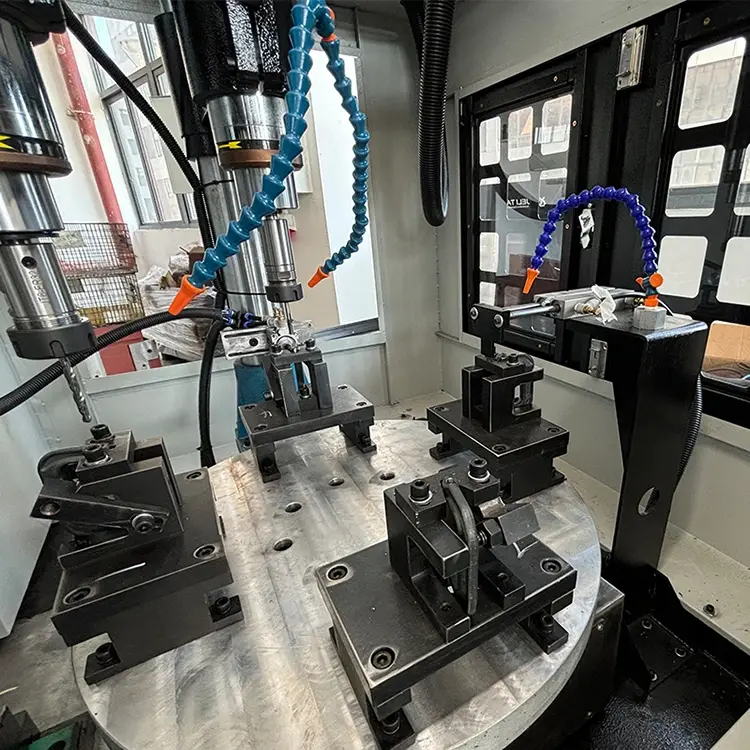

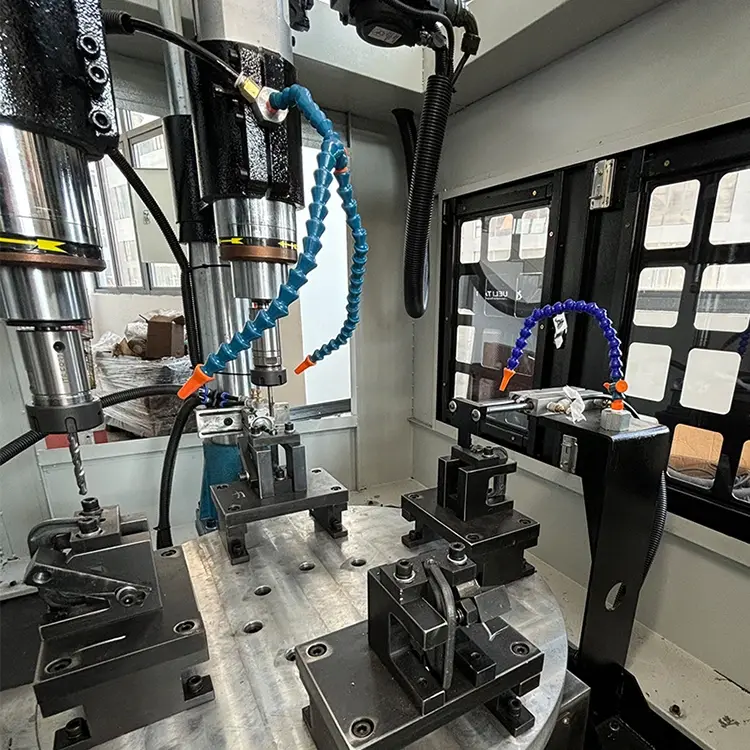

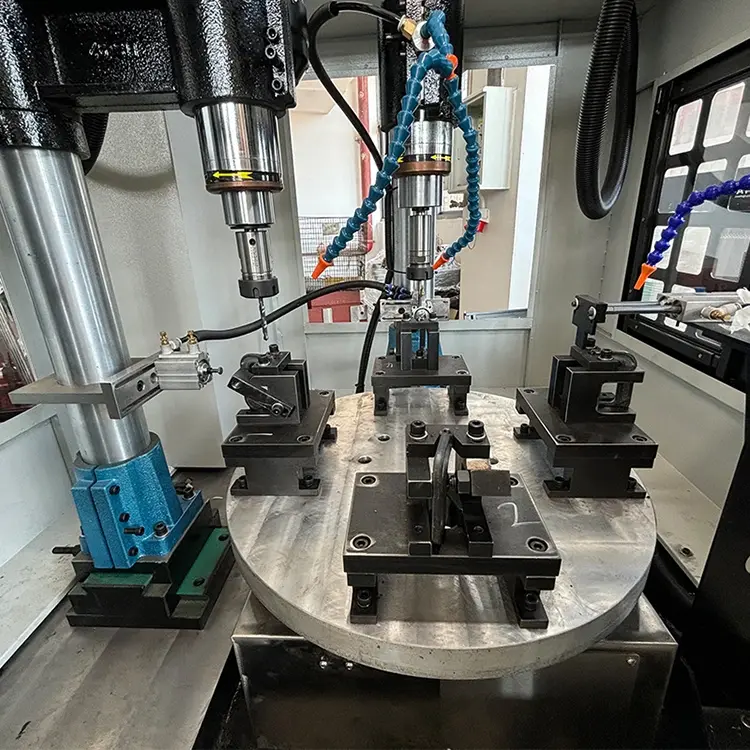

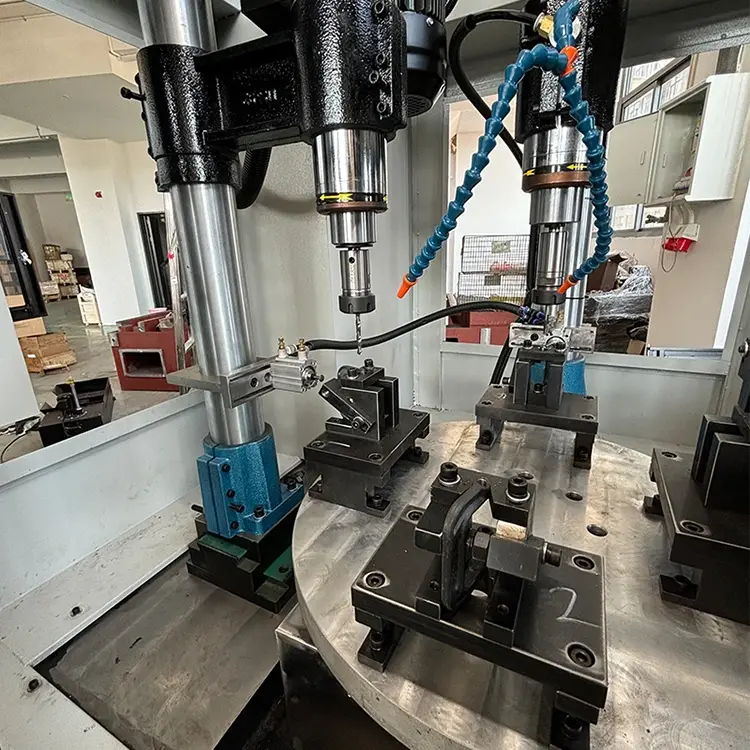

· 4-station rotary table enables continuous processing

· Dual spindle configuration improves cycle efficiency

· PLC control system with intuitive touchscreen interface

· Supports unattended or one-operator multi-machine management

Flexible & Powerful Performance

· Spindle speed adjustable from 0–3000 rpm

· Max drilling diameter: 16 mm (steel)

· Max tapping capacity: M18

· ER32 tool clamping for wide tool compatibility

Safe & User-Friendly Design

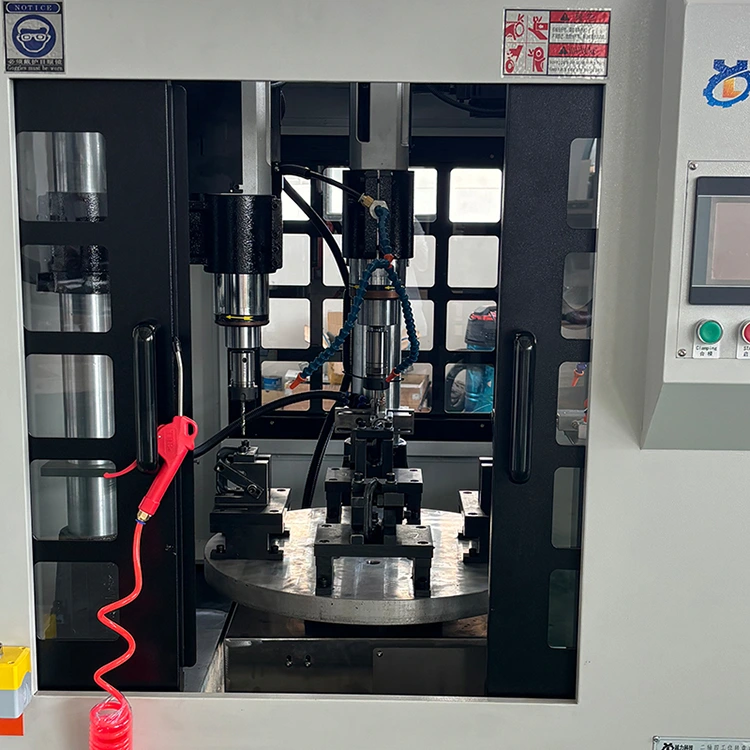

· Fully enclosed guarding system for coolant and chip protection

· Emergency stop and multi-level electrical protection

· Clear HMI interface for easy programming and monitoring

Applications & Target Users

Suitable For

· Automotive parts manufacturing

· Hardware and metal component processing

· Batch production workshops

· OEM and precision machining factories

Usage Scenarios

· Multi-hole drilling and tapping operations

· Repetitive high-volume machining

· Precision component manufacturing with tight tolerances

What Makes It Different

· Compact structure with larger internal working space

· Rotary indexing accuracy ≤ ±0.03° ensures repeatability

· Independent cutting control for each power head

· Optimized chip removal system for cleaner operation

This CNC Drilling Tapping Milling Machine with 4-Axis enhances workflow efficiency, reduces downtime, and ensures consistent product quality, making it a reliable investment for modern manufacturing.

FAQ

Q1: What materials can the CNC Drilling Tapping Milling Machine with 4th Axis process?
A: It is suitable for steel, aluminum, and general metal components. With proper tooling, it can also handle various alloys in batch production environments.

Q2: How does the 4th axis improve productivity?
A: The rotary table allows simultaneous loading/unloading and machining, reducing idle time and increasing overall throughput significantly.

Q3: Is the CNC Drilling Tapping Milling Machine with 4th Axis easy to operate?
A: Yes, it features a user-friendly touchscreen interface and PLC control system, enabling quick setup, simple programming, and minimal operator training.

Q4: What maintenance is required for long-term performance?
A: Regular lubrication, cleaning of chips and filters, inspection of belts and electrical components, and periodic system checks ensure stable operation and extended service life.
