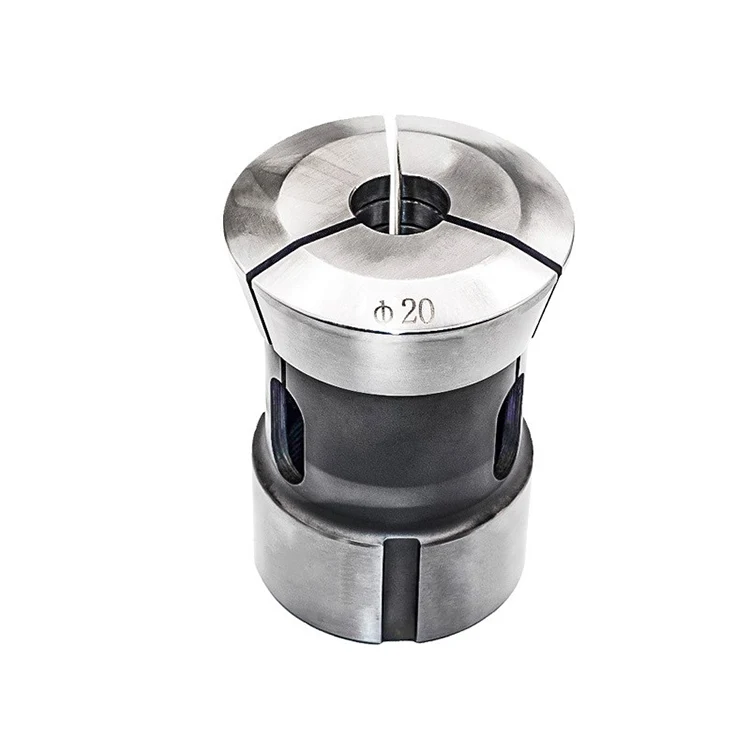

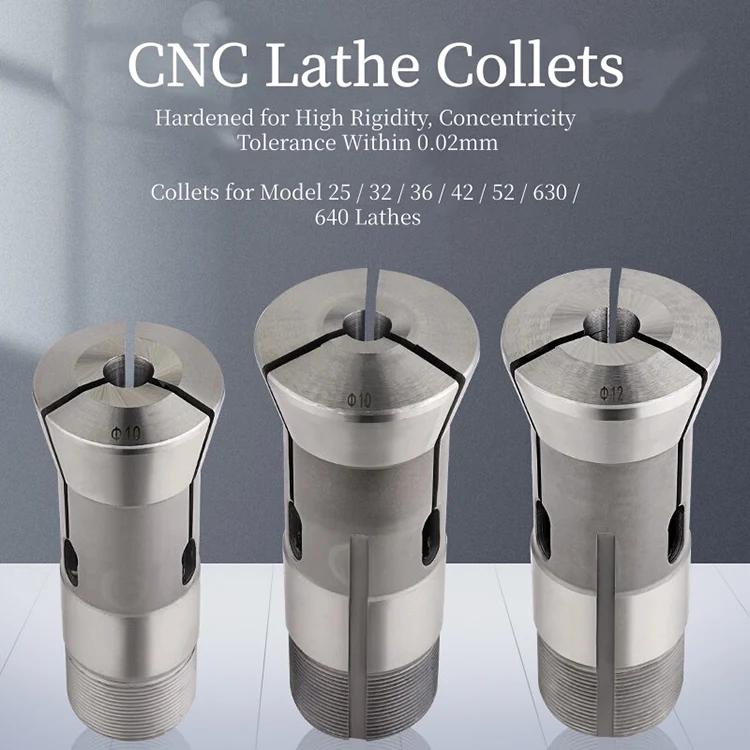

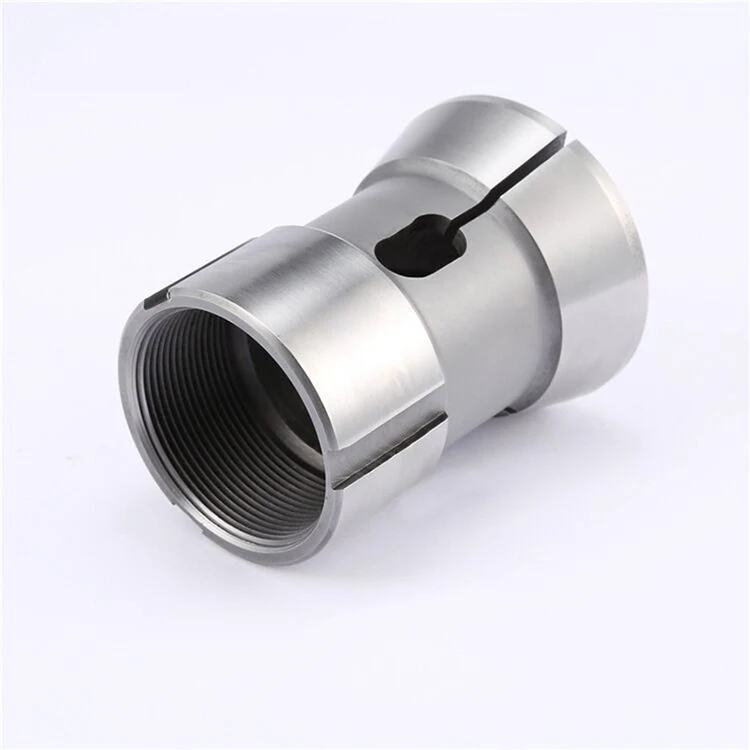

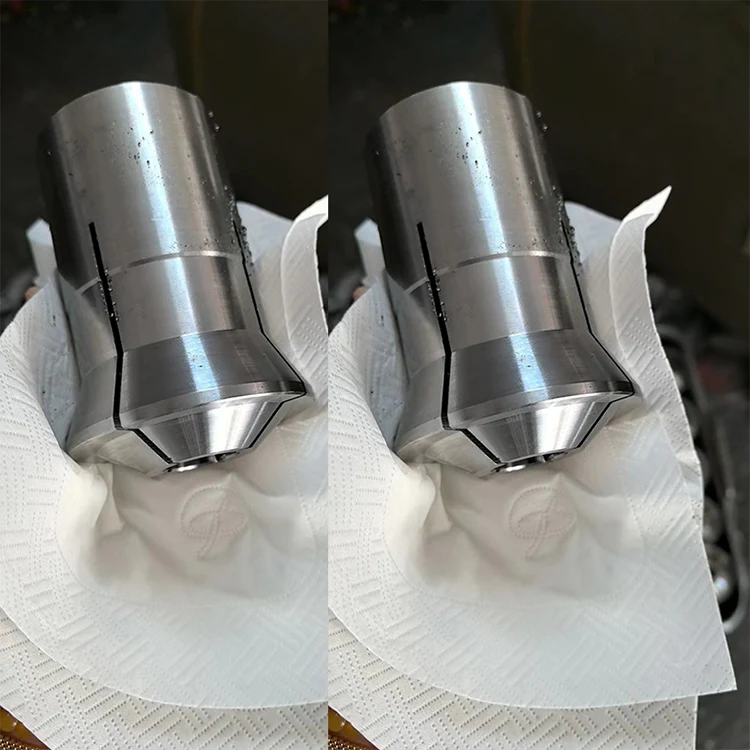

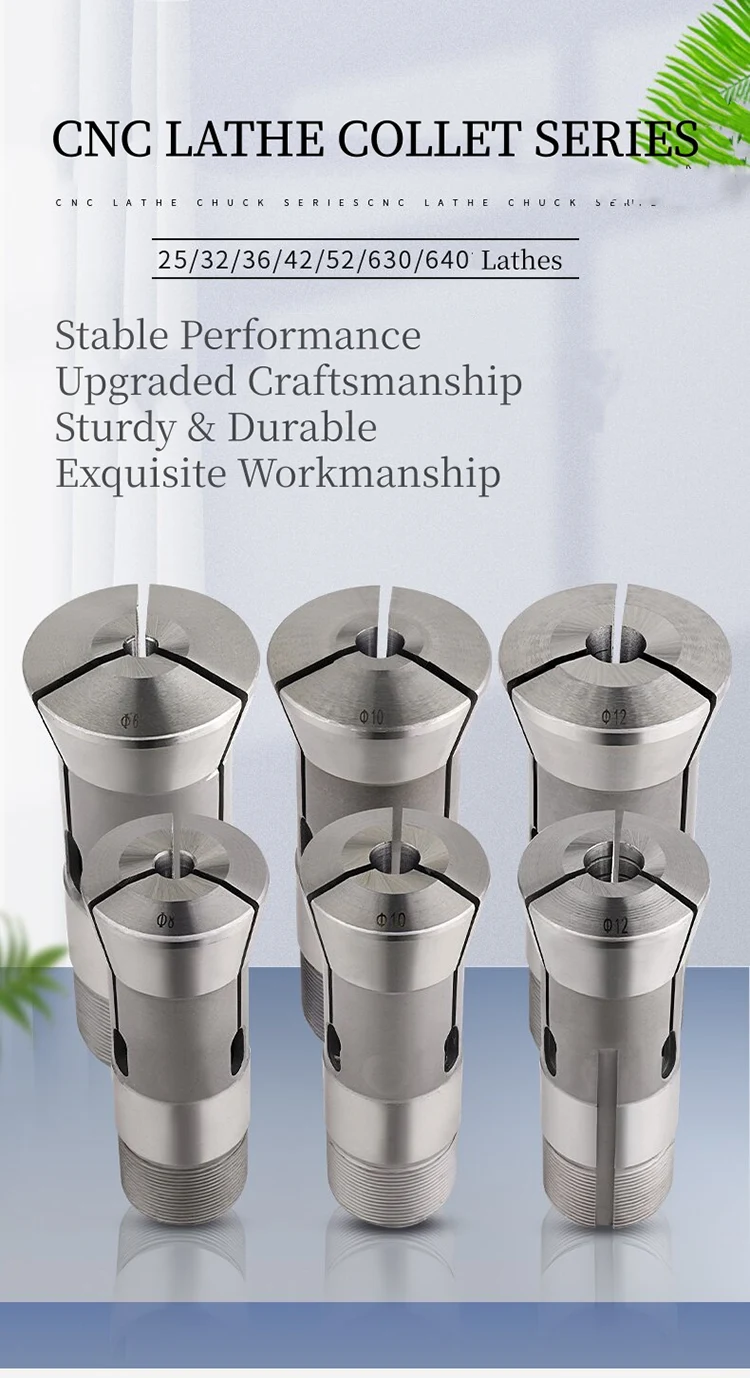

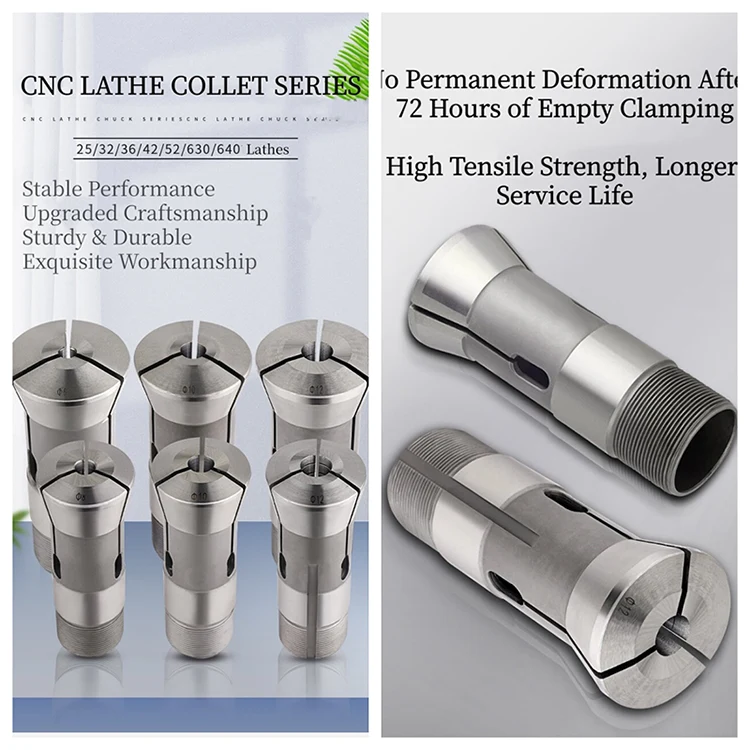

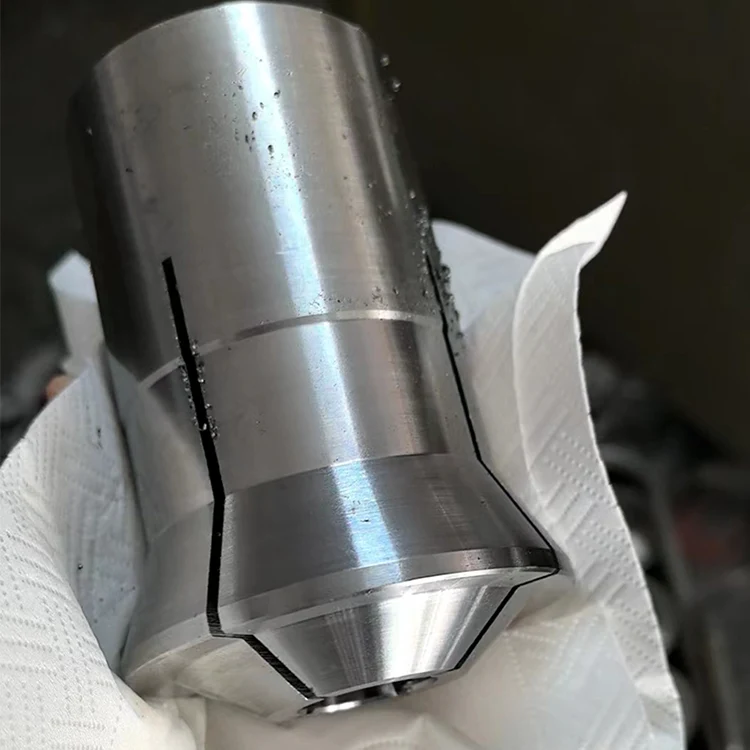

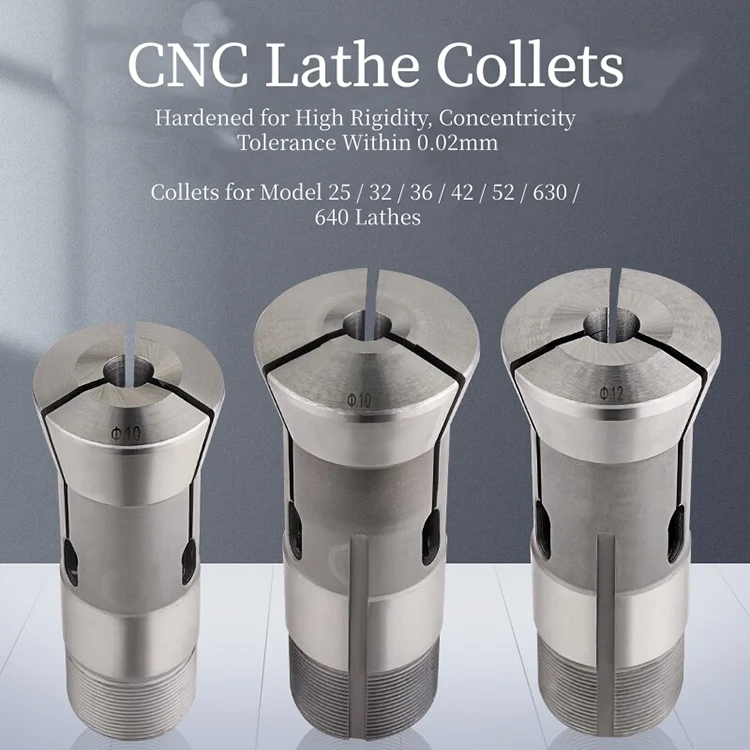

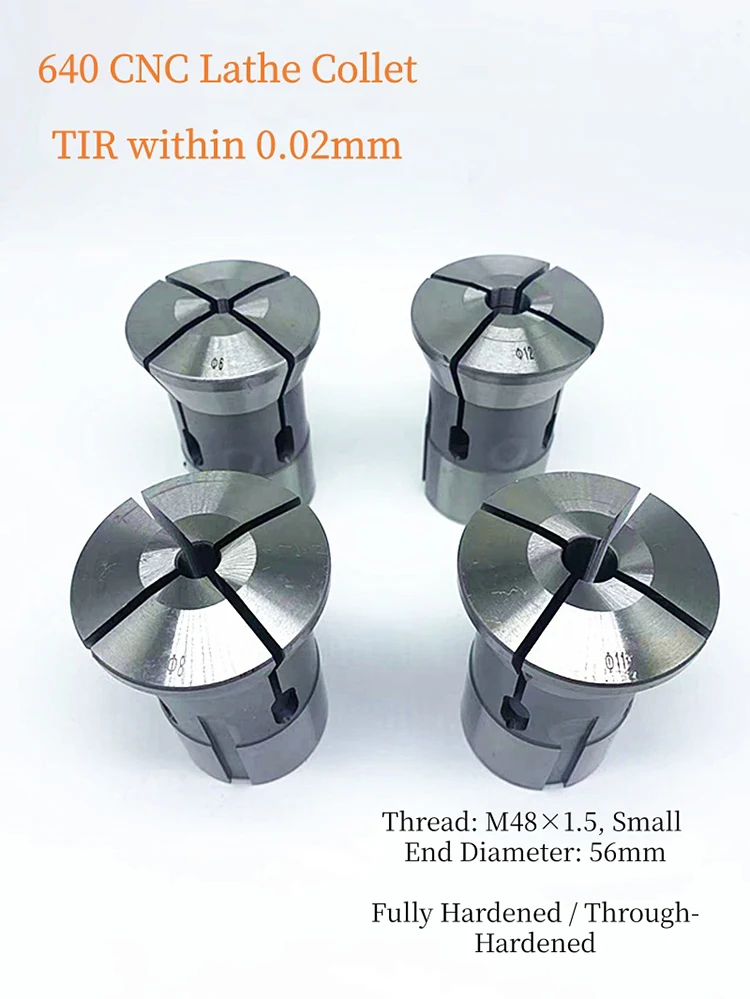

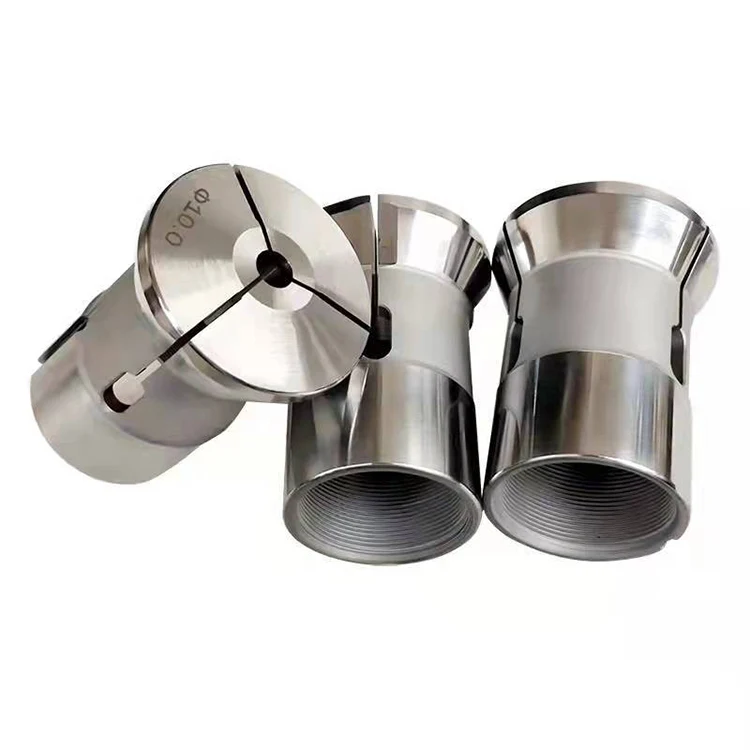

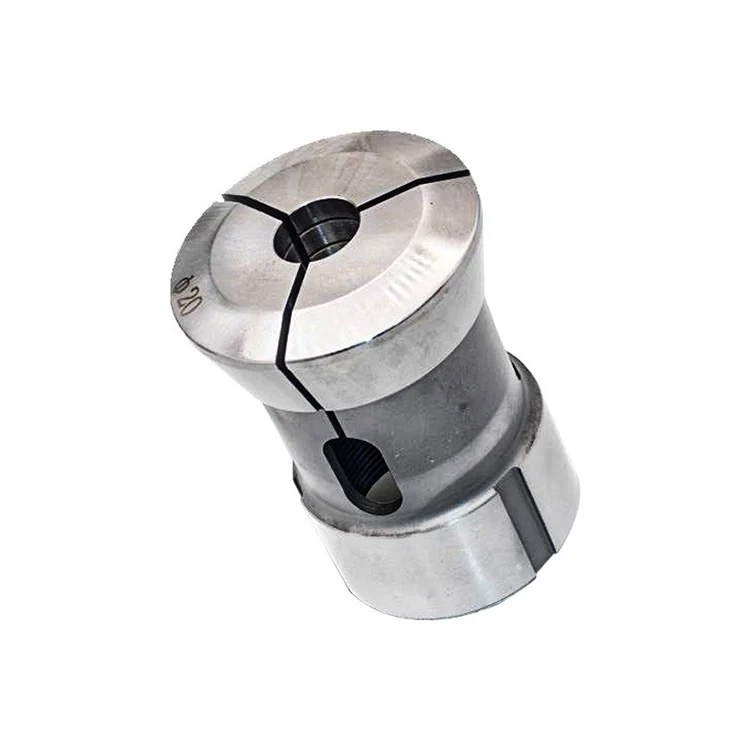

Collet Chuck

Yueli collet chuck is specially designed for CNC sliding headstock lathes and turn-mill compound machining centers. It is intended to be used with spring collets for workpiece clamping. The product is integrally formed from high-hardness tungsten carbide, which provides wear resistance exceeding that of ordinary steel. It maintains stable guiding concentricity during long-term machining of iron valves and metal hardware, reducing ovality and dimensional deviation to improve batch production yield. Standard medium sizes are available from stock. Custom brand LOGO engraving is supported. The product is manufactured under ISO9001 quality management and CE certification. Each unit is individually sealed in a plastic box with gross weight 0.2 kg and package dimensions 8×8×10 cm.

Product Design and Machine Compatibility

This collet chuck is designed specifically for certain types of CNC machines and works with specific clamping components.

· Designed for CNC sliding headstock (Swiss-type) lathes.

· Designed for turn-mill compound machining centers.

· Works with standard spring collets (collet pads).

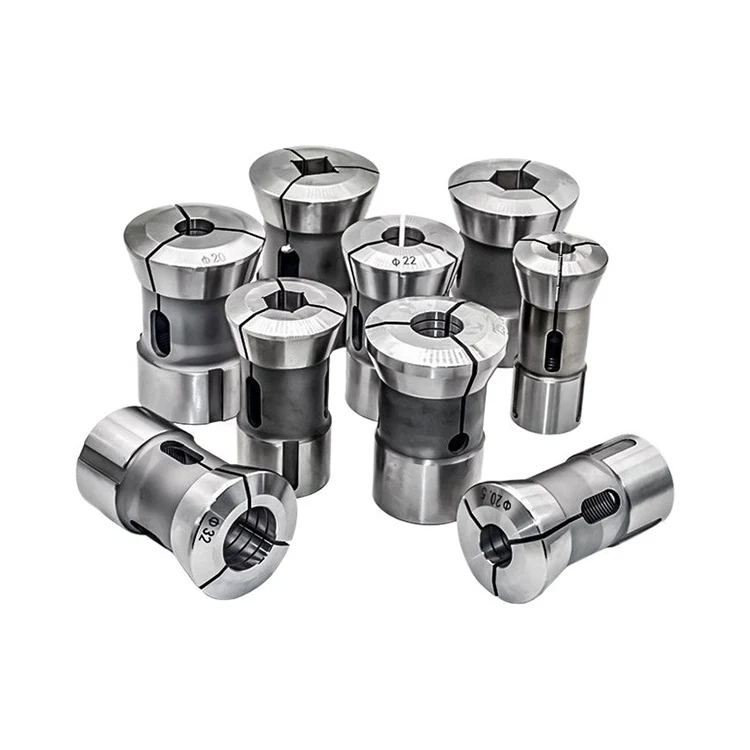

· Standard medium-size specifications are available.

Material and Manufacturing Process

The collet chuck is manufactured from tungsten carbide using a specific forming process. The material properties determine its performance in machining applications.

· Material: high-hardness tungsten carbide (cemented carbide).

· Process: integrally formed (one-piece molding).

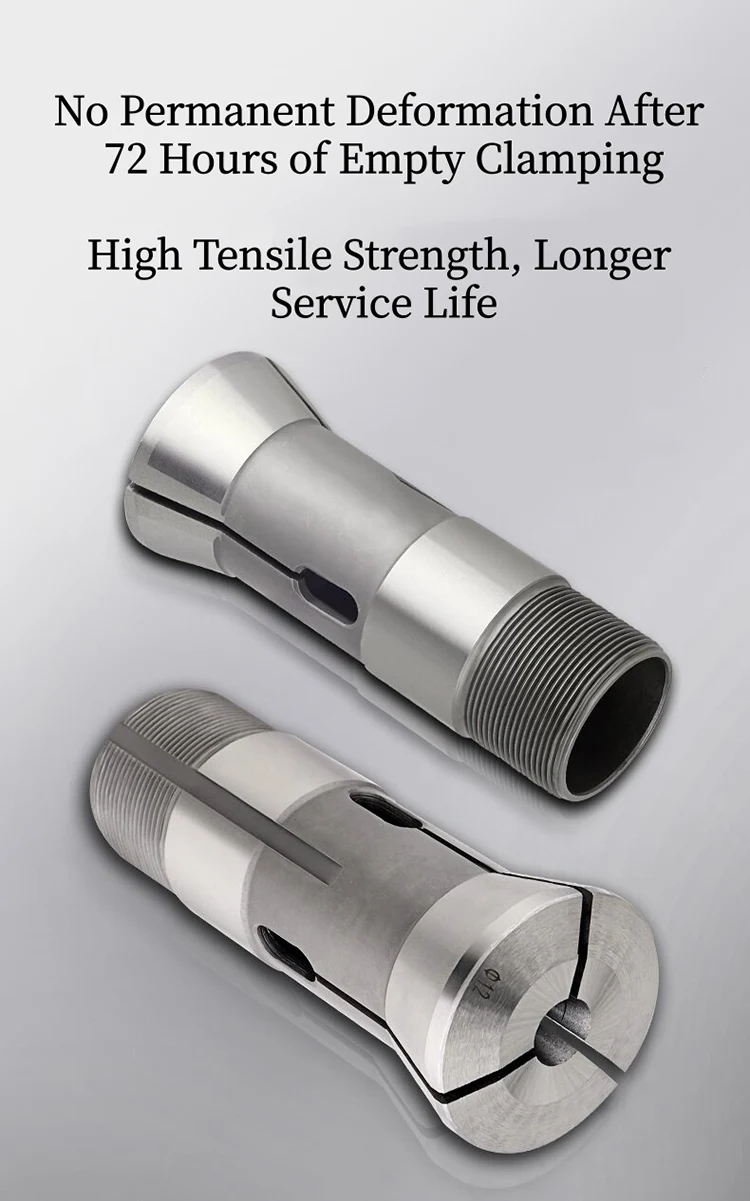

· Wear resistance is superior to conventional steel chucks.

· Suitable for long-term machining of iron parts and valves.

Machining Performance and Accuracy

The collet chuck provides certain performance characteristics that affect machining quality and production efficiency.

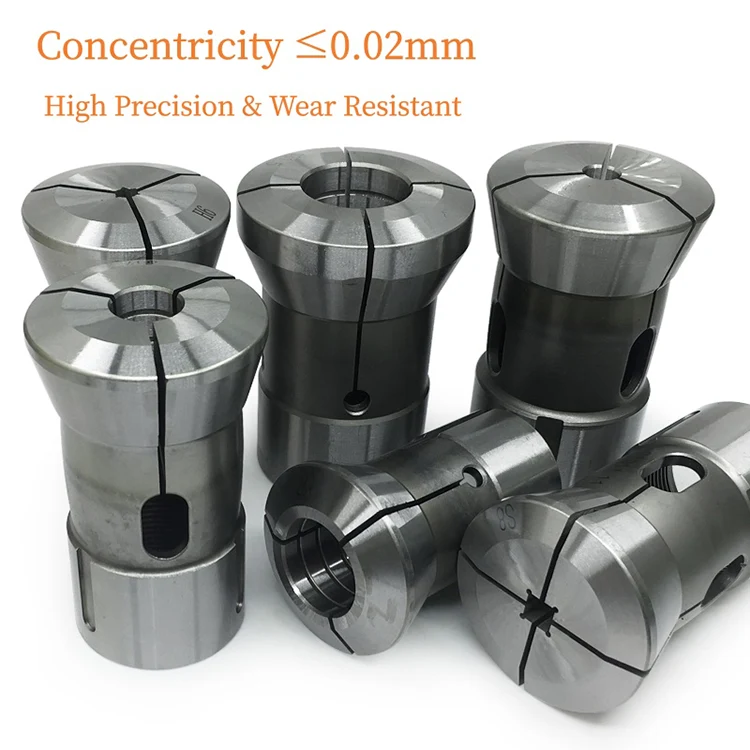

· Maintains stable guiding concentricity.

· Reduces ovality (out-of-roundness) in workpieces.

· Reduces dimensional deviation in machined parts.

· Helps improve yield rate in mass production.

Specifications and Packaging

The product has specific physical dimensions and packaging methods for transport and storage.

Quality Certifications and Patents

Yueli Auto Equipments operates under formal quality management systems and holds relevant certifications and patents.

· ISO9001 quality management system.

· CE certification – products meet CE guide requirements.

· Strict quality control system in place.

· Unified dimensional tolerance across all units.

About Yueli

Quanzhou Yueli Automation Equipment Co., Ltd. was founded in 2013. The company is located in Nan'an, Fujian, China. It is a production enterprise led by drilling tapping compound machines, drilling tapping centers, and drilling tapping milling process centers. The company serves industries including sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, and machine manufacturing.

· Founded in 2013, located in Nan'an, Fujian.

· Core products: drilling tapping compound machines, drilling tapping centers, drilling tapping milling process centers.

· Served industries: sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing.

· Developed from assembly manufacturing to R&D, production, sales, and service integration.

· Owns CNC gantry rail grinder machines, boring mills, milling, digging, polishing compound machines, and other testing equipment.

· Sales network covers China and exports to foreign countries and regions.

Typical Applications

This collet chuck is used in automatic turning and machining of metal components across the industries served by the company.

· Iron valves and fire protection valve components.

· Copper hardware fittings.

· Aluminum hardware fittings.

· Zinc-alloy hardware fittings.

· Sanitary ware components.

· Electrical hardware components.

· Aerospace and machine manufacturing parts.

Ordering, Stock, and Customization

Standard medium-size items of this collet chuck are held in stock and can be shipped without delay. Custom LOGO engraving is available. No mold development or customization fees are required for standard sizes.

· Standard medium sizes are in stock.

· No mold development required.

· Customer brand LOGO engraving supported.

· Immediate shipment for stock items.

· Each unit sealed in plastic box for protection.

Frequently Asked Questions

What material is used for this collet chuck?

The collet chuck is integrally formed from high-hardness tungsten carbide.

Which machines is this collet chuck compatible with?

CNC sliding headstock lathes and turn-mill compound machining centers.

Is this product in stock?

Standard medium sizes are held in stock. No mold development is required.

What certifications does Yueli Auto Equipments hold?

ISO9001 quality management and CE certification.

What is the packaging weight and size?

Gross weight 0.2 kg. Package dimensions 8 × 8 × 10 cm.

What industries use this product?

Sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing.
