Product Description

Manual drilling tapping compound machine

Equipment description and pictures



Automatic Equipment description and photos

Professional China quality Manual Drilling Composite Machine Manufacturers and Suppliers. YueLi is Manual Drilling Composite Machine manufacturer and supplier in China.

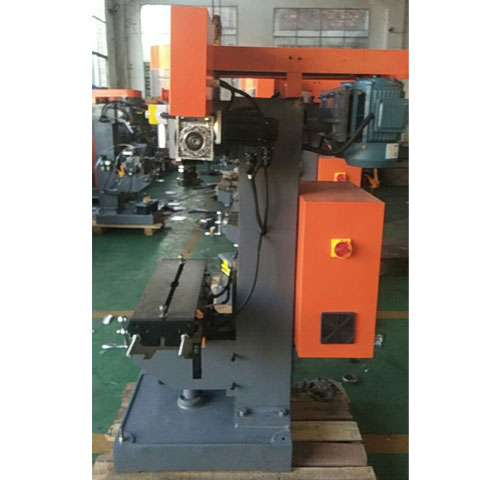

The manual working machine consists of a base, a column, a lifting table, a middle trailer, a working table and a spindle unit

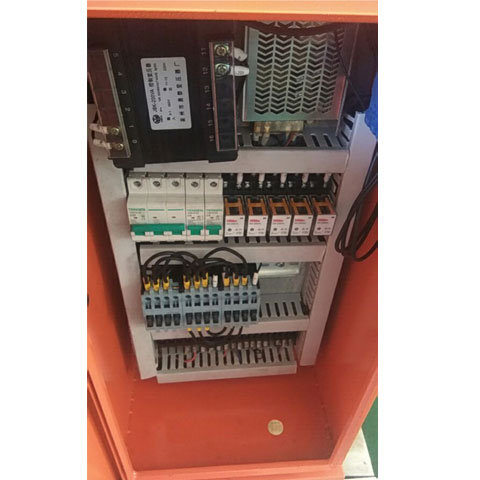

PLC Control Program Control, man-machine interface friendly dialogue, intuitive programming easy to operate, ordinary people can quickly learn

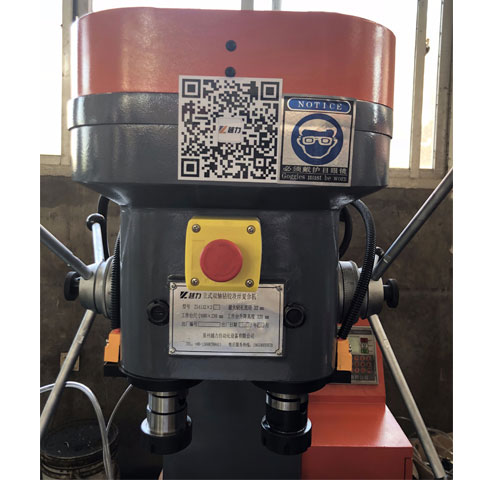

Sliding sleeve type double spindle manual feed unit, Korean imported pneumatic transmission worktable. The table adopts pneumatic device and hydraulic buffer positioning, moving, positioning accuracy is high. Eliminates the old-fashioned equipment easy to appear the screw thread does not malfunction



Worktable after high-frequency processing, wear-resistant, high-temperature, equipped with Lubrication System

Applied to valves, plumbing sanitary ware, door control hardware, fire hydrants, auto parts and other processing, easy to operate, beautiful appearance, cost-effective.

Technical Parameter

Parameter name

Unit

Model

ZS4132×2

ZS4132×2A

ZS4132×2B

Diameter of spindle sleeve

MM

86

Number of cutting spindles

/

2

Transmission Mode

/

Single Motor Synchronous Belt Drive

Single Motor Gear Drive

FIRST-STAGE BELT DRIVE

Maximum dilling diameter

MM

32

Maximum tapping dimeter

MM

32

Spindle taper

#

NT30

Spindle pitch

MM

150

Distance between spindle end face and worktable surface

MM

260-580

Dimension of Work Table

MM

600*230

Table Travel(X)

MM

160

Middle Tow travel(Y)

MM

120

Spindle travel (drilling / tapping)

MM

110/110

Manual / Automatic Tapping

/

Manual Operation

Drilling spindle speed

Rpm

1420/990/619

874/1382

Tapping spindle speed

Rpm

580/410/257

575/908

Type of drilling motor

/

3KW/4P

3KW/4P

Type of tapping  motor

/

Total Power

kw

3

6

Dimensions (length * Width * Height)

Mm

1200*680*1600

Machine Weight

kw

700

750



Display of processed products
