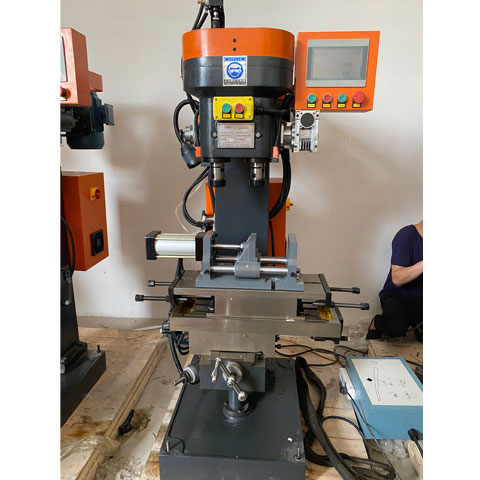

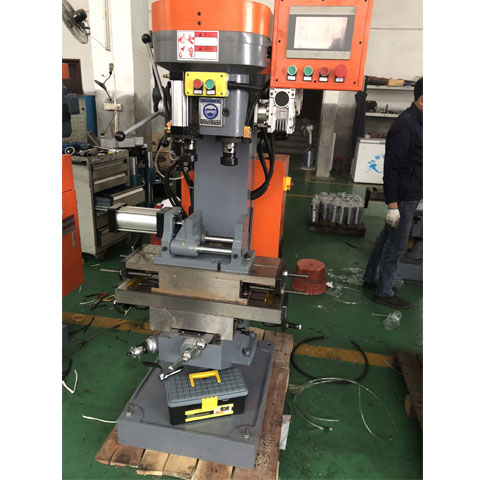

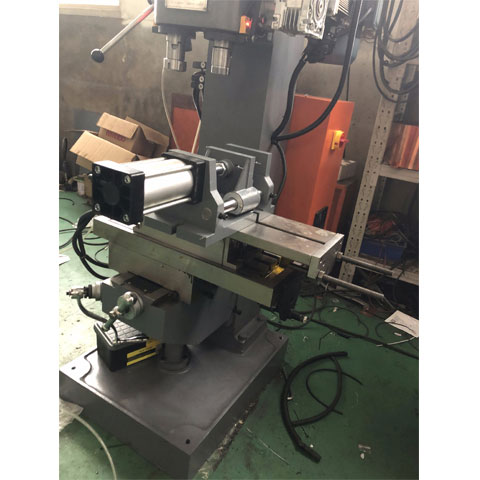

CNC Dual spindle drilling tapping compound machine

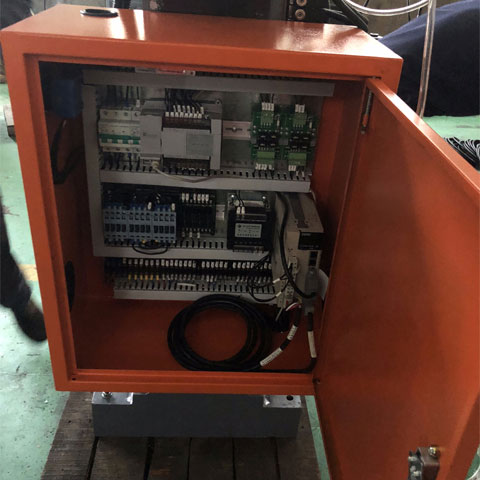

Equipment description and pictures

Hot sale quality SFour Station Composite Machine with Low Price made in China. YueLi is Four Station Composite Machine manufacturer and supplier in China.

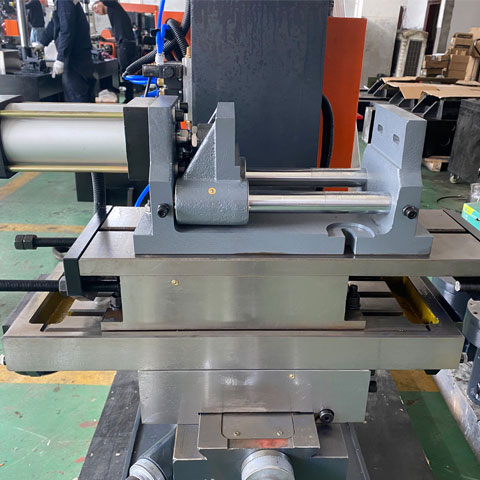

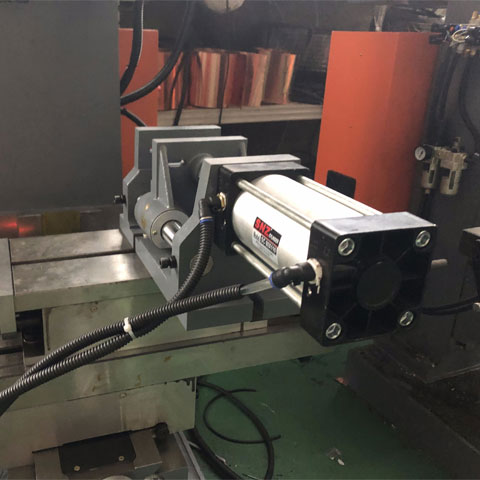

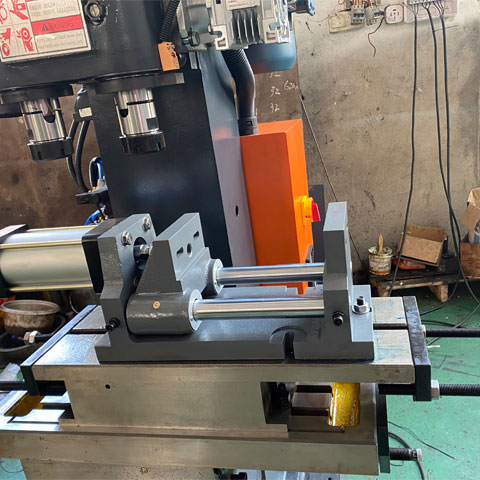

A clamping, processing two holes at the same time, the maximum processing hole distance of 170mm(such as processing 210mm need to be customized), the process flow: Drill the first hole - table cylinder move to the left - drill the second hole - slide cylinder move to the left - slide cylinder move to the right - tap the second tooth - table cylinder move to the drill shaft (back in place) - clamp - cycle again.

Technical Parameter

NO.	Item Name	Specifications	Remark
1	X axis maximum stroke(pneumatic)	160
2	Y axis maximum stroke(manual)	120
4	Maximum stroke of drilling spindle	110
5	Maximum stroke of tapping spindle	100
6	The spindle spacing	150
8	Spacing between spindle end face and worktable	260/580
11	Spindle taper # Spindle taper	NT30（7:24/30#）
12	Maximum drilling diaweter	Ф32
15	Maximum tapping diameter	Ф32
16	Z1 Shaft speed (drilling)	0-1420
17	Z2 Shaft speed(tapping)	0-1420
18	Spindle motor power	3kW/4P
22	Outside size:length×width×height	1200×610×1500MM
23	Machine net weight	700KG
