Universal Radial Drilling Machine
※Z3732 mobile universal radial drilling machine, can do drilling, reaming, boring, twisting, scraping, tapping and other similar work, suitable for all kinds of machine manufacturing processing small and medium-sized parts, also suitable for repair workshop.※The rocker arm can be raised and lowered electrically or adjusted manually.※The base of the machine is equipped with leveling screws, which can flexibly solve the problem of uneven ground.
Model:Z3732x8b
Send Inquiry
Product Description

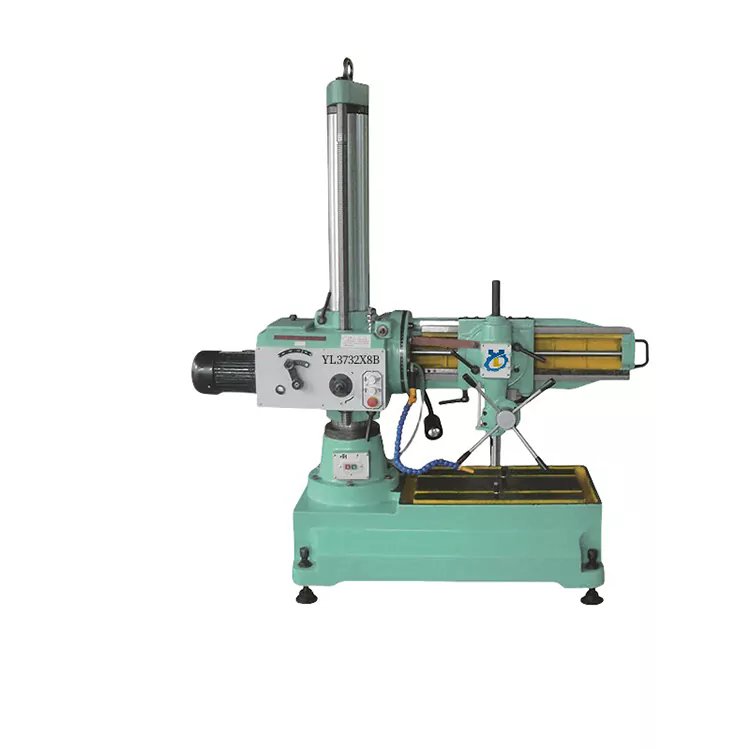

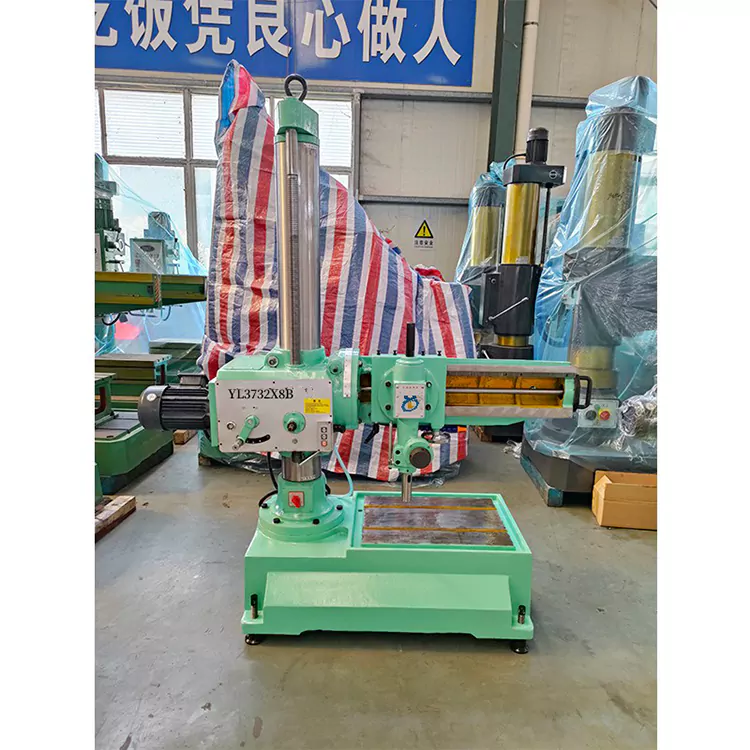

Z3732X8B universal radial drilling machine
※Z3732 mobile universal radial drilling machine, can do drilling, reaming, boring, twisting, scraping, tapping and other similar work, suitable for all kinds of machine manufacturing processing small and medium-sized parts, also suitable for repair workshop.※The rocker arm can be raised and lowered electrically or adjusted manually.※The base of the machine is equipped with leveling screws, which can flexibly solve the problem of uneven ground.
※The machine is equipped with water tank and cooling pump, and the base is installed with a ground wheel, which greatly facilitates the use, maintenance and handling of the user.
Z3732X8B Factory price: 22,000 (including tax), excluding tax: 19500
keyword
1. Basic products: universal radial drilling machine, radial drilling machine, drilling machine equipment
2. Functional characteristics: 360 degree rotation of the spindle, multi-directional adjustment of the rocker arm, high-precision drilling
3. Application scenarios: machining radial drilling machine, parts manufacturing drilling machine, metal processing equipment
Title
1. Marketing promotion type: "Select universal radial drilling machine, 360 degrees flexible operation, to meet various processing needs!"
2. Knowledge popularization type: "Universal radial drilling machine secrets: multi-directional movement, how to improve processing efficiency?"
3. Compare the recommended type: "Ordinary drilling machine VS universal radial drilling machine, how does the latter stand out?"
Parameters:
|
Main technical parameters |
Specification |
Units |
Z3732 |
|
|
Maximum diameter of hole |
Max.drilling dia |
mm |
31.5 |
|
|
Morse taper of the main shaft hole |
When the Lord addition to the taper |
3 号 |
|
|
|
Spindle travel |
Shaft mobile travel |
mm |
130 |
|
|
Distance from spindle center line to column busbar |
Main shaft centerline to pillar bus distandle |
mm |
315 - 815 |
|
|
The spindle moves in the horizontal direction |
Distandle between spindle axis and column surface |
mm |
500 |
|
|
Distance from spindle end face to work surface |
Distance from spindle nose to table surface |
mm |
25 - 870 |
|
|
The travel of the spindle on the column |
Spindle in column of the strokel |
mm |
845 |
|
|
Spindle rotation Angle |
Spindle turning Angle |
° |
360° |
|
|
The rotation Angle of the main shaft perpendicular to the horizontal line of the column |
In vertical axis horizontal turning Angle of the mast |
° |
360° |
|
|
Rotation Angle of the main shaft around the column |
Wishbone lifting speed |
° |
360° |
|
|
Boom lifting speed |
Wishbone lifting speed |
m/min |
1.51 |
|
|
Motor power |
Motor power |
kw |
1.5 |
|
|
Spindle speed |
Spinde speed |
|
173、425、686、960 转 / 分 |
|
|
Base table area |
Base table size |
mm |
770 x 500 |
|
|
Net machine weight |
Machine net weight |
|
900 |
|
|
Machine dimensions (L x W x H) |
Overall dimensions |
mm |
1800 x 700 x 2044 |
