Drilling Tapping Compound Machine

As a professional manufacturer in China, Yueli would like to provide you quality Manual Drilling Tapping Compound Machine from a trusted factory, combining precision drilling and tapping with efficient dual-spindle performance for cost-effective industrial machining.

Send Inquiry

Product Description

The Manual Drilling Tapping Compound Machine manufactured by Yueli, a professional factory supplier in China, is designed to integrate drilling and tapping operations into one efficient solution. Built for stability, precision, and ease of use, this machine is ideal for workshops seeking dependable performance with reduced operational complexity and cost.

What IsManual Drilling Tapping Compound Machine?

The Manual Drilling Tapping Compound Machine is a dual-spindle machining system that enables accurate drilling and tapping processes in a single setup. It reduces manual errors while improving production consistency.

Typical Applications

Manual Drilling Tapping Compound Machine is suitable for across multiple industries:

· Valve and plumbing components manufacturing

· Sanitary ware and bathroom hardware production

· Door control hardware processing

· Fire hydrant and safety equipment machining

· Automotive parts manufacturing

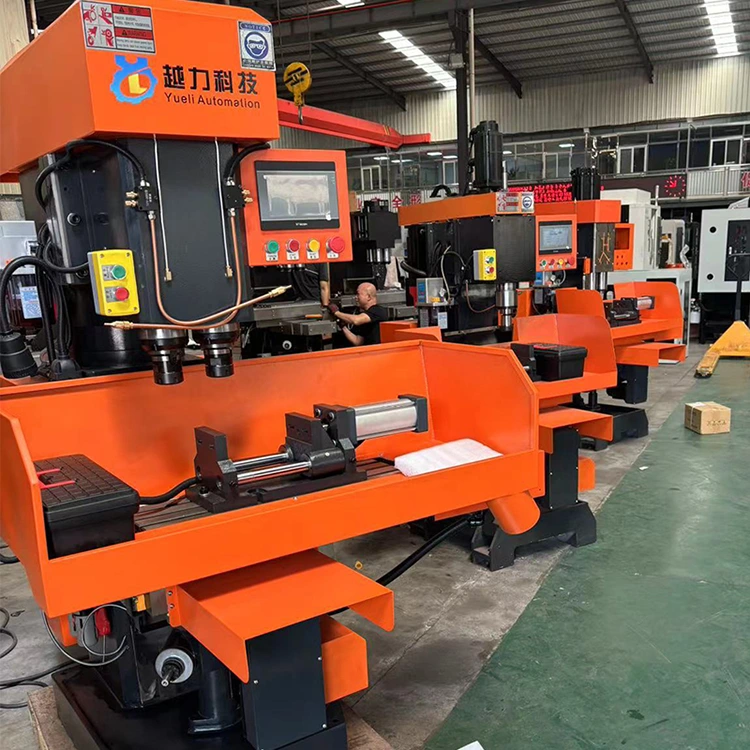

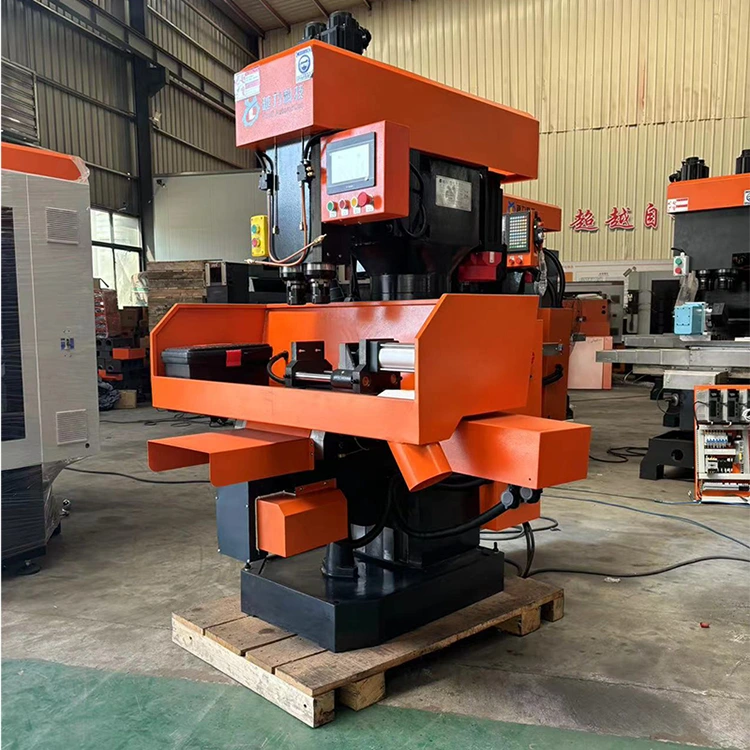

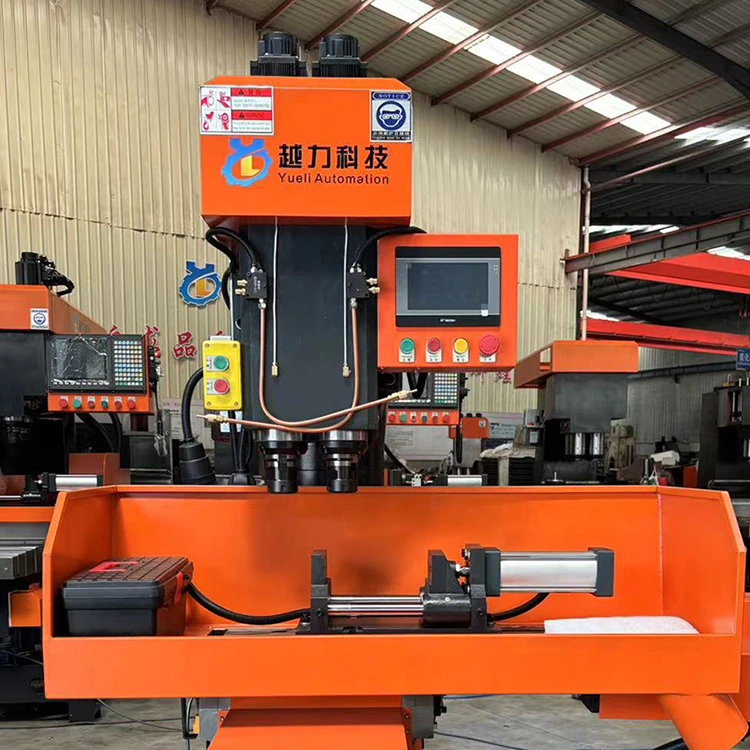

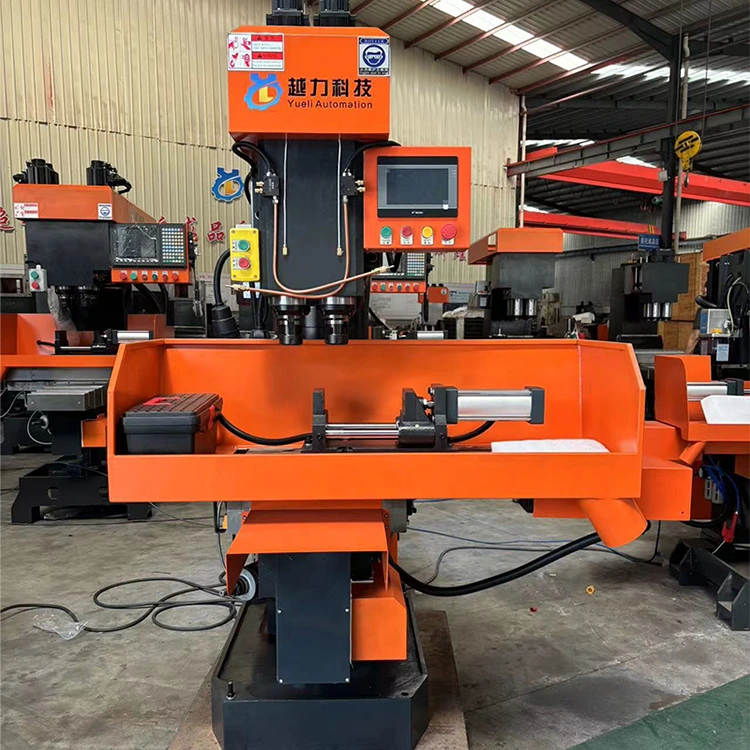

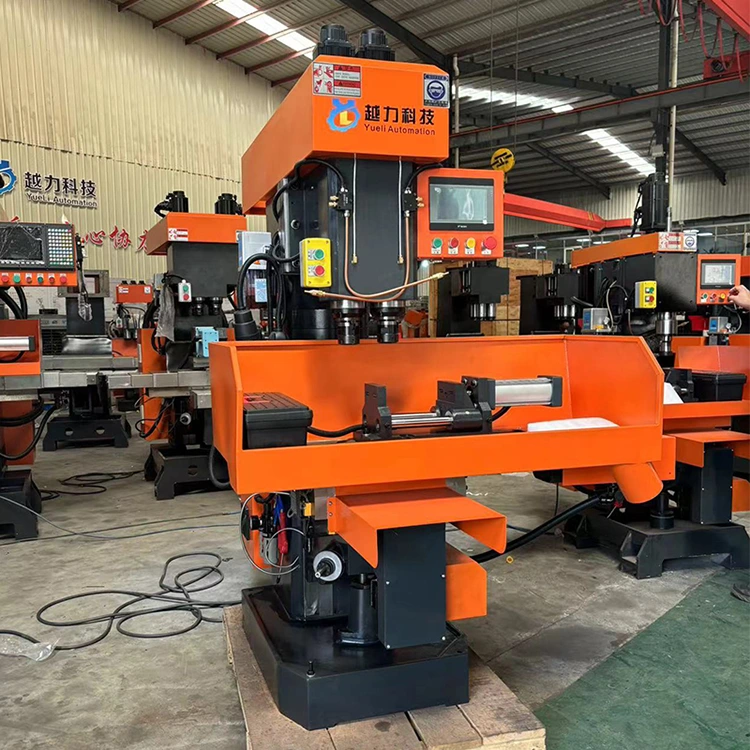

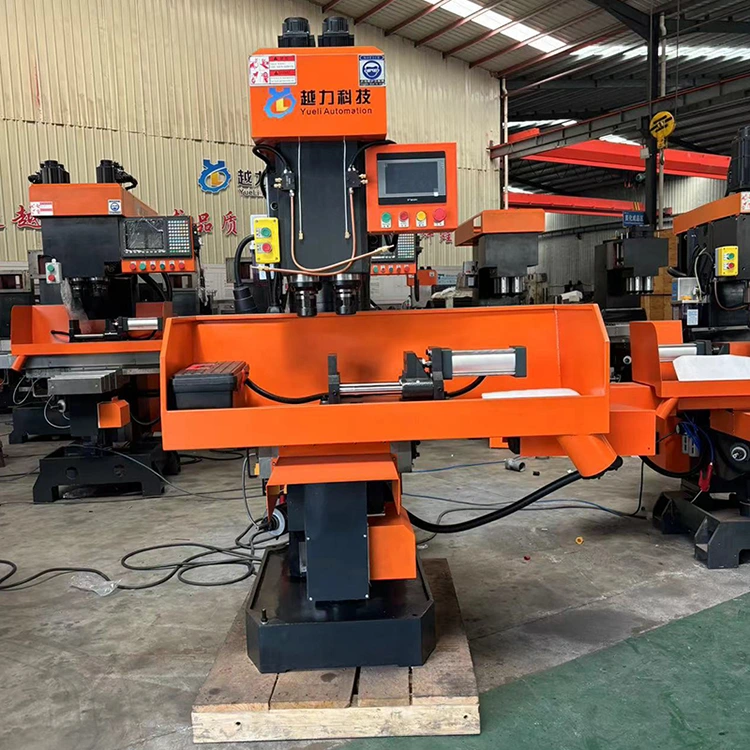

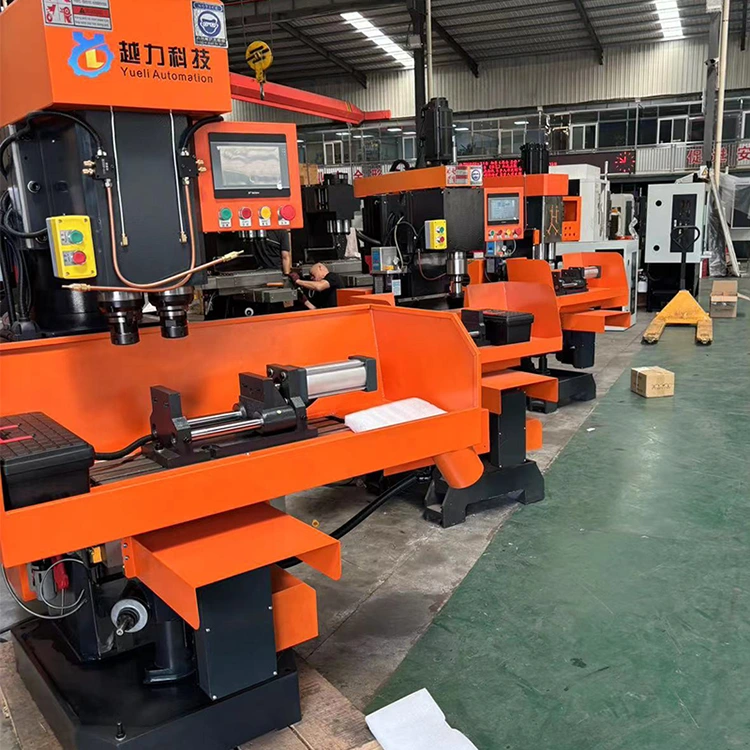

Equipment description and pictures

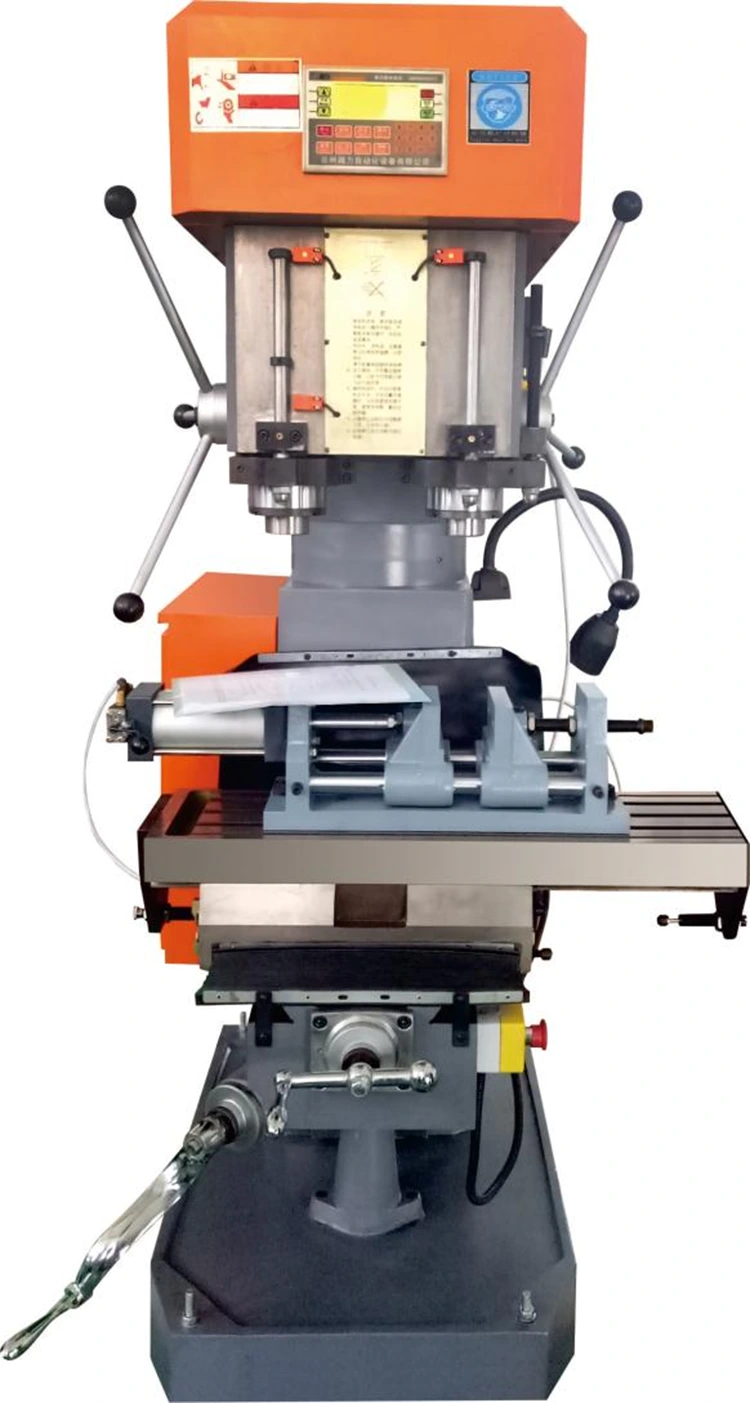

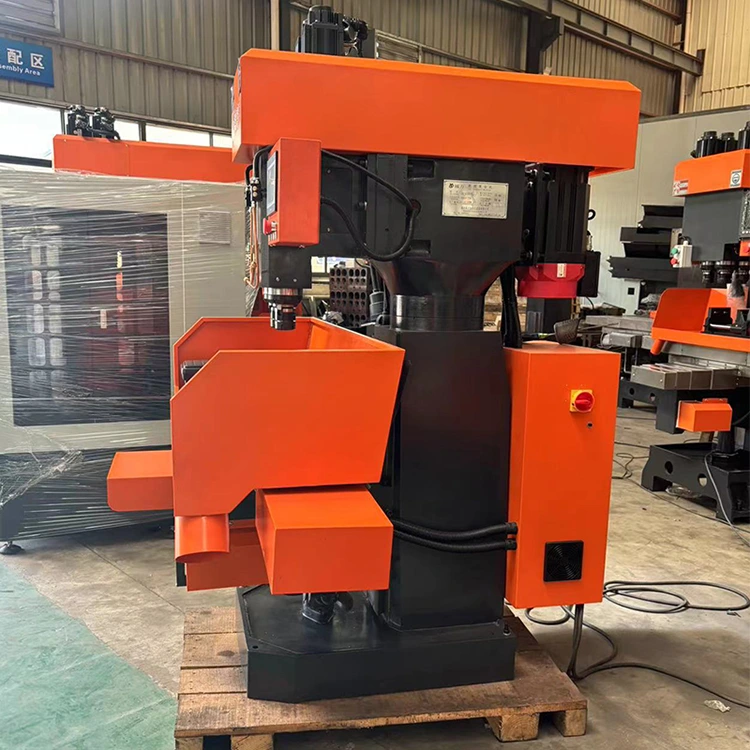

Drilling Tapping Compound Machine

Core Advantages

1. Precision Dual-Spindle Design

· Sliding sleeve dual spindle ensures synchronized operation

· Reduces thread misalignment and improves machining accuracy

2. Advanced Control System

· PLC-controlled system with user-friendly interface

· Simple programming enables fast learning and operation

3. Stable Worktable Performance

· Pneumatic-driven table with hydraulic buffer positioning

· Ensures high positioning accuracy and smooth movement

4. Durable Structure

· High-frequency treated worktable surface

· Enhanced wear resistance and high-temperature tolerance

Technical Parameter

Parameter name	Unit	Model
		ZS4150×2	ZS4150×2A	ZS4180×2	ZS4180×2A
Diameter ofspindle sleeve	MM	90		110
Number of cutting spindles	/	2		2
Transmission Mode	/	First-stage Synchronous Belt Drive		First-stage Synchronous Belt Drive
Maximumdillingdiameter	MM	50		80
Maximum tapping dimeter	MM	50		80
Spindle taper	#	MT40		NT40
Spindle pitch	MM	240		240
Distance between spindle end face and worktable surface	MM	240-580
Dimension of Work Table	MM	800×230		800×230
Table Travel(X)	MM	250		250
Middle Tow travel(Y)	MM	Manual Operation 120		Manual Operation 120
Spindle Travel (Drilling/Tapping)	MM	140/140		140/140
Manual / Automatic Tapping	/	Manual Operation	Automatic tapping	Manual Operation	Automatic tapping
Drilling spindle speed	Rpm	1013		1013
Tapping spindle speed	Rpm	518		518
Type of drilling motor	/	4KW/4P		4KW/4P
Type of tapping motor	/	4KW/4P		4KW/4P
Total Power	kw	8		8
Dimensions (length * Width * Height)	Mm	14209201800		14209201800
Machine Weight	kw	1250	1270	1300	1350
