Radial Drilling Machine Pre-Sale Information

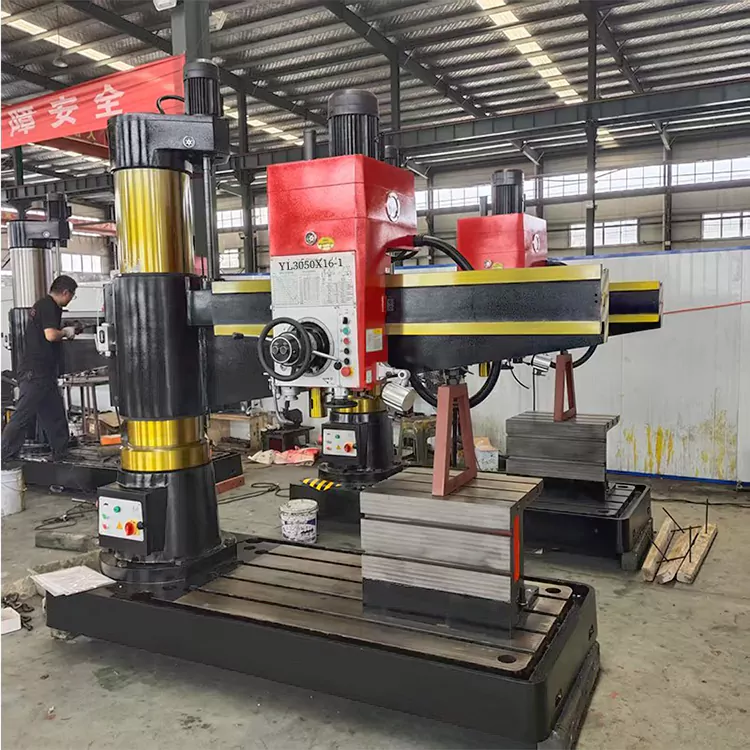

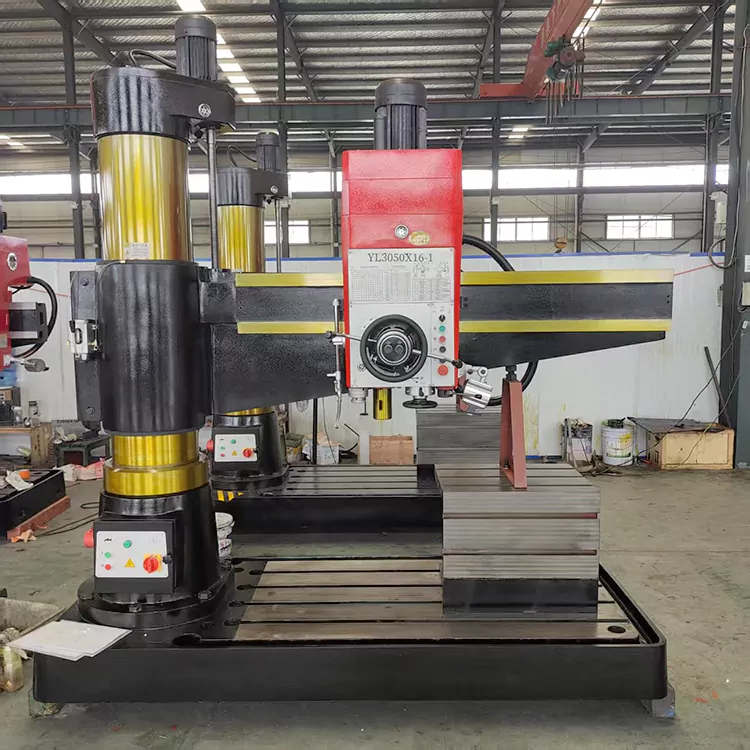

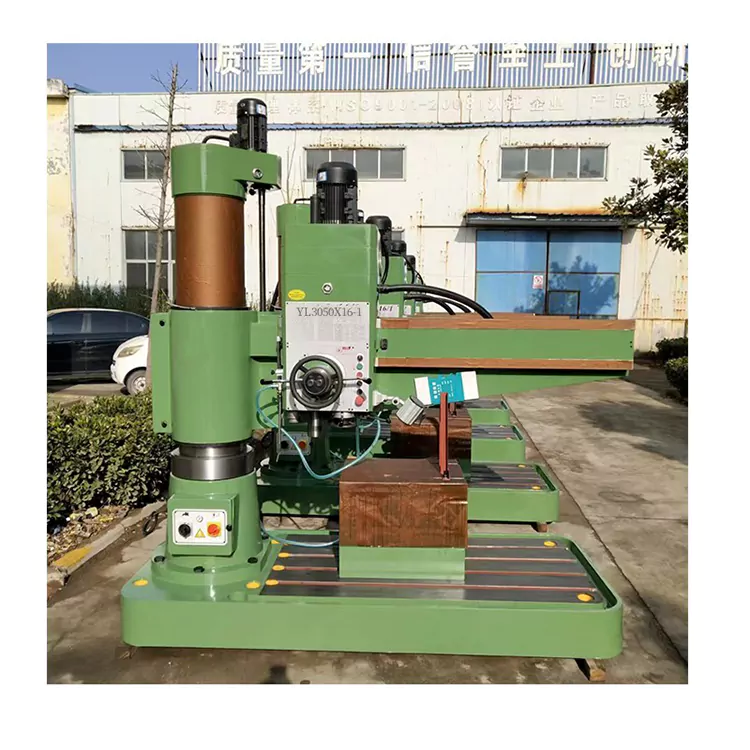

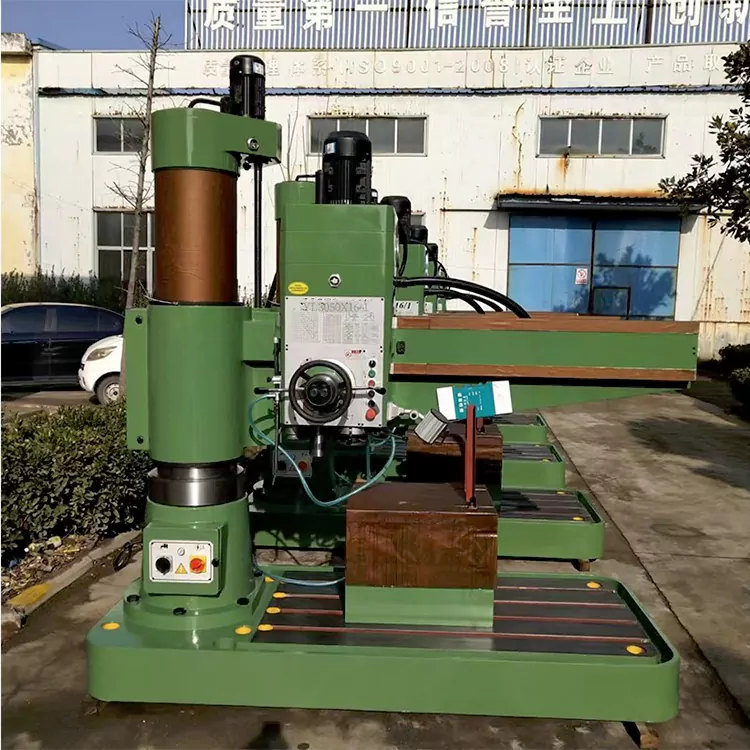

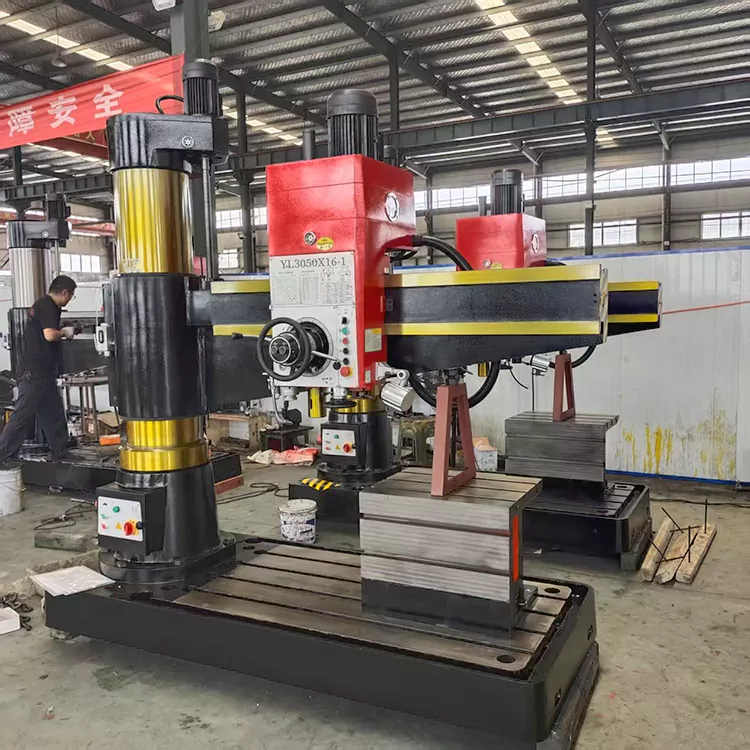

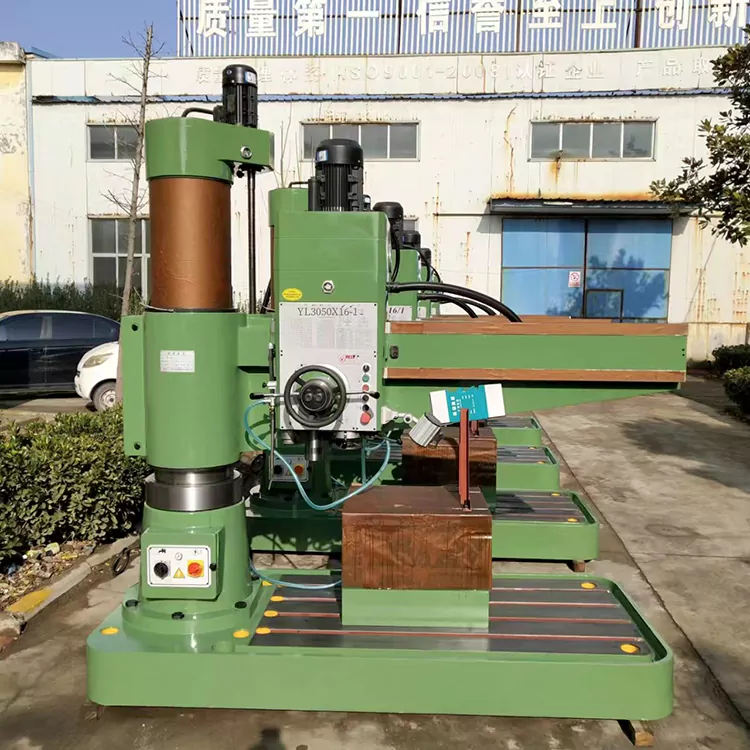

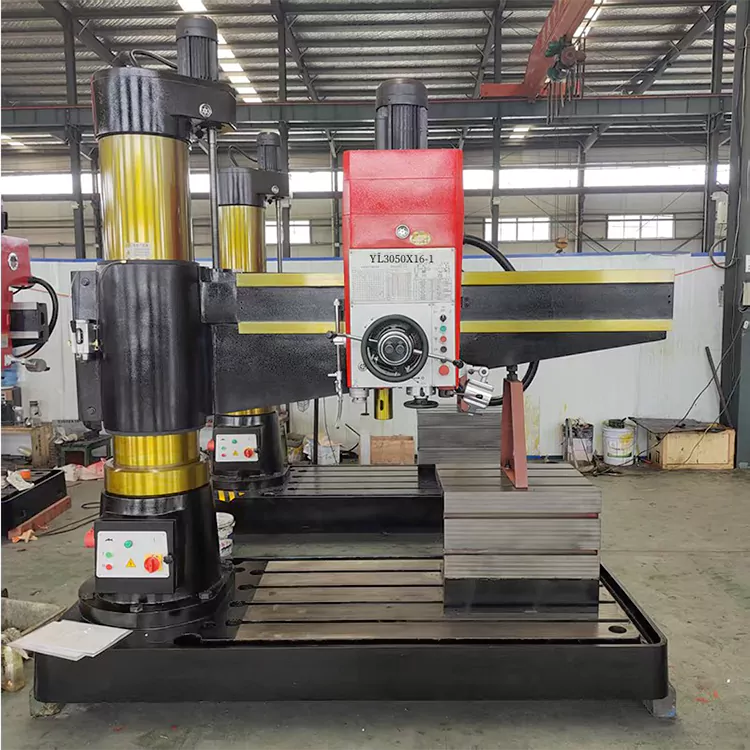

YL3050X16/1 radial drilling machine pre-sale information

1. product introduction and use

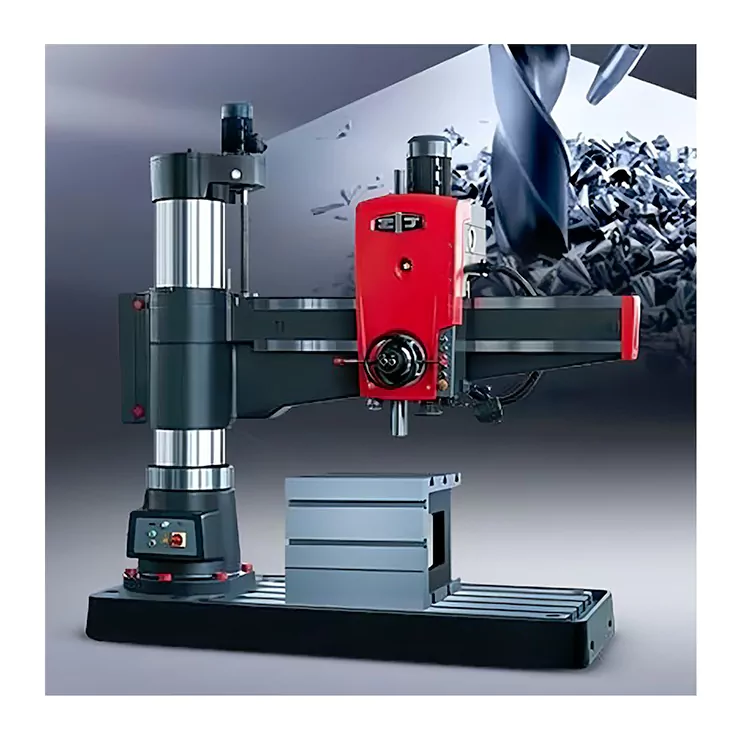

1, YL3050× 16/1 radial drilling machine, suitable for drilling, reaming, reaming, counterfacing and tapping on large and medium parts. Under the condition of having process equipment, boring can be carried out.

2. Main features

2.1 Surface quenching treatment is adopted on the guide rail of the rocker arm, the spindle sleeve and the rotating raceway of the inner and outer column to extend the service life of the machine tool.

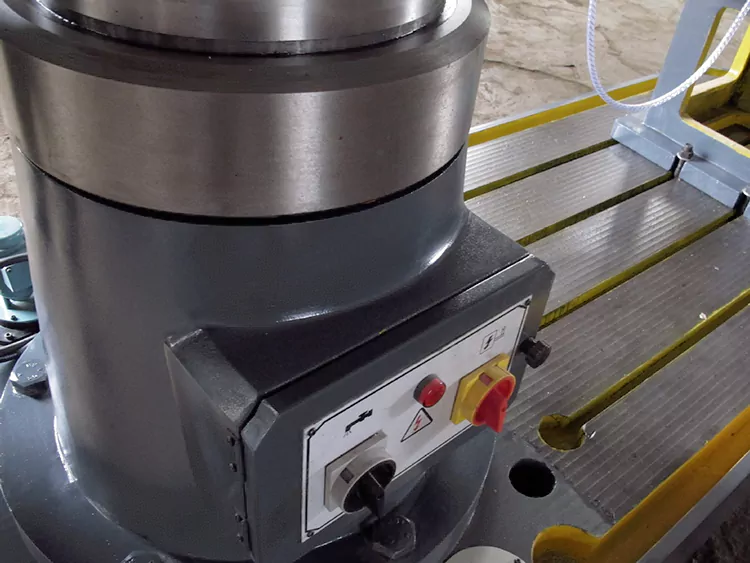

2.2 All control handles are centrally located in a very convenient position and easy to operate.

2.3 Spindle positive and negative rotation, parking (braking), speed change, neutral five actions, all with a handle control, so that easy to use.

2.4 The headstock, rocker arm and inner and outer column are hydraulically driven diamond block clamping mechanism, which is reliable.

2.5 Hydraulic pre-selected variable speed mechanism can save auxiliary time.

2.6 Complete protection device, in line with general standards.

2.7 The clamping or loosening of headstock and column can be either individually or simultaneously.

3. Large columns, rocker arms, headstock and other large parts are made of high-strength cast iron, which ensures the rigidity and strength of large parts.

4. Lubricating the inner part of the spindle box, the rocker arm and the column are all lubricated automatically. Rocker arm guide rail, rocker arm lifting mechanism, etc. are manually lubricated.

5. Electrical The machine uses three-phase 380V/50Hz AC power supply. The control circuit, lighting circuit and indicator light are all powered by the control transformer.

2. Technical parameters

3. Packing list
