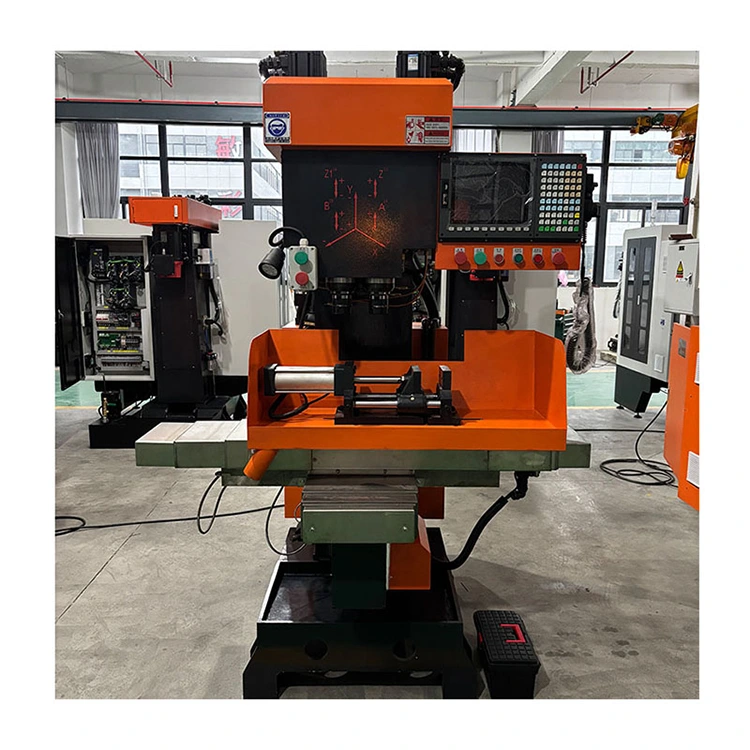

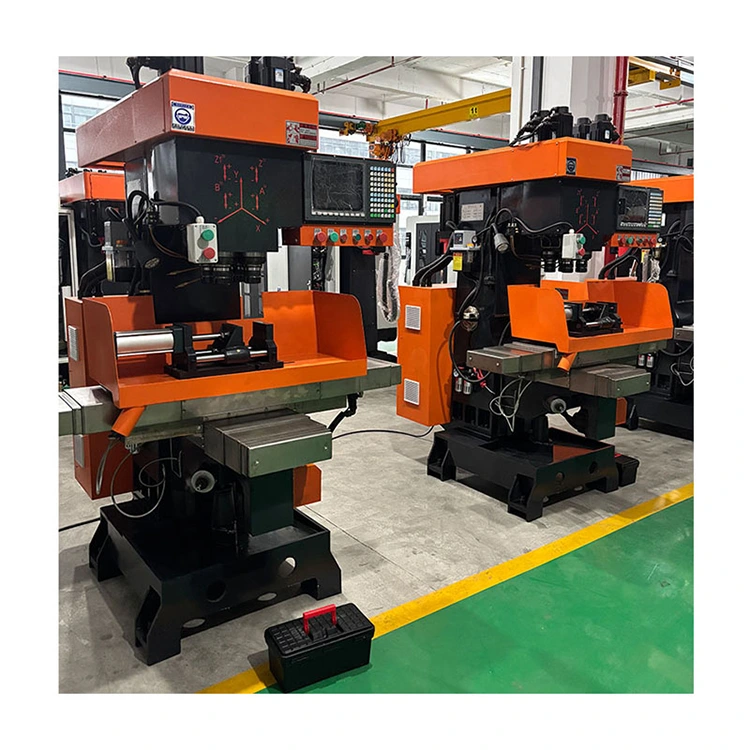

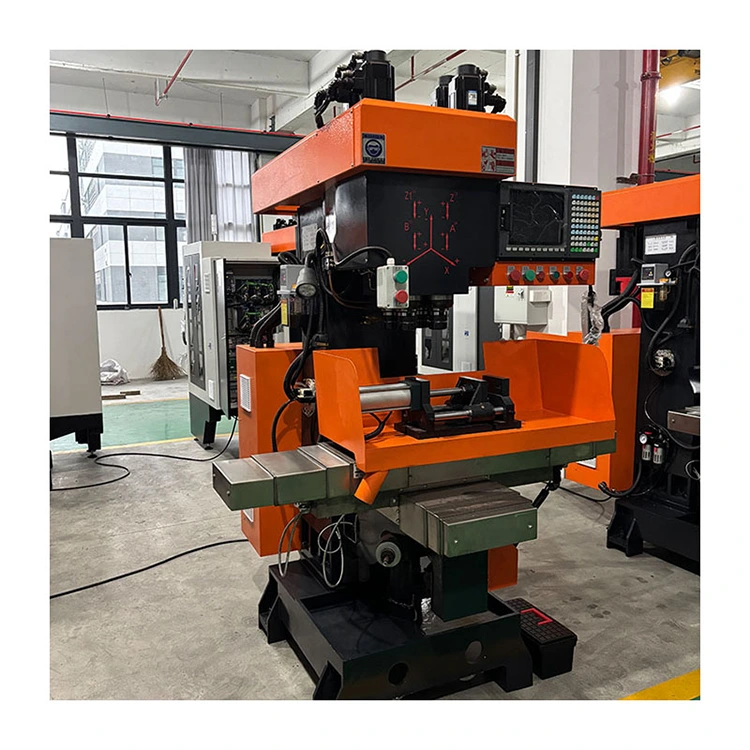

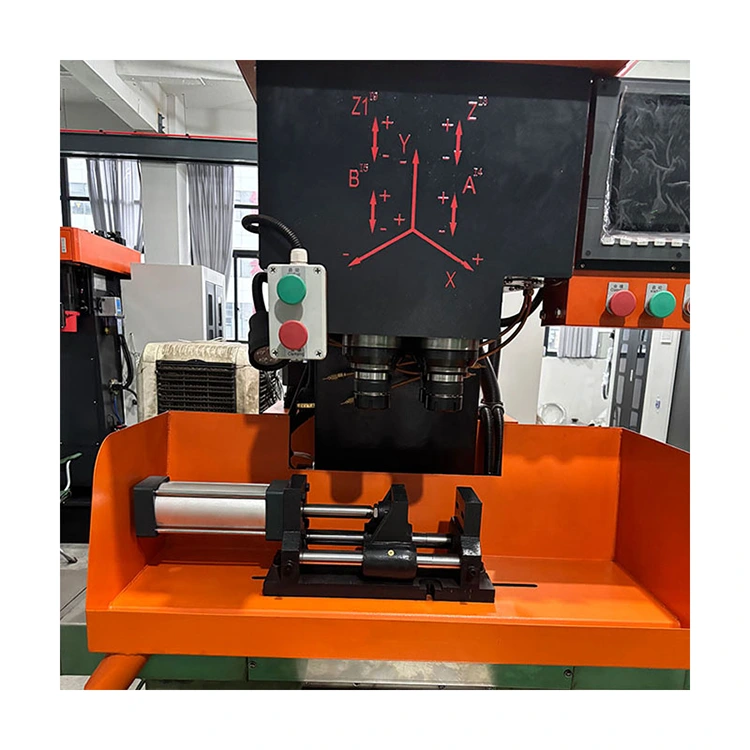

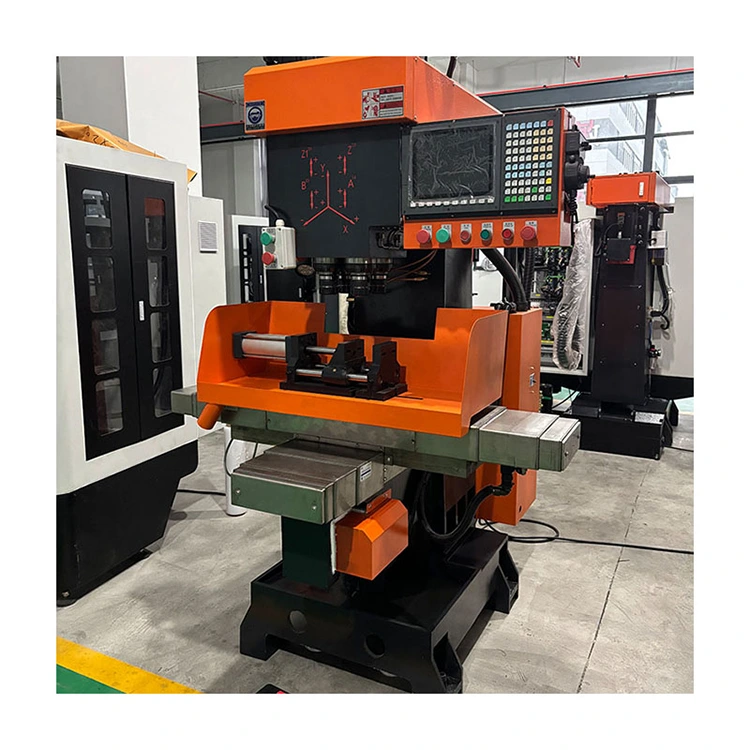

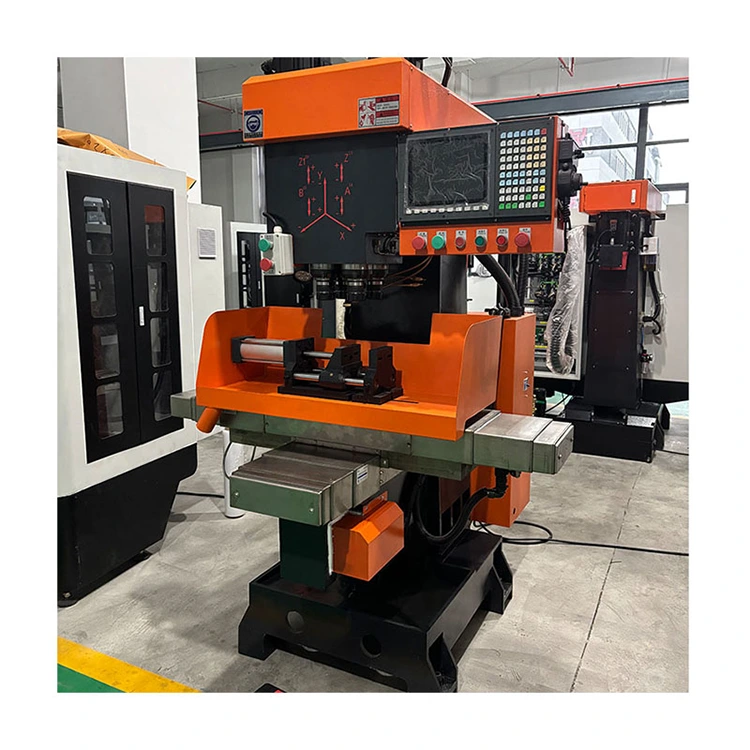

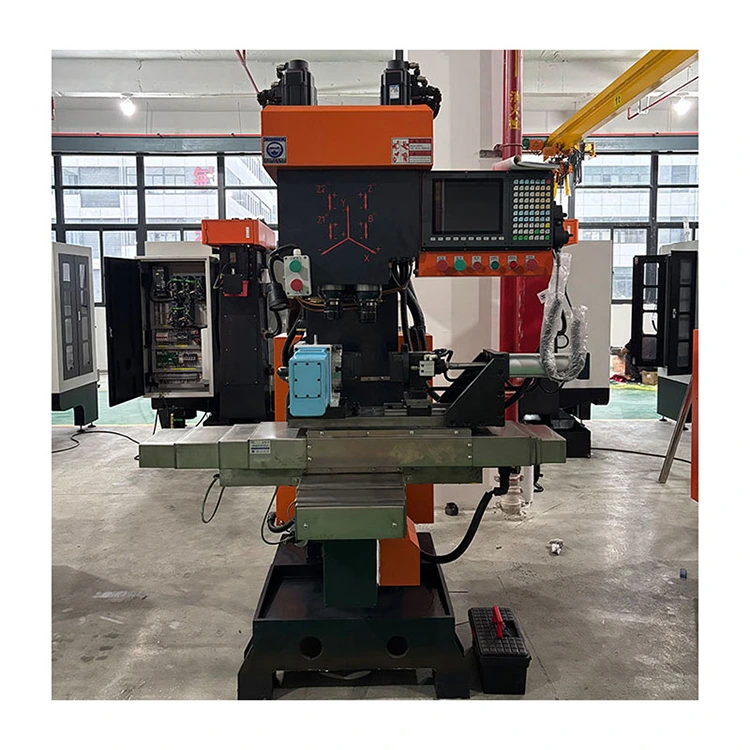

Vertical 4 Spindle CNC Compound Machine

The structure and performance of the machine tool

1. The center of YueLi high quality Vertical 4 Spindle CNC Compound Machine uses a Taiwanese Hust control system for its program control section, which features a detection function to prevent damage to taps or tools caused by solenoid valve or cylinder malfunctions; it has a user-friendly interface and is easy to operate.

2. Vertical 4 Spindle CNC Compound Machine is suitable for medium to large batch parts processing, it can complete the process in a single clamping operation, offering high efficiency and good accuracy.

3. The tapping mechanism does not require changing the lead screw transmission; the pitch is standard, and the Alpha main servo motor has a built-in frequency conversion function, improving the surface roughness of the processed parts' threads and ensuring processing accuracy.

4. Independently developed power head components, precision ground, with good wear resistance and long service life.

5. The Hust CNC system allows for setting the appropriate feed speed as needed. After prolonged use, the lead screw may wear, and the system itself has a tool compensation function.

6. All moving sliding surfaces use a centralized automatic lubrication device to ensure the service life of the machine tool.

7. The slide table movement is driven by a servo motor, allowing for digital setting of multiple coordinates, resulting in high positioning accuracy, low vibration, and fast response speed.

8. During processing, the workpiece processing status is displayed on the touchscreen, and there is an alarm function in case of malfunction.

9. Fully enclosed protection ensures personal safety and improves the processing environment.

Main Configuration

Fourth Axis Parameters

Installation Instruction

1.  The installation of the platform shall be adjusted in accordance with the provisions of Article 3.1 of GB/T17421.1-1998. Place the workbench in the middle of the stroke, and place a level in the center of the workbench. The reading of the level in both the vertical and horizontal directions shall not exceed 0.04/1000mm.

2. The main power cord must not be less than 4mm². After the wiring is completed, please check whether the wiring is correct and whether the wiring terminals are tightened.

3.  The installation of the Vertical 4 Spindle CNC Compound Machine should be grounded as required, the resistance of the machine to ground should be less than 4 ohms, and the diameter of the grounding wire should be greater than 2.5mm².

Application Fields

YueLi high quality Vertical 4 Spindle CNC Compound Machine is capable of completing metal cutting of copper parts, aluminum parts, zinc alloys, and steel parts, and is suitable for industries such as plumbing and sanitary ware, fire-fighting valves, door control hardware, household appliance hardware, water meter & auto/motorcycle parts, and aerospace.
