Desktop Servo Tapping Machine

You can rest assured to buy Desktop Servo Tapping Machine from our factory and we will offer you the best after-sale service and timely delivery. Function features: The bench servo tapping machine has the advantages of beautiful appearance, compact structure, etc., with the bottom pulley can be placed and moved arbitrarily. Using servo tapping power head, high precision, fast speed. The electrical system is controlled by PLC, simple operation and low failure rate. This equipment has the characteristics of high precision, high efficiency and high degree of automation, and one person can operate 2-3 machines at the same time, which can improve the production efficiency of customers.

Send Inquiry

Product Description

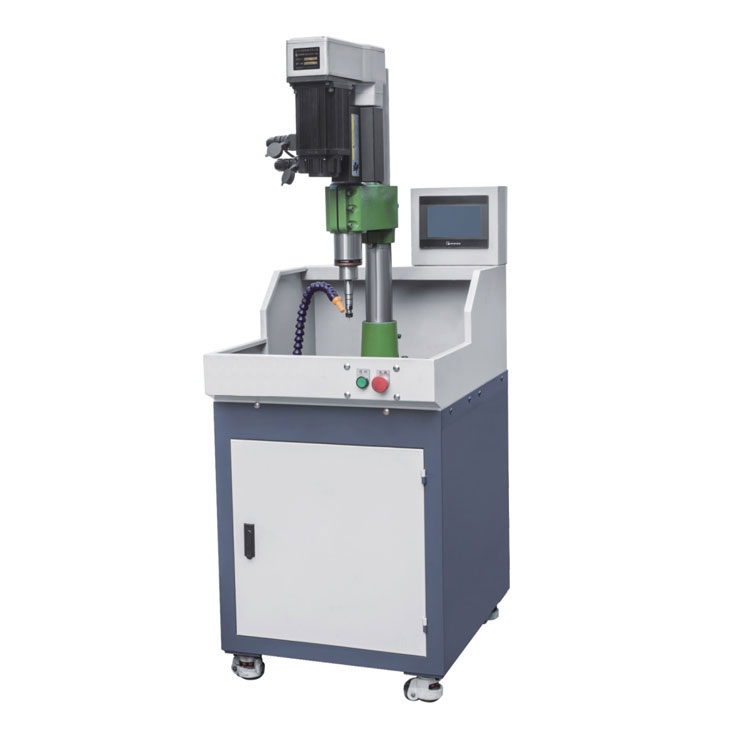

Desktop servo tapping machine

Function features: The bench servo tapping machine has the advantages of beautiful appearance, compact structure, etc., with the bottom pulley can be placed and moved arbitrarily. Using servo tapping power head, high precision, fast speed. The electrical system is controlled by PLC, simple operation and low failure rate. This equipment has the characteristics of high precision, high efficiency and high degree of automation, and one person can operate 2-3 machines at the same time, which can improve the production efficiency of customers.

Technical parameter

Model	ZS-STR3-100L	ZS-STR3-130L	ZS-STR5-150L
Machine Size	600×750×1800	600×750×1800	850×1250×2000
Effective Size Of Table	230×230	230×230	420×620
Column Diameter	Φ74	Φ74	Φ104
Shaft Diameter	Φ50	Φ50	Φ70
Spindle Taper	JT6	JT6	B18
The Distance From The Time Spindle To The Time Center On The End Of The Time Column	180mm	180mm	220mm
Principal Axis Stroke	70mm	100mm	120mm
Spindle Speed	Optional	Optional	Optional
Motor Power	1.8Kw	1.8Kw	2.3Kw
Maximum Hole Diameter	S45C/M12	S45C/M12	S45C/M16
Gross Weight	160Kg	170Kg	280Kg
