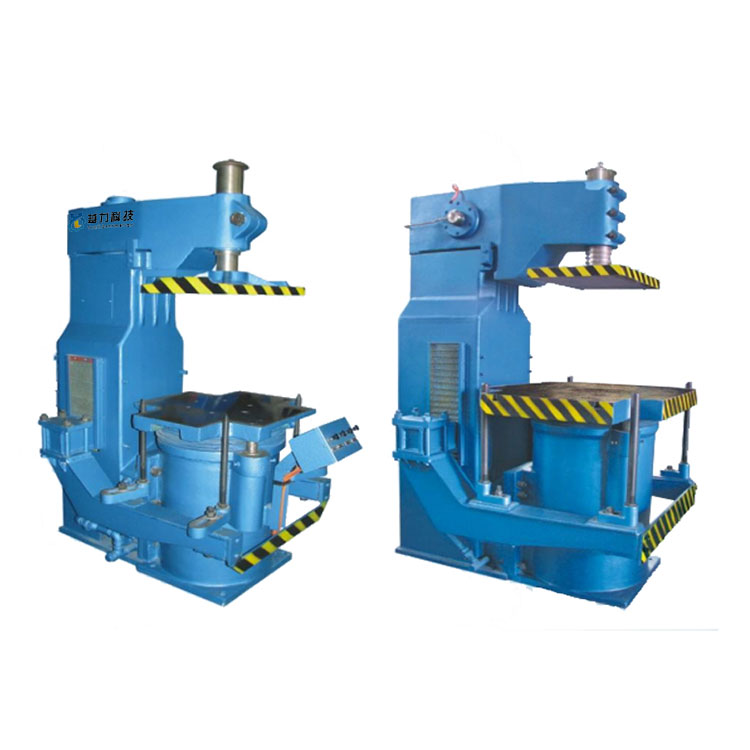

Lower Top Rod Micro Vibration Molding Machine

China Lower Top Rod Micro Vibration Molding Machine Factory Directly Supply.

Send Inquiry

Product Description

As the professional manufacturer, we would like to provide you Lower Top Rod Micro Vibration Molding Machine. And we will offer you the best after-sale service and timely delivery.

The equipment has high compaction strangth, good sand mold compactness, accurate castings,full and smooth;

Now air cushion micro-selamic structure,low production nolse:

Automaticaly lower the ejector pin and cject the bok,with low labor intenaly, fast modeling and high output value:

It is especlally sultable for mass production of large plate sand castings and deep hole castings:

We can halp customers design and manufacture molds,tallored producta,teat in the company,cuatomer accaptance,provide one-atop aervice.

MAIN SPECIFICATIONS AND TECHNICAL PARAMETERS

More-stration rg nachine	Contents	Z146K	Z147K	Z148F	Z149B1
	Innar sizs of atandard sand box	630x500x200mm	700x630x250 mm	800x630x350 mm	900x730x350 mm
	Innersize of sand box	700x600x250mm	800x650x250 mm	1050x1050x250mm	1200x1200x200mm
	Lifling stroke	250mm	250mm	350mm	350mm
	Con roke	180mm	180mm	200mm	200mm
	Pressune atningh	400kg	550kg	750kg	1000kg
	Distance between platen and platform	498	570	740	798
	Net weight of equipment	1550kg	2000kg	5200kg	6000kg
	Equipmant dimen	1080x700x1590 mm	1120x750x1700 mm	1740x1130x2320 mm	1740x1160x2420 mm
