Product Description

Model 300 dryer parameters

Name	Model number	Quantity	Remark
Drying Machine	Type 300	A set	The effective volume is one third of the volume of the drum
Motor Power	2.2 KW	A set
Reduction Gear	Cycloidal pin reducer	A set
Dehumidifying Fan	110W	A set

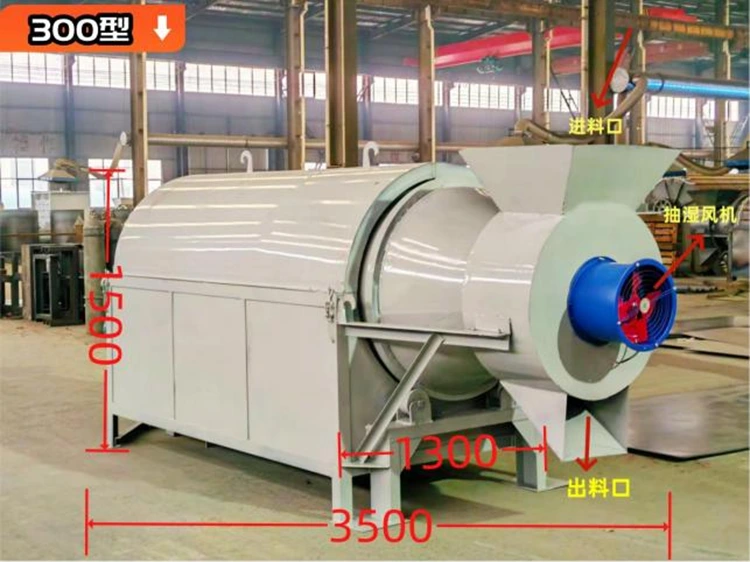

Overall Size	3500 * 1300 * 1500	A set
Internal Dimension	2000 * 1000 * 3	A set
Electric Heating Power	30KW
Distribution Cabinet	Set up	A set	Controlled temperature

It generates heat through the internal heating device, using the principle of heat conduction, convection, etc., so that the wet material entering the equipment in the rotation process is fully in contact with the hot air, and the water is continuously evaporated and discharged, so as to achieve the drying of the material. It can be used in food, chemical industry, agriculture and other industries, such as dried grains, Chinese medicinal materials, chemical raw materials and so on.
