Flat Bed Tool Setting Machine

Serial number

Name

Parameters

Other explanations

1

Control system

Huaxing System

2

Main shaft

The rotational speed is 0-300 per minute, and the diameter of the main shaft through hole connection pipe is Φ48

3

Lead screw

X-axis pitch: 6mm

The maximum stroke of the X-axis is 600mm in diameter

Z-axis pitch: 8mm

The maximum stroke of the Z-axis is 350mm

Start the lead screw

4

Spindle motor

4KW servo spindle

5

Servo motors and drivers

One set of X-axis servo motor and one set of Z-axis servo motor

The maximum position speed of the X-axis and Z-axis is 18- 24m/min

Huaxing System

The factory standard maximum movement is in the Z direction: 14m/min

X direction: 12m/min

6

Clamping method

Rotary cylinder

Spring chuck (custom-made)

7

Guide rail

Taiwan Shenghe

Roller

8

Bed rotation

Φ360mm

9

Workbench length

400mm

10

Rotary diameter of the workbench

Φ80

11

Repeat positioning

0.005mm

12

Knife rest form

Row knife

13

Machine tool Specification (mm)

1650 in length *1200 in width *1600 in height

14

Machine tool weight (kg)

1000kg

15

Bed structure

Cast bed frame

16

Protective sheet metal

Full protection

17

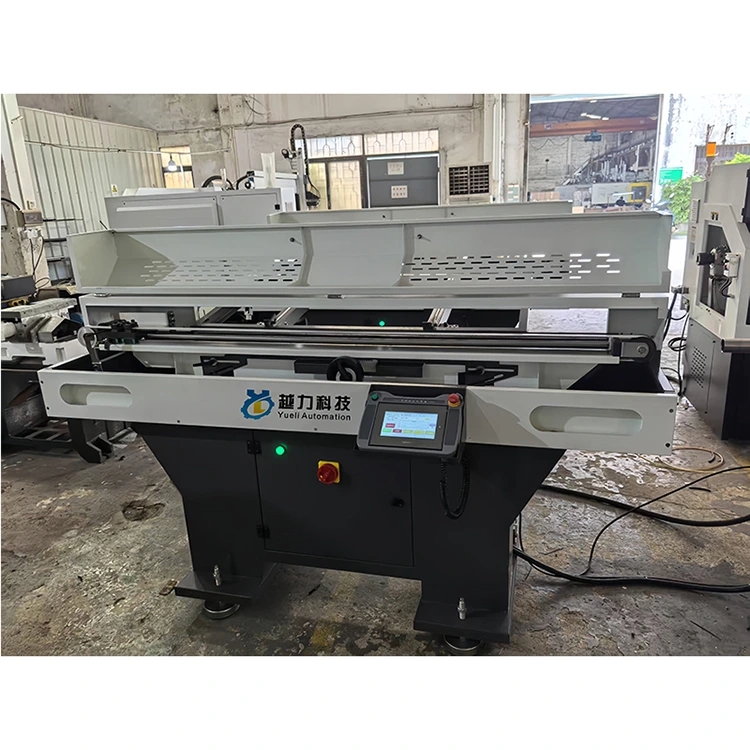

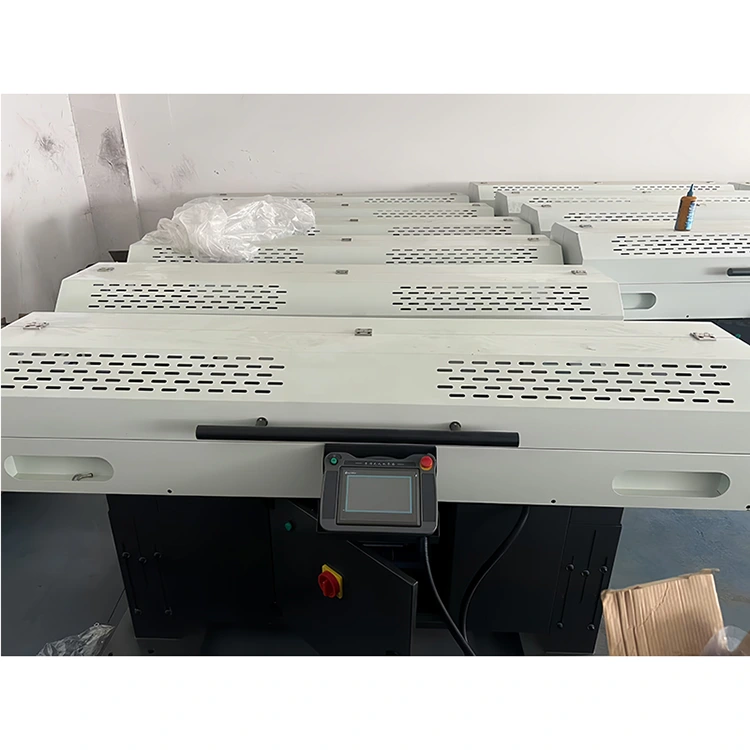

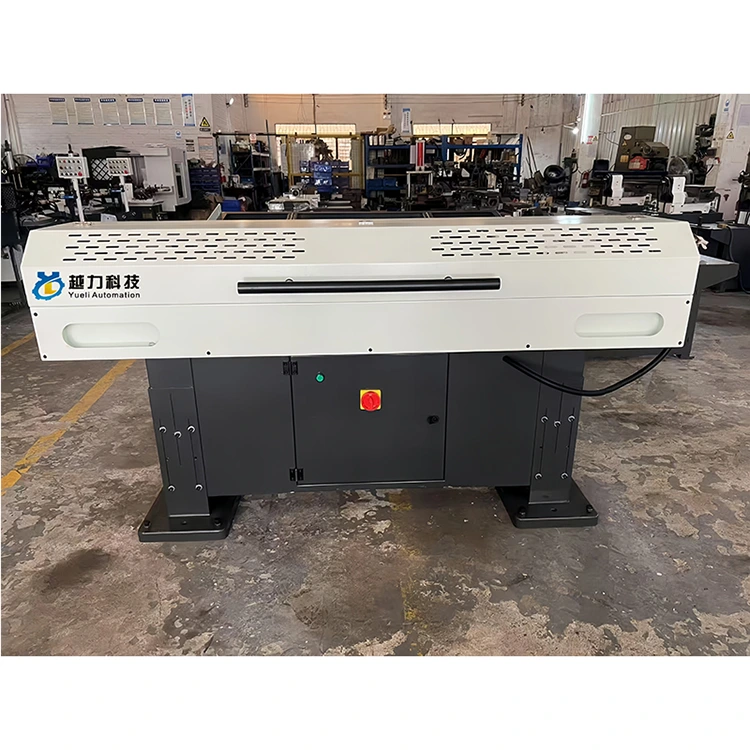

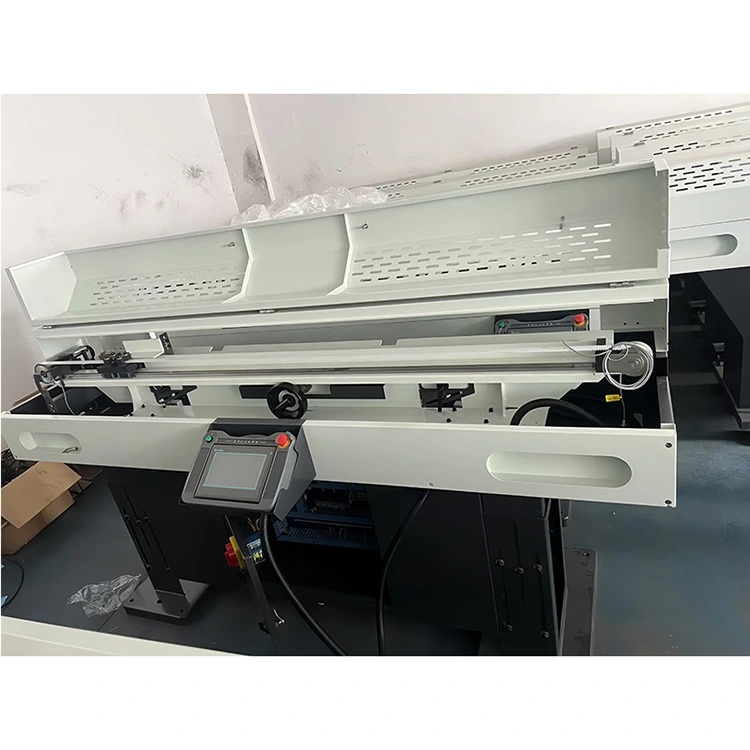

Feeding machine

The material length is 1500mm and the outer diameter is Φ15-Φ40mm

The external dimensions are 2100*600*1300mm

Process materials such as Φ20/Φ24/ hexagonal diagonal 27/ hexagonal diagonal 35, etc

18

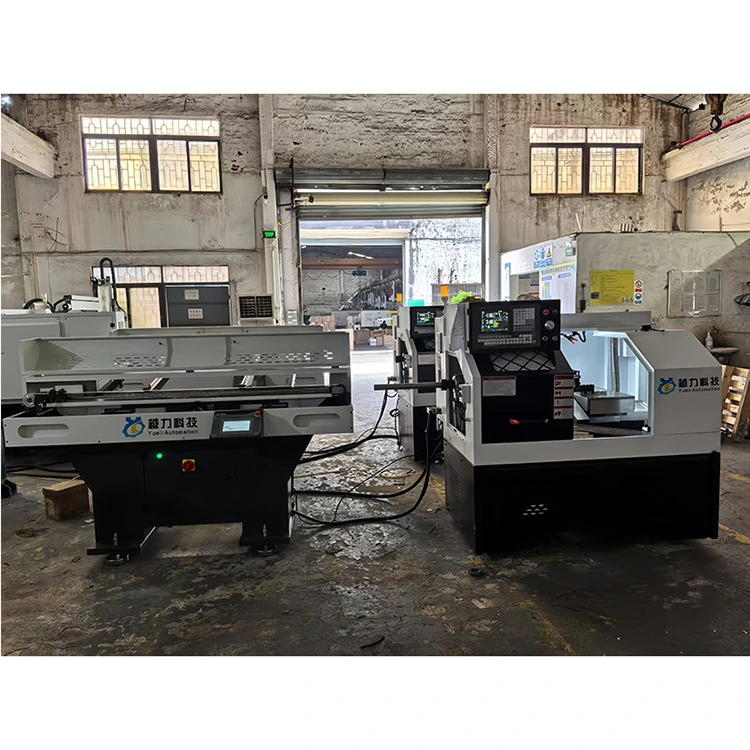

Combined dimensions of machine tools

3800*1200mm

Serial number

Name

Quantity

Other explanations

1

Tools

Two sets

2

System Instruction Manual

Two books

Product name

Type number

Quantity

Unit price: (yuan) per unit

Amount (yuan)

Remarks

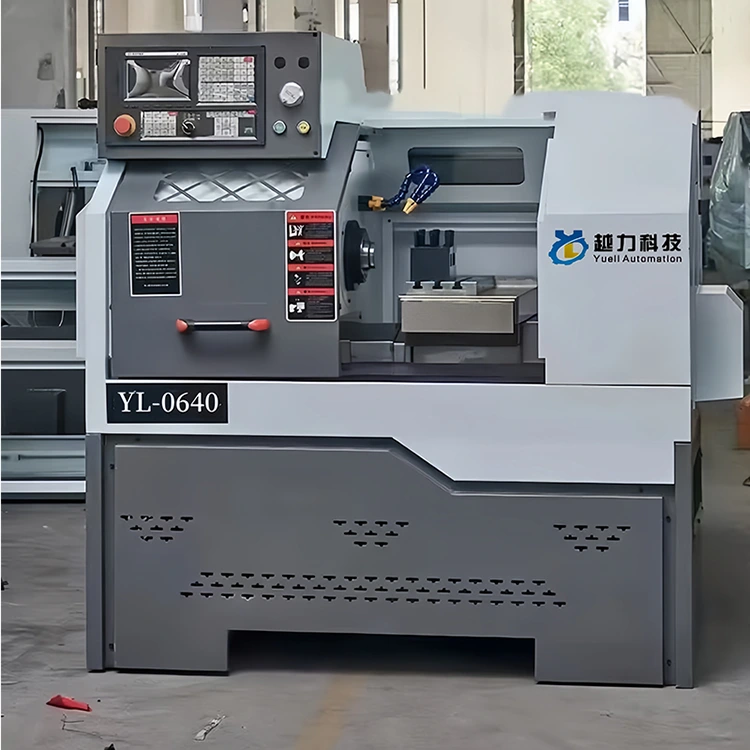

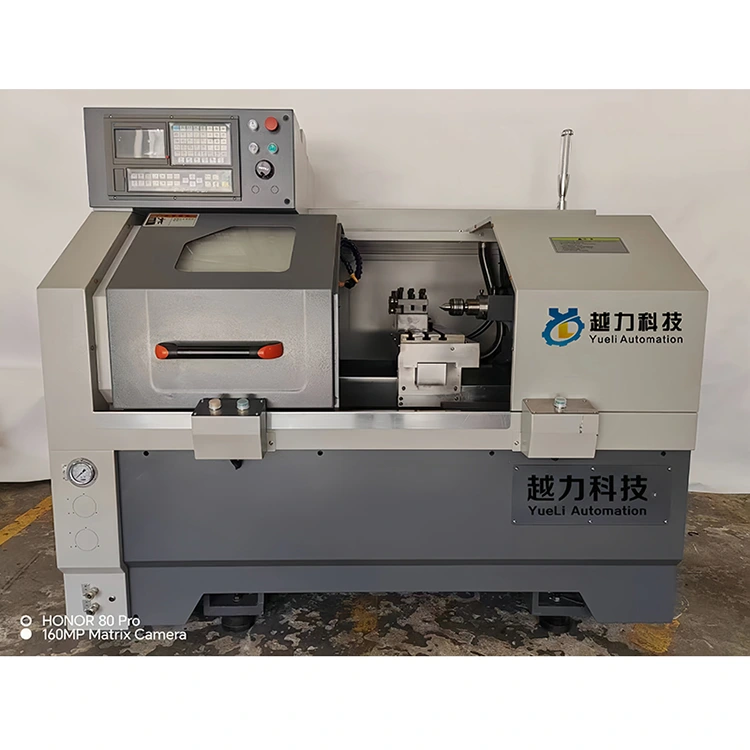

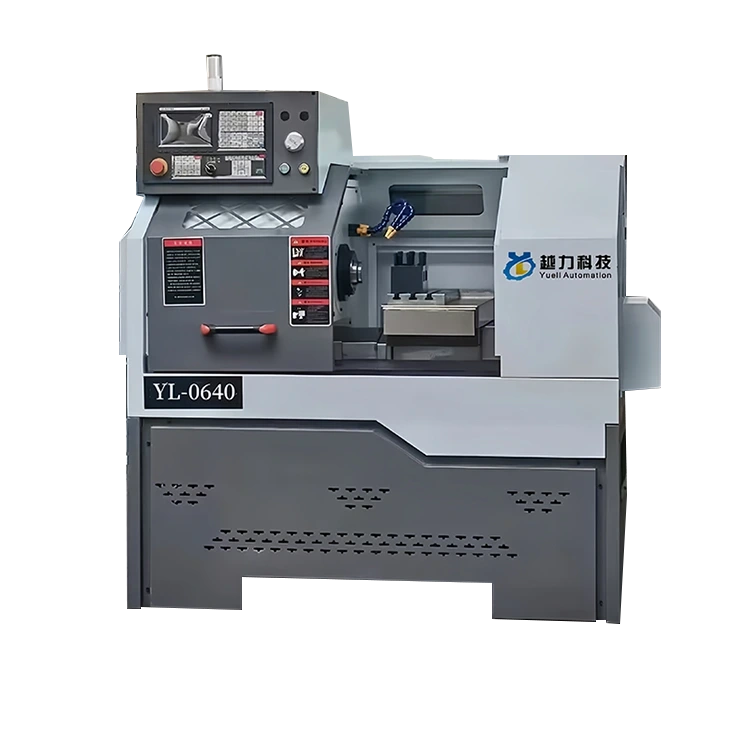

CNC lathe

CK-0640

1

43000.00

48000.00

Including taxes

Feeding machine

1

18000.00

21000.00

Total price and tax (in capital letters) :                                  ￥ :69000.00元
