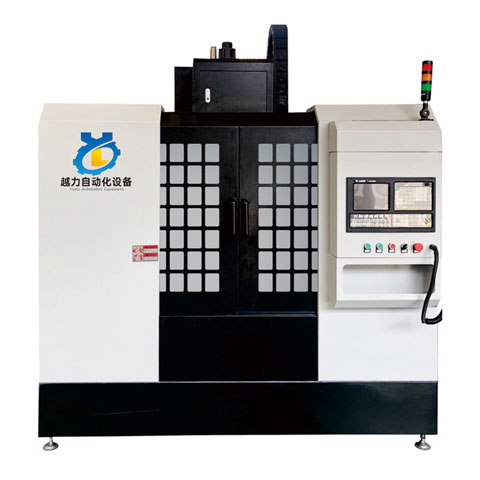

Six Axis Processing Center

Low Price Quality Six Axis Processing Center In Stock. YueLi is Six Axis Processing Center manufacturer and supplier in China.

Send Inquiry

Product Description

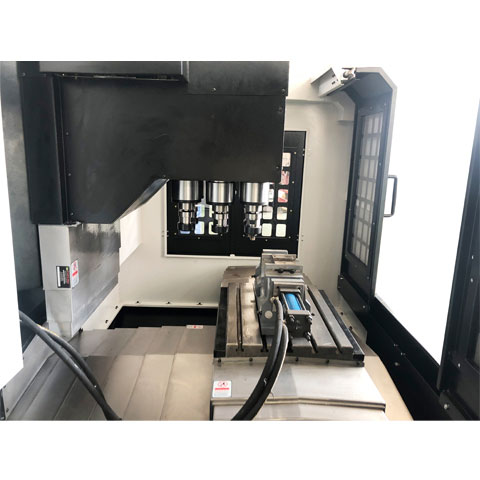

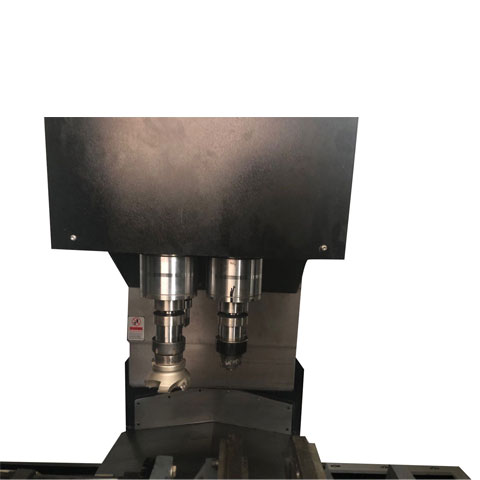

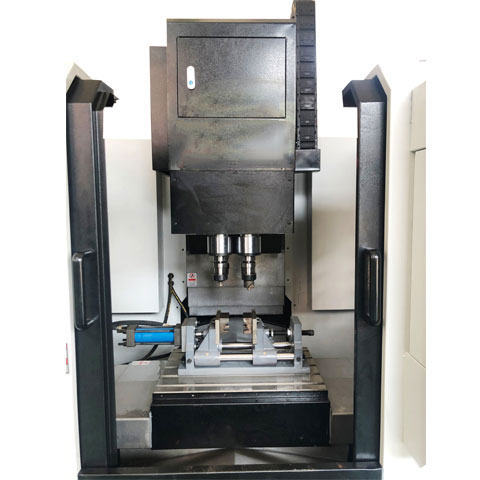

Vertical six-spindle drilling, tapping and milling compound machine

Six Axis Processing Center Function

YueLi is Six Axis Processing Center manufacturer and supplier in China.

1、The machining efficiency of one machine instead of three CNC changing time in the machining process

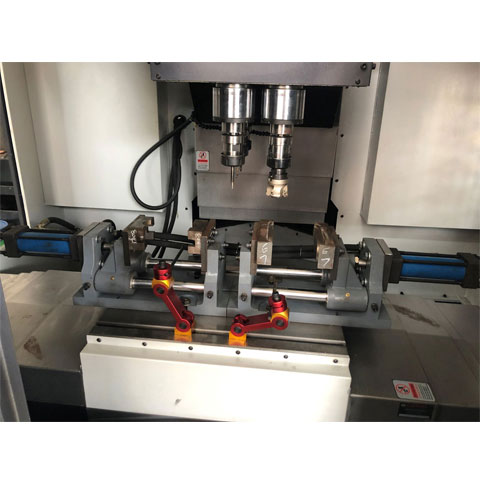

2、One-time clamping, can place 8-12 workpiece, complete drilling, tapping, milling process, heavy-duty cutting

3、Servo tapping

4、Milling Plane、Interal and external arc milling

5、Circular drilling and tapping

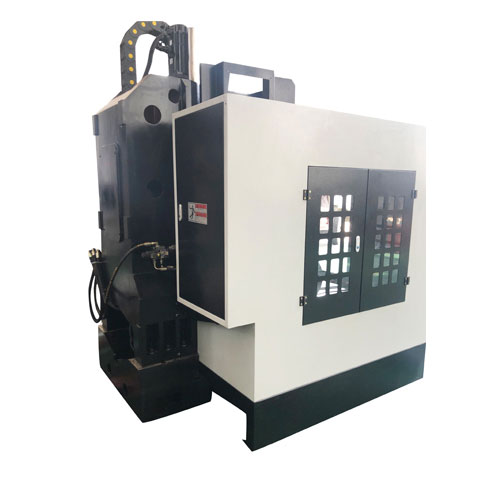

Six Axis Processing Center Structure

● High rigidity structure, best stability

● Suitable for medium and large quantities of copper, zinc alloy, aluminum alloy, stainless steel parts processing

● High Quality Mihanna Castings, the structure of finite element analysis, to achieve the best stability

● X, Y, Z axis are used on the Taiwan HIWIN precision class large diameter screw Rod, and to be appropriately pre-pressed, the tail uses pre-pull Shooting

● The three axles are all made of super-heavy rail with high precision and high load-bearing

Main technical parameters

Item name	Unit	Model Number
Item name	Unit	ZSK560

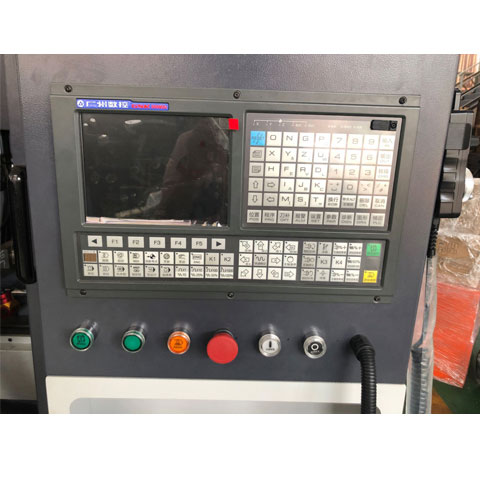

Numerical Control System	Matching	KY CNS System
Hydraulic Machinery	Standard fitting	CML
Spindle number		6
Spindle taper	#4	MT4
Spindle center distance	Mm120	120
Extendable length of spindle	Mm100	100
Diameter of spindle sleeve	Mm105	φ105
Spindle speed	r/min1-3000	1-3000
X / Y / Z feed rate	3000MM	3000MM
Spindle stroke (X axis)	600	600
Maximum drilling diameter (Copper Parts)	50MM	50MM
Table sizes	400*500	400*500
Table Travel (Y axis)	500MM	500mm
Middle drag stroke (Z axis)	500MM	500mm
Distance from spindle end to table end	150-650Mm	150-650mm
Machine size	200020002500	200020002500
Machine Weight	4000KG	4250KG
