Horizontal Four-axis Drilling And Milling Machine

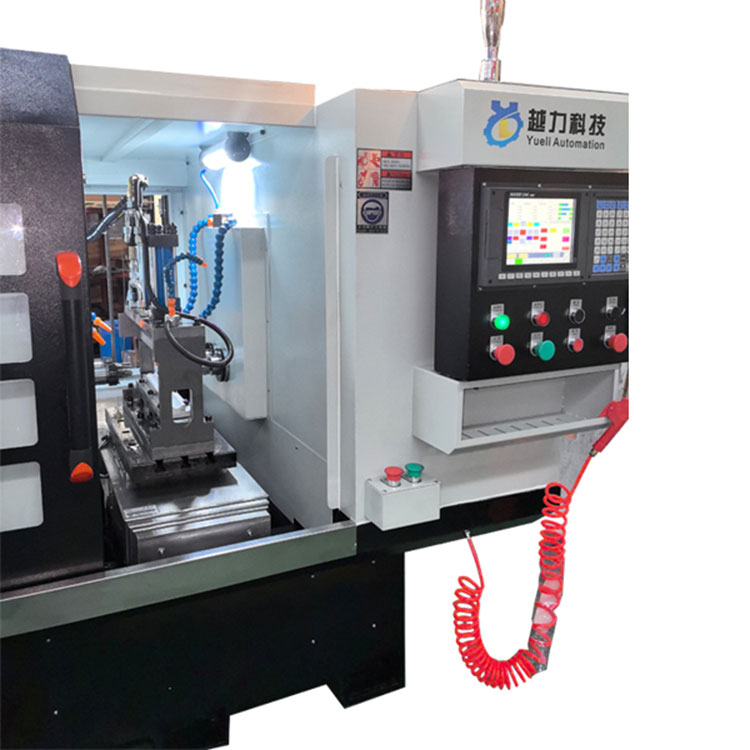

  • Horizontal Four-axis Drilling And Milling MachineHorizontal Four-axis Drilling And Milling Machine

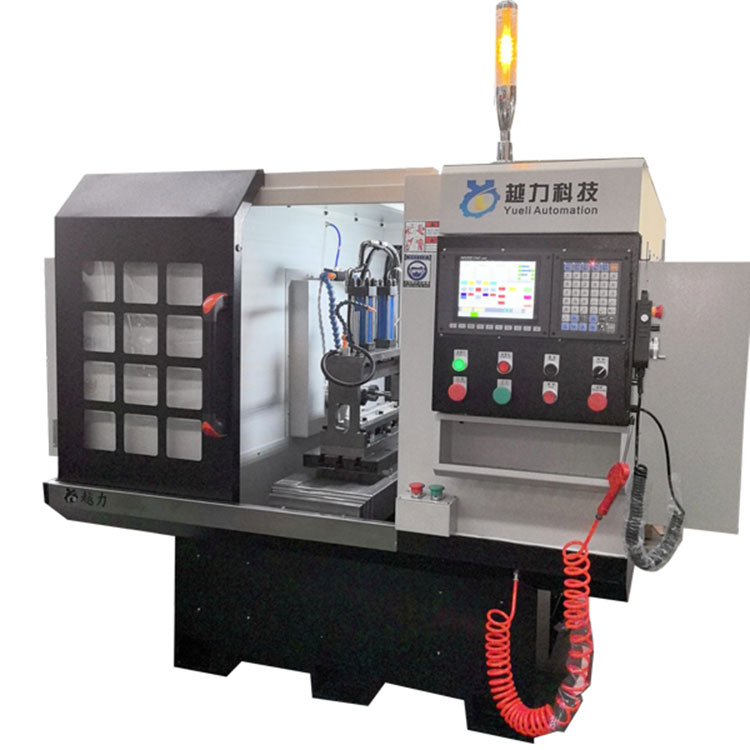

  • Horizontal Four-axis Drilling And Milling MachineHorizontal Four-axis Drilling And Milling Machine

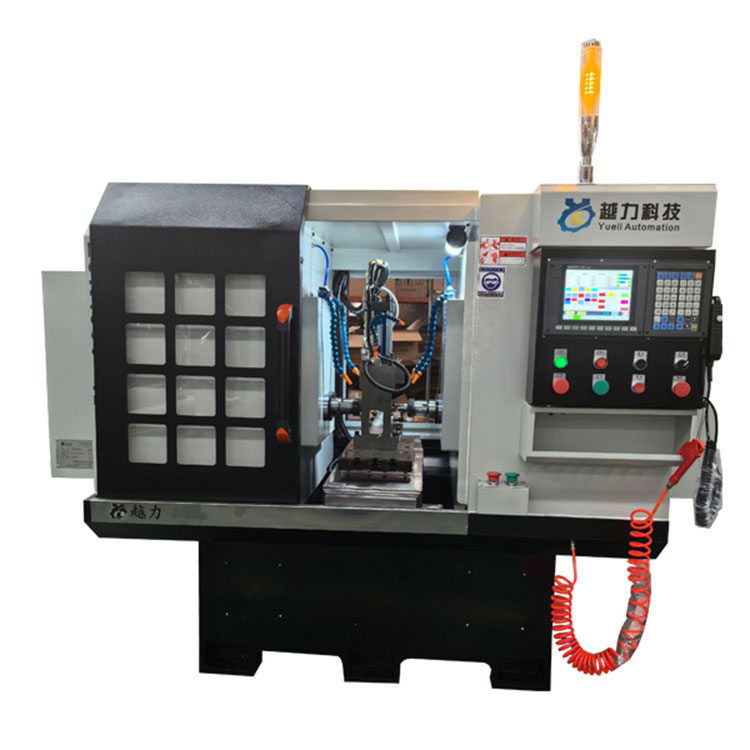

  • Horizontal Four-axis Drilling And Milling MachineHorizontal Four-axis Drilling And Milling Machine

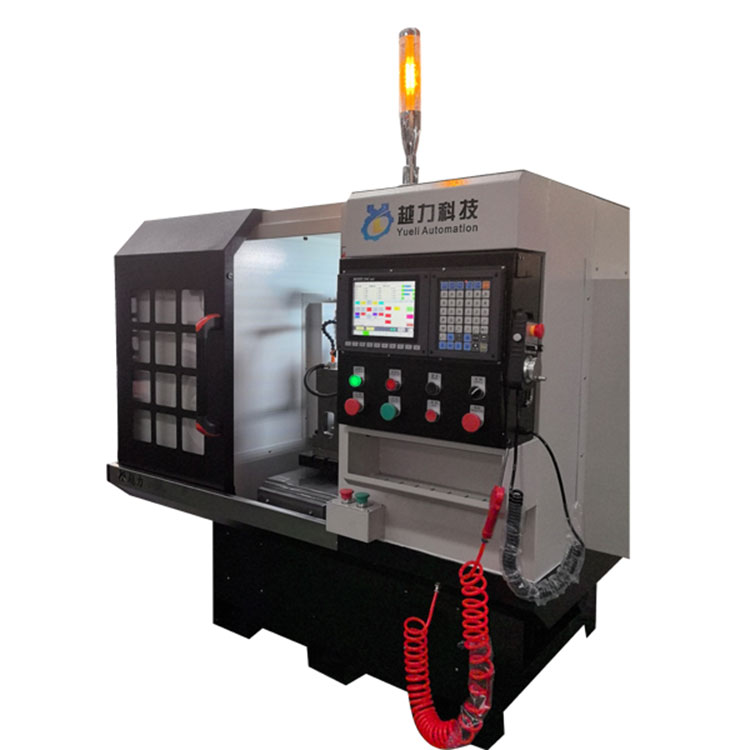

  • Horizontal Four-axis Drilling And Milling MachineHorizontal Four-axis Drilling And Milling Machine

Horizontal Four-axis Drilling And Milling Machine

High quality Horizontal Four-axis Drilling And Milling Machine is offered by China manufacturer YueLi. Buy Horizontal Four-axis Drilling And Milling Machine which is of high quality directly. 1.2 double spindle unit, simultaneous processing, complete synchronous drilling, synchronous tapping, workpiece concentricity, fast positioning.

Send Inquiry

Product Description

Horizontal four-axis drilling and milling machine for tee, water meter and water separator


1.2 double spindle unit, simultaneous processing, complete synchronous drilling, synchronous tapping, workpiece concentricity, fast positioning.

2.PLC programmable controller, sensitive response, easy to operate.

3. Precision electromagnetic control valve for hydraulic system, easy to adjust the pressure, smooth oil feeding through the hydraulic cylinder, adjustable stroke.

4. The installation size is the same and interchangeable.

5. Widely used in brass, steel, zinc alloy, aluminum alloy machining, such as valves, sanitary ware, doors and Windows, household appliances, auto parts and so on.


Application area


It is used to handle valves, pipes and sanitary ware, door control hardware, fire hydrants, car parts, etc. It is in line with the high precision and high precision of the machining machine. Beautiful appearance, low cost.


Technical highlights:


Hydraulic/servo sliding table for precise machining size and fast positioning speed.

It uses a PLC programmable controller that responds to responses and is easy to operate.

Hydraulic system adopts precision electromagnetic control valve, easy to adjust the pressure, hydraulic cylinder feed stability, adjustable stroke, uniform installation size, good interchangeability.


Technical parameters:

project

parameter

Drilling, milling spindle maximum stroke mm

100mm

Maximum stroke of tapping spindle mm

80mm

Spindle unit

YL50 (Double spindle Unit)

Spindle taper

MT4

Maximum milling diameter

φ50mm

Minimum working width

30

Table travel

300

Spindle speed

0-3000rmp

Spindle motor power

3KW

Spindle feed servo motor

1.2KW

Table feed servo motor

1.8KW

Overall power

About 15KW

Fixture mounting

pneumatic

Automatic lubrication system

Self-lubricating pump

Screw specification

HIWIN 3210

Chip removal system

Inclined chip removal

Protection system

Fully enclosed protective cover

Engine bed

HT200 integral casting



Process production:

1 Cast iron is reheated at high temperature and aged for more than six months.

2 Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).



3 Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraper

Scrape).

4, scientific production, traceability of the whole process of the quality control system.


Quality Assurance


1 When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured.

2 The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.03mm.

3 Check the verticality between Z-axis guide rail and working, and ensure that it is within 0.03mm.

4 The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.01mm.
