Machine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table
  • Machine Tools Cross Slide Work TableMachine Tools Cross Slide Work Table

Machine Tools Cross Slide Work Table

YueLi is China manufacturer & supplier who mainly produces Machine Tools Cross Slide Work Table with many years of experience. Hope to build business relationship with you.

Send Inquiry

Product Description

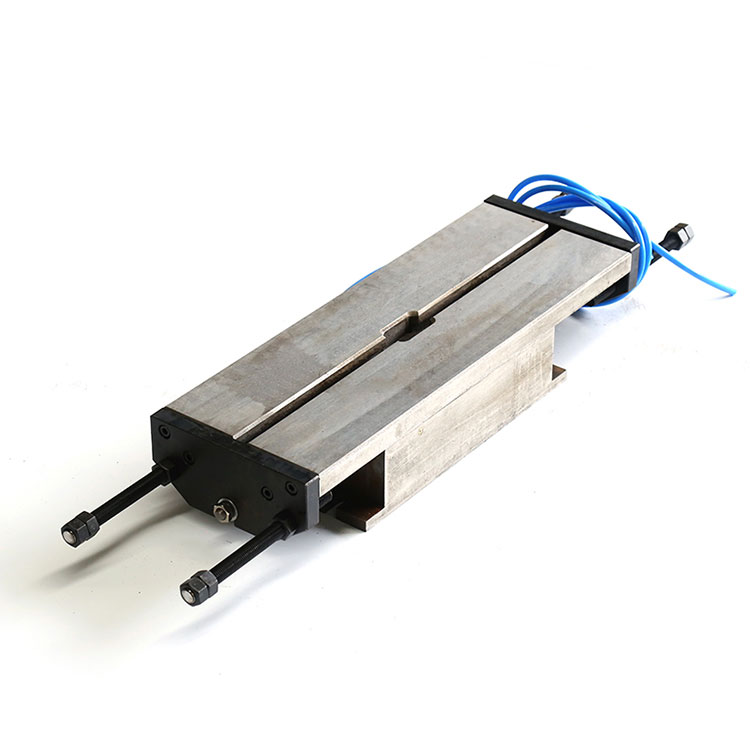

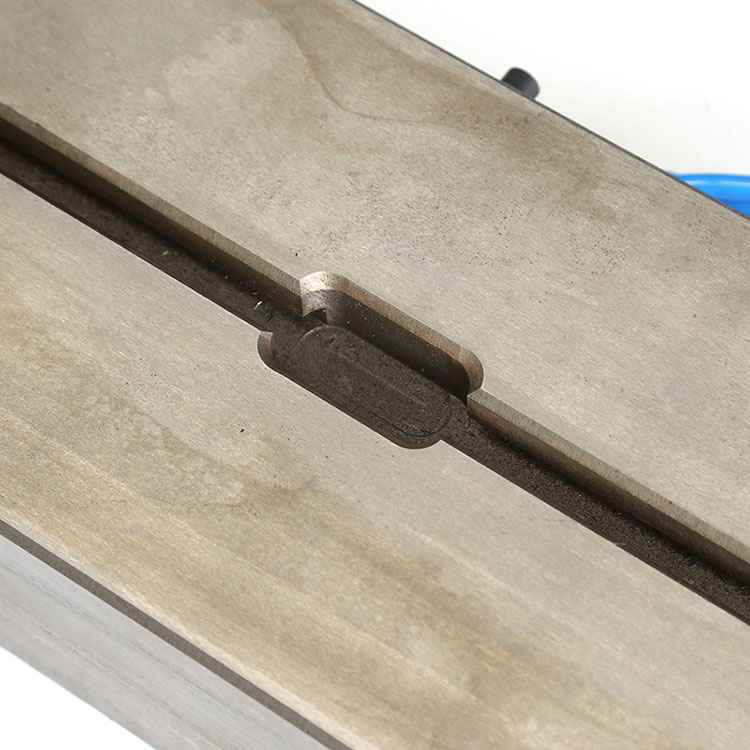

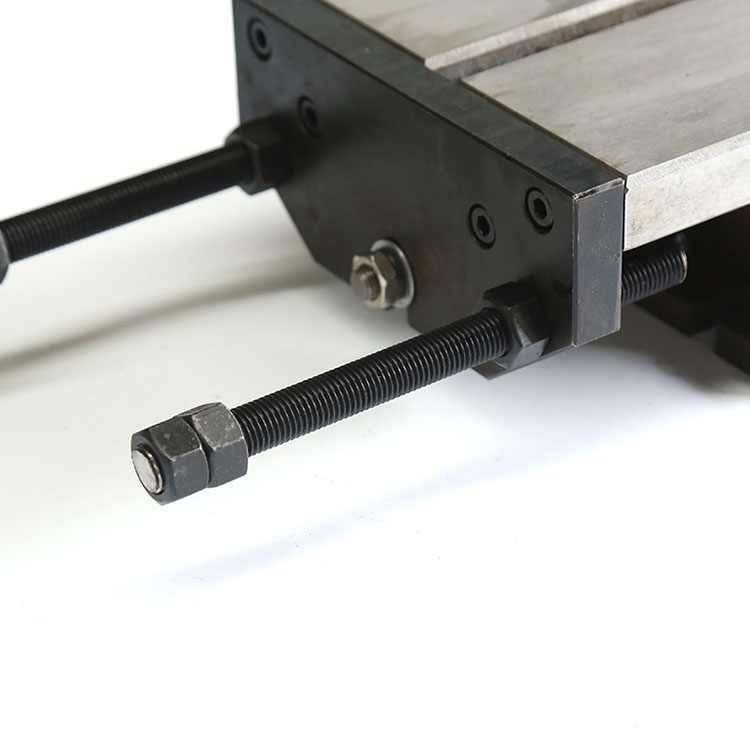

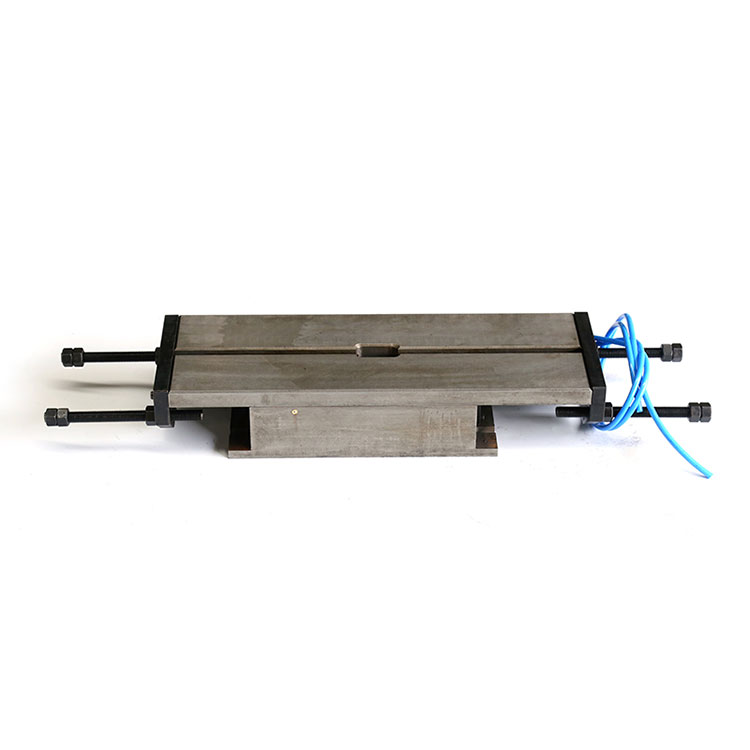

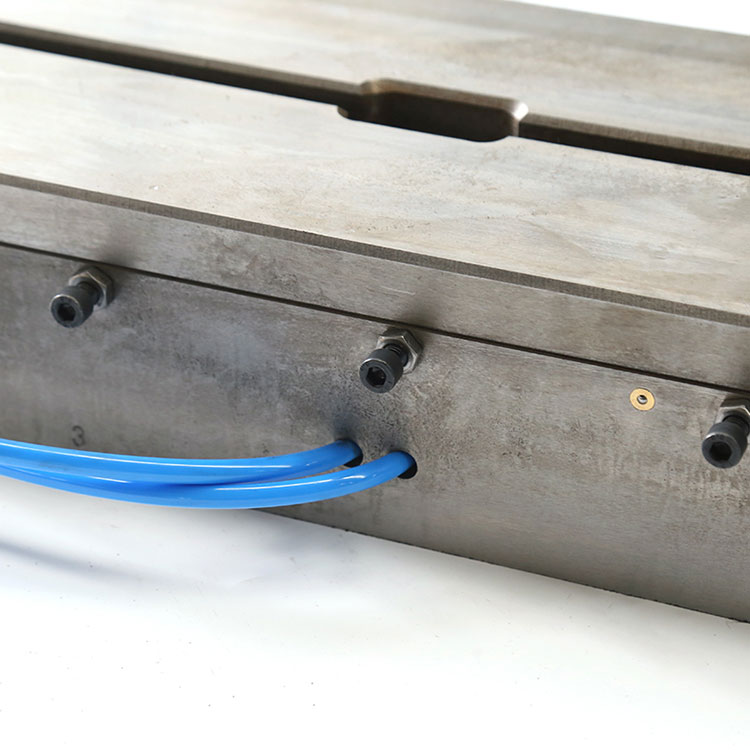

YueLi Machine Tools Cross Slide Work Table

YueLi is a professional China Machine Tools Cross Slide Work Table manufacturer and supplier, if you are looking for the best Machine Tools Cross Slide Work Table with low price, consult us now!

Machine tool mechanical slide bed cross slide, slide machine is usually called mechanical slide, cross slide machine tool, this machine tool is a combination machine tool.




Function overview:


The mechanical slide table is the main bed of combination machine tools, head milling machines, and other special machine tools. This slide adopts a double closed structure (between the two guide rails) with high precision; the precision grade uses plastic guide rail plates with good dynamic performance. The slide table has high rigidity, small thermal deformation and high feed stability. The mechanical slide table (machine tool slide table) consists of a machine tool bed, a slide plate, usually also called a pallet, a cylinder (screw), a gearbox, etc. Its structure is simple and easy to maintain. The working principle of the mechanical slide table is that the slide plate moves longitudinally on the bed due to its (cylinder) screw drive and the function of the gearbox. Various running speeds such as fast and slow are available.

Mechanical slide table The use and performance of mechanical slide table:

After installing the workpiece on the slide table, it can perform reciprocating motion. You can also install the power head and other related accessories on the slide table, and then perform various cutting, drilling and boring movements on the workpiece through the movement of the slide table. Use multiple different specifications of the workpiece. The slide table combination can process complex parts or carry out mass production. The slide table produced by our factory can move quickly and slowly. It is an important machine tool accessory in the mechanical processing industry.

lTechnical parameters




This parameter is for reference only. Please consult customer service for details. This product can be customized.


Model

workbench

Trip

high

screw base

Line width

hole

A

B

C

D

E

F

G

H

YL-200×520

255×225

250

165

8-Φ11

20

Φ50

560

730

225

152

Φ65

255

210

105

YL-250×450

255×300

100

155

8-Φ11

28

Φ50

480

600

300

155

Φ65

255

200

168

YL-255×600

255×300

250

155

8-Φ11

28

Φ50

630

850

300

155

Φ65

255

200

168

YL-255×900

255×360

480

155

8-Φ11

28

Φ50

930

1350

360

155

Φ65

255

200

168



Application display:

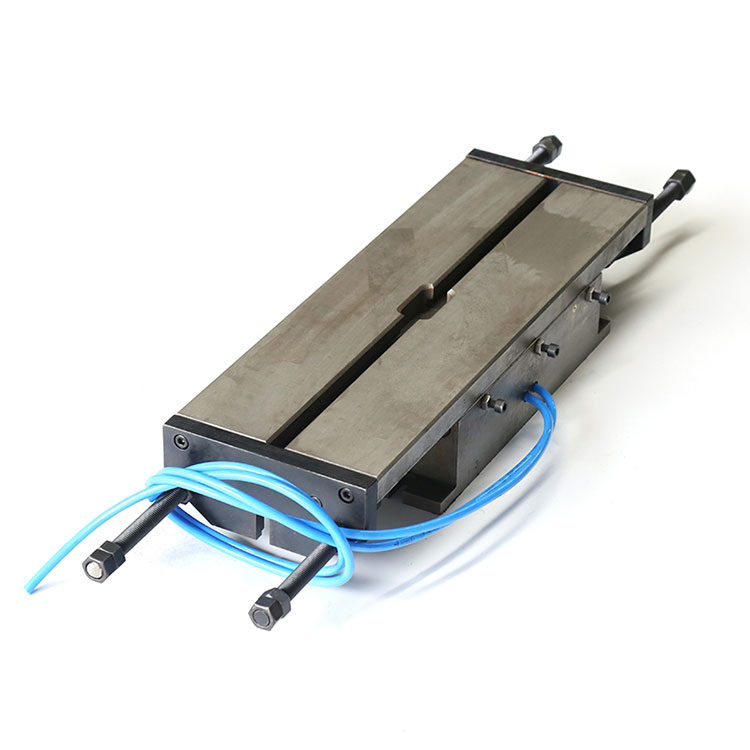

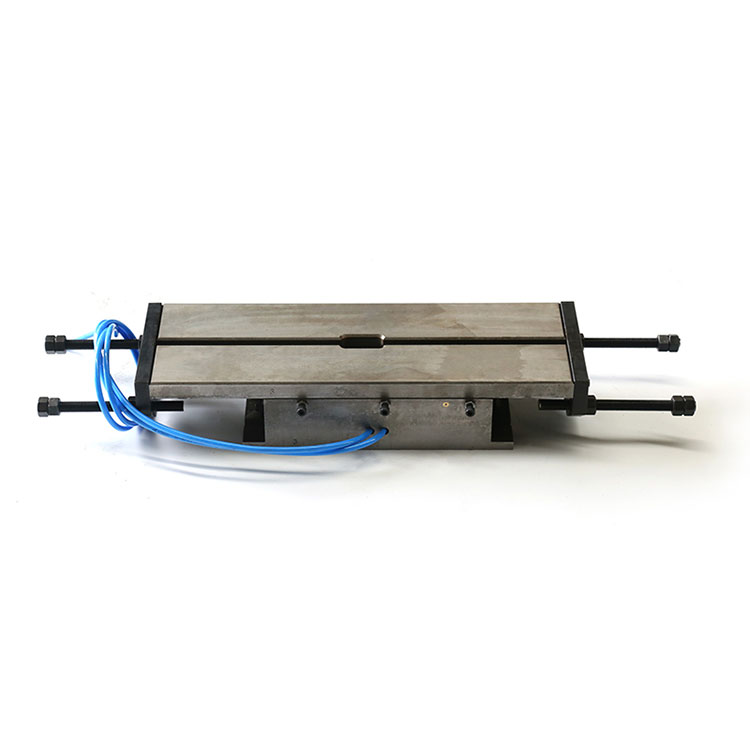

The working principle of pneumatic slide table

The pneumatic sliding table uses a gas compressed cylinder as power to transmit the compressed gas to the inside of the cylinder, so that the lower slide can achieve translational movement of the workpiece. Pneumatic slides have the characteristics of fast speed, smooth movement, and long service life, and are widely used in high-speed processing and mass production fields.

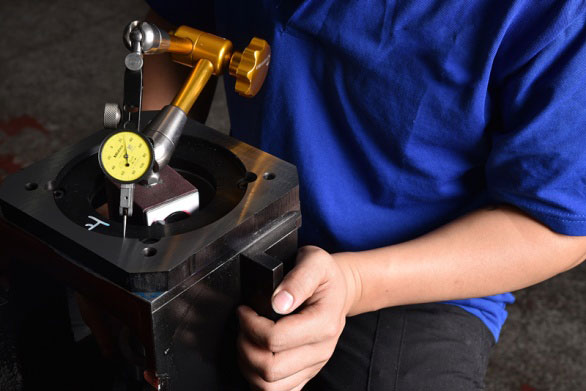

Process production:


1.Cast iron is reheated at high temperature and aged for more than six months.

2.Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).

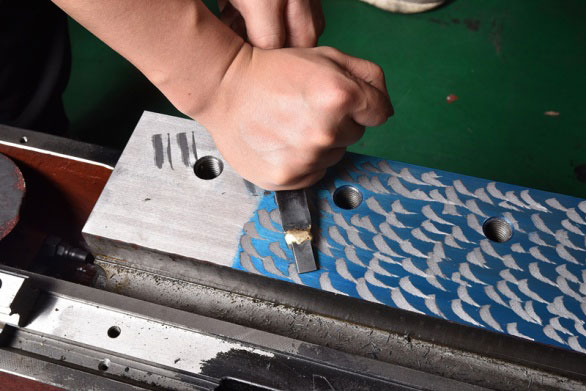

3.Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraping).



4.scientific production, traceability of the whole process of the quality control system.


Company Profile


Yue Li Technology is a research and development, sales, production as one of the science and technology enterprises, after years of hard work and development, products include 5G terminal processing center, drilling and tapping machine, five head carving and milling machine, five linkage 3D copy polishing machine, five axis jewelry inlay stone carving and milling machine, peeling machine, gantry processing center, high-speed carving and milling. Forming machine, low pressure casting machine, gravity die casting machine, electric furnace, (automatic) core shooting machine, sand mixing machine, (CNC) drilling and tapping machine, processing center, engraving machine, automatic polishing machine, peeling machine, grinding machine and other products.
