Product Description

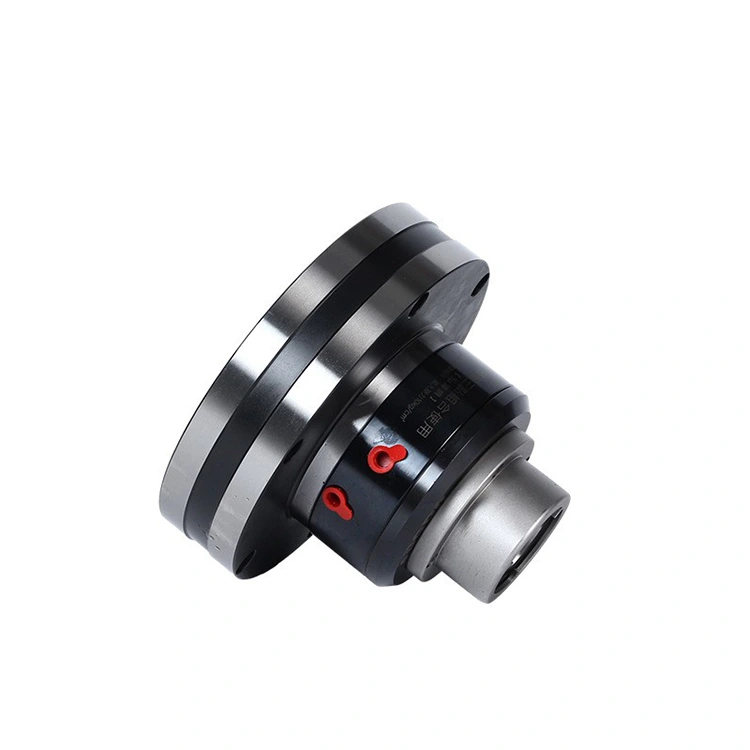

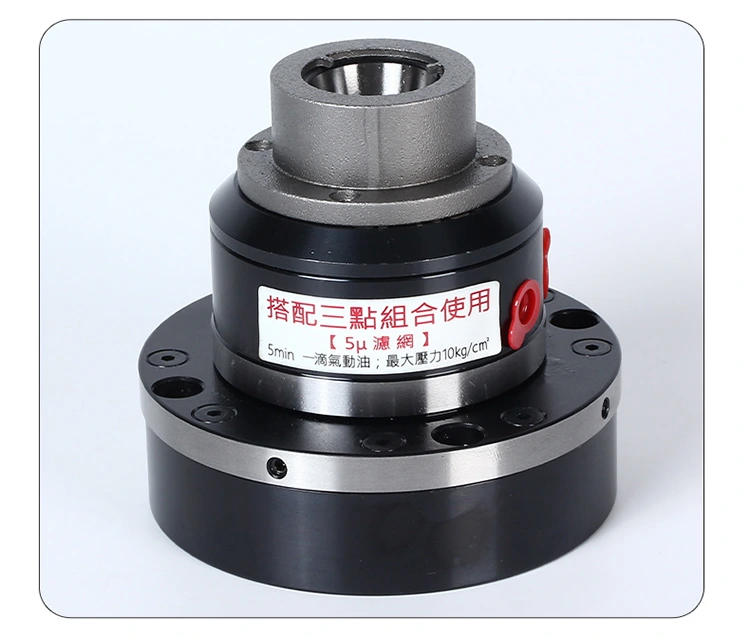

High-speed rotary pneumatic chuck

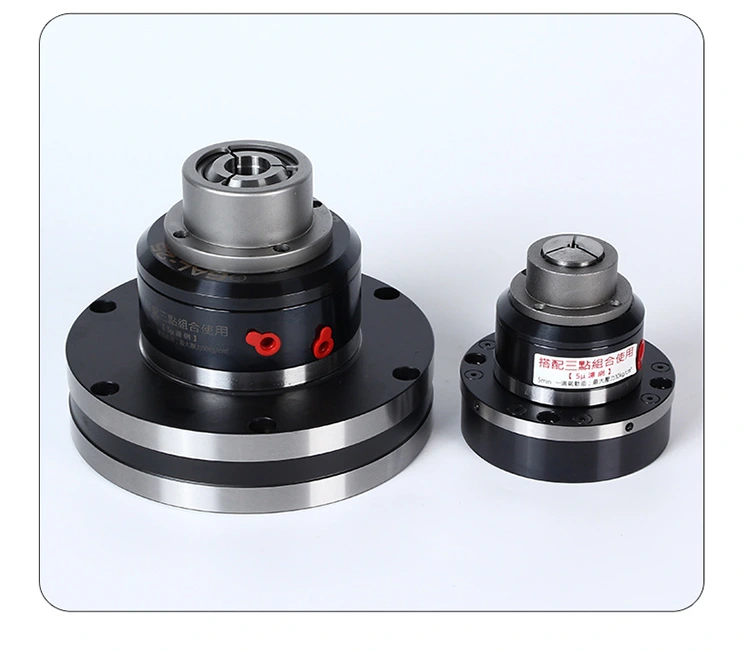

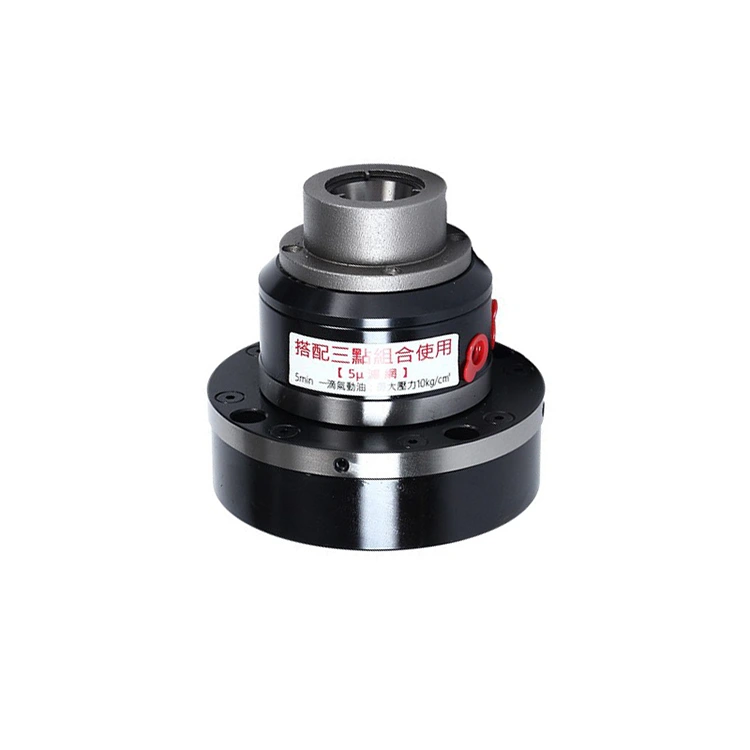

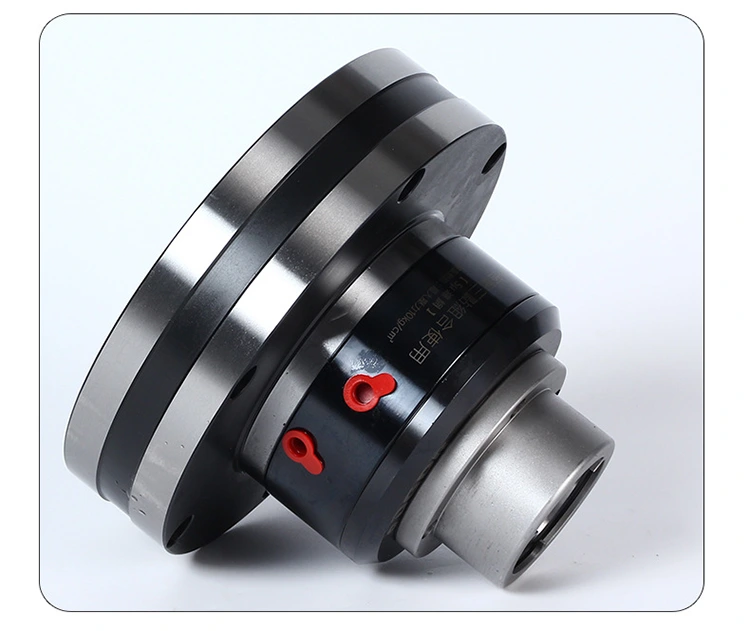

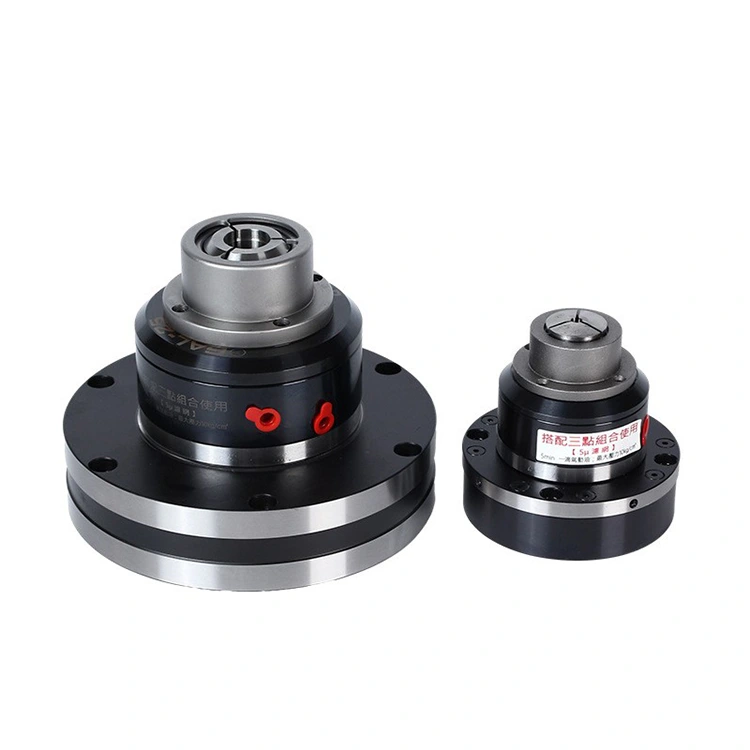

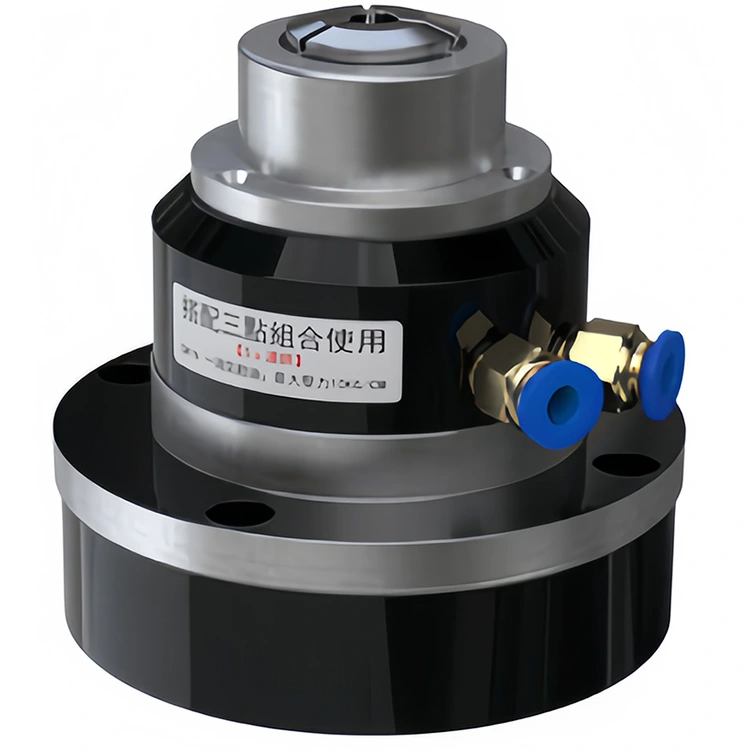

The GAL-25 is a high speed rotary pneumatic chuck. It belongs to a kind of pneumatic chuck, often used in CNC machining, precision grinding machine and other precision machining equipment, with high clamping accuracy, can achieve stable clamping of the workpiece, help automatic processing process

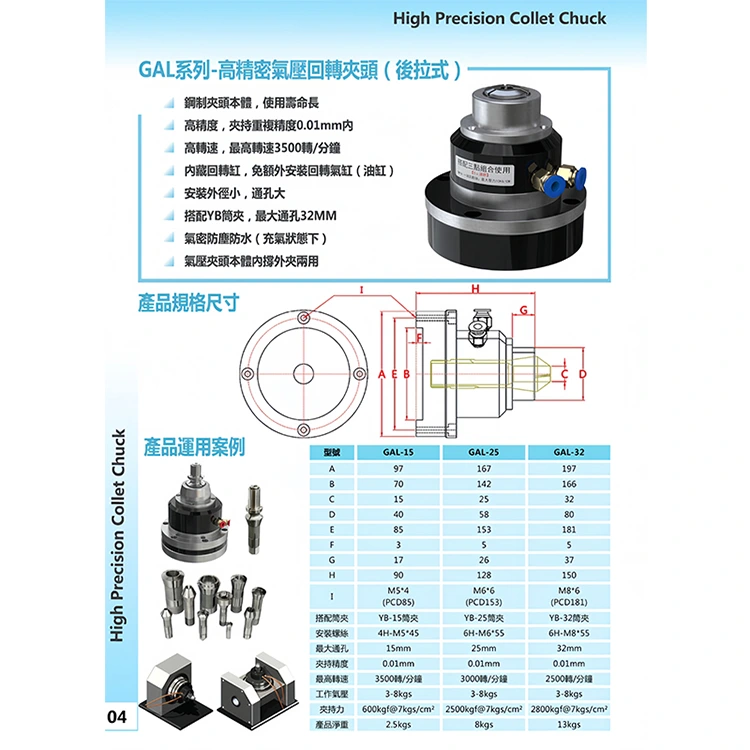

The parameters are as follows:

Model number	GAL-15	GAL-25	GAL-32
A	97	167	197
B	70	142	166
C	15	25	32
D	40	58	80
E	85	153	181
F	3	5	5
G	17	26	37
H	90	128	150
I	M5*4 (PCD85)	M6*6 (PCD153)	M8*6 (PCD181)
Matching collet	YB-15 clip	YB-25 clip	YB-32 clip
Mounting screw	4H-M5*45	6H-M6*55	6H-M8*55
Maximum aperture	15mm	25mm	32mm
Clamping accuracy	0.01mm	0.01mm	0.01mm
Maximum speed	3500 RPM	3000 RPM	2500 RPM
Working pressure	3-8kgs	3-8kgs	3-8kgs
Clamping force	600kgf@7kgs/cm	2500kgf@7kgs/cm	2800kgf@7kgs/cm
Net product weight	2.5kgs	8kgs	13kgs
