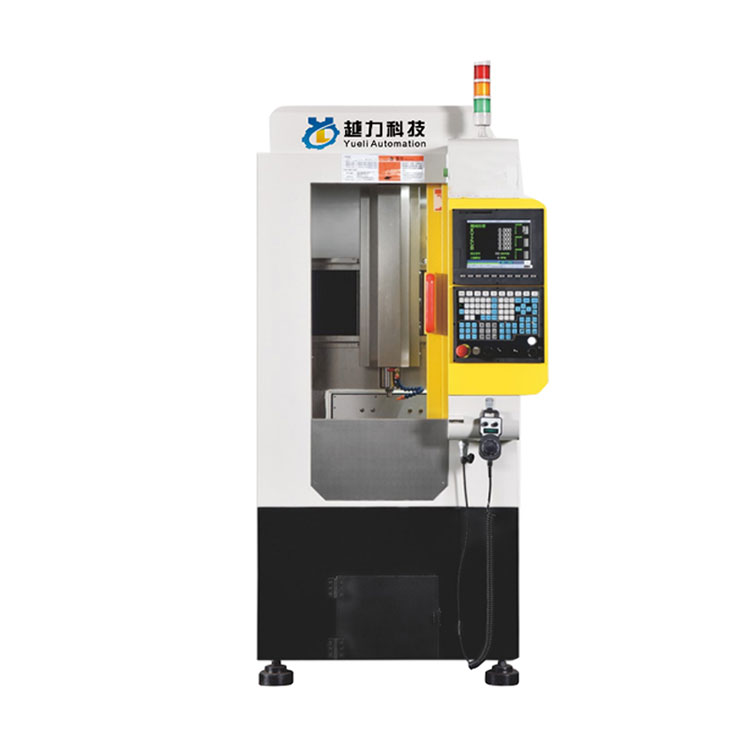

Five-Axis Jewelry Crafts CNC Engraving Machine
  • Five-Axis Jewelry Crafts CNC Engraving MachineFive-Axis Jewelry Crafts CNC Engraving Machine

Five-Axis Jewelry Crafts CNC Engraving Machine

China Five-Axis Jewelry Crafts CNC Engraving Machine Factory Directly Supply. YueLi is Five-Axis Jewelry Crafts CNC Engraving Machine manufacturer and supplier in China.

Send Inquiry

Product Description

Five-axis jewelry crafts CNC engraving machine

Wholesale quality discount Five-Axis Jewelry Crafts CNC Engraving Machine. YueLi is Five-Axis Jewelry Crafts CNC Engraving Machine manufacturer and supplier in China.


Functional Overview:


1. Using reducers imported from Germany and Tanzi dividers from Taiwan, the five-axis linkage effect is smooth and rigid.

2. The tool magazine adopts a semicircular design method, which enables fast tool change and reduces the risk of machine collision.

3. The main structure is made of high-strength cast iron and has undergone stress-relief annealing and natural aging treatment. The accuracy of the bed is long-lasting and stable, and it will not deform for a long time;

4. It adopts an automatic oil injector for orbital lubrication, and controls the oil injection amount intermittently and quantitatively, which can lubricate moving parts for a long time.


Mechanical parameters:


Mechanical parameters

unit

YL-5-400T

Workbench travel (X/Y/Z)

mm

400x260x200

Workbench area

mm

400x300

T-slot

mm

Customer settings

weight capacity

kg

80

Distance from spindle center to column

mm

320

Distance from spindle nose to worktable

mm

0-260

Three axis motor power

KW

0.75x0.75x0.75

X.Y.Z rapid feed

m/min

15/15/15

controller


SYNTEC 200MA

Spindle end specifications


φ80

Spindle speed

rpm

40000

Spindle power

HP(KW)

3.2

positioning accuracy

mm

±0.003/300

Repeatability

mm

±0.002/300

Air pressure specifications

kg/cm²

6-7bar

physical dimension

mm

1600x980x2000

Weight (approximately)

KG

1400



Product display:



Craft production:

1.Cast iron is reheated at high temperature and aged for more than six months

2.Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.)



3.Superb scraping technology (motor seat scraping, spindle end face scraping, column mounting surface scraping)



4、Scientific production, traceability of the whole process of the quality control system



Quality assurance


1、When the pitch error is detected, the straightness of the linear guide in xx and yy directions can be detected at the same time to ensure the machining and assembly accuracy of the machine parts. The formal positioning accuracy and repeated positioning accuracy of the machine tool are measured

2、The verticality of the main shaft and the working plane accuracy of the whole machine must be guaranteed within 0.01mm

3、 The verticality between Z-axis guide rail and working is required to be guaranteed within 0.01mm.

4、The machine detects the verticality of xy axis guide rail, and the accuracy is required to be within 0.005mm.



Application field


Suitable for small and medium-sized box class, plate class, plate class, valve class, shell class, mold and other complex parts of a variety of small and medium-sized batch processing, widely used in precision parts, precision mold, 5G products, hardware, auto parts, medical equipment industry.




Yueli Technology is a technology enterprise integrating R&D, sales and production,After years of hard work and development, the products include 5G terminal processing centers, drilling and tapping machines, five-head engraving and milling machines, five-linkage 3D profiling polishing machines, five-axis jewelry inlaid stone engraving and milling machines, peeling machines, gantry processing centers, high-speed Engraving and milling, forming machine, low-pressure casting machine, gravity die-casting machine, electric furnace, (automatic) core shooter, sand mixer, (CNC) drilling and tapping machine, machining center, engraving machine, automatic polishing machine, peeling machine, grinding machine, etc. series of products.
