Environmental Sand Belt Polishing Machine

As a professional Chinese manufacturer and supplier of sand belt polishing machines, YueLi can provide you with high-quality, environmental sand belt polishing machines.

What is an Environmental Sand Belt Polishing Machine?

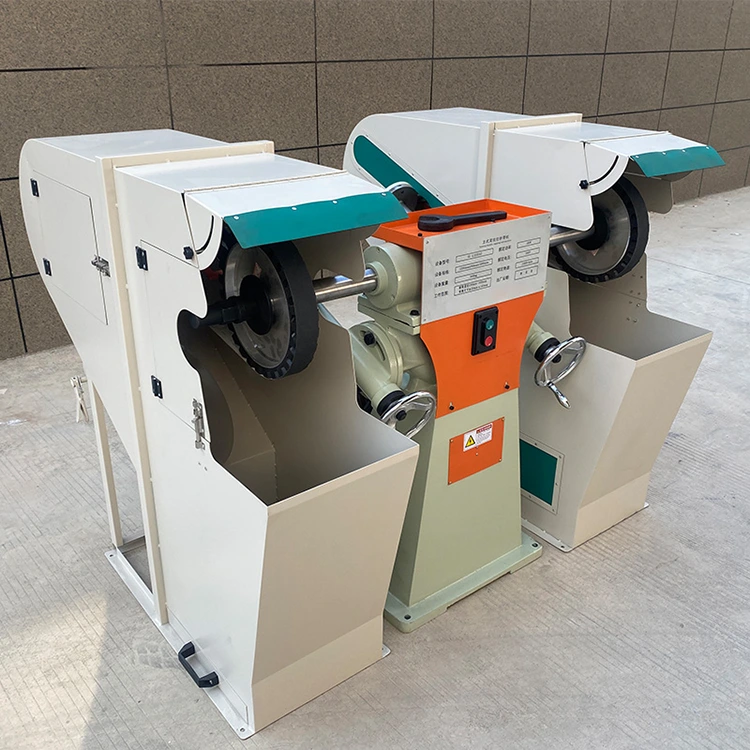

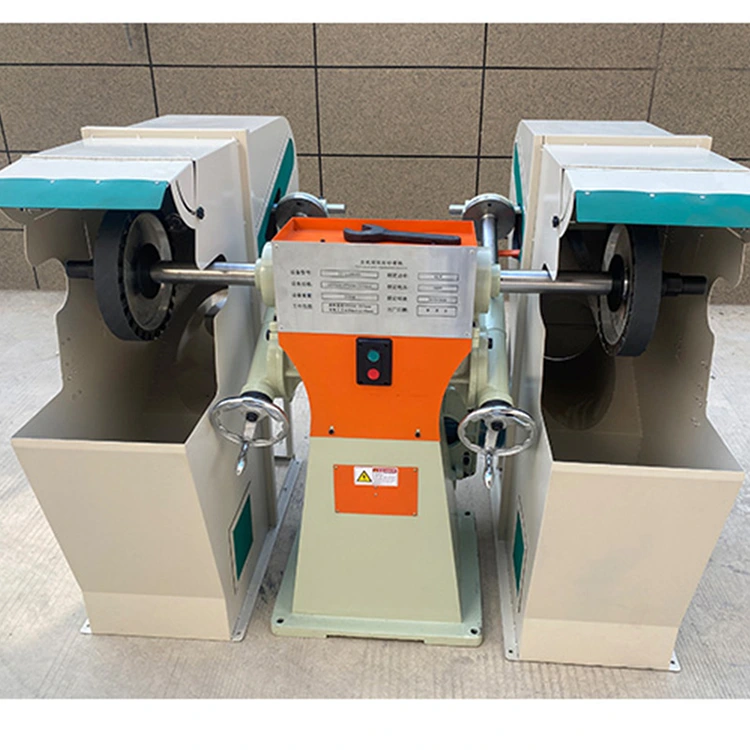

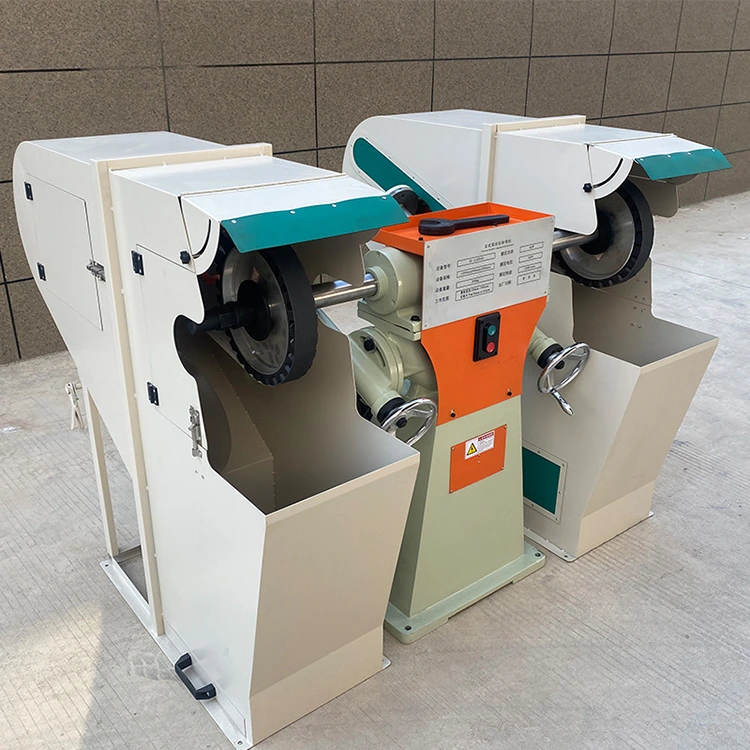

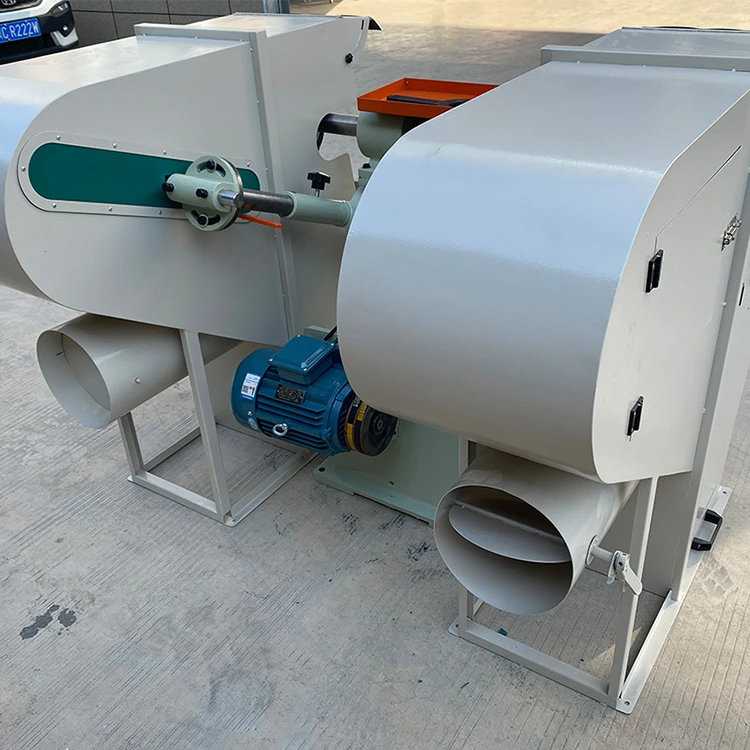

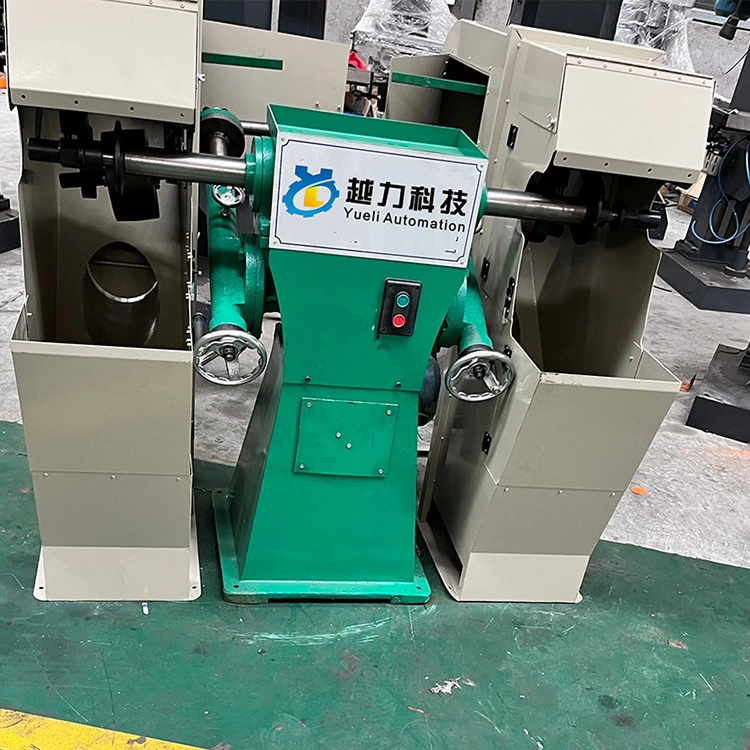

The YL-3B Environmental Sand Belt Polishing Machine is a multi-functional system that combines grinding, sanding, and fine polishing processes using abrasive belts.

In practical production environments, it primarily addresses two key issues:

First, it rapidly removes machining marks, burrs, and oxide layers, thereby rendering the workpiece surface smooth and flat;

Second, through a secondary treatment using finer abrasive belts, it achieves a surface finish that is uniform, refined, and rich in texture.

Compared to traditional manual polishing methods, this approach offers significantly higher efficiency; furthermore, it ensures consistent results across every single product, eliminating the batch-to-batch variations often associated with manual work.

lWorking Principle

The Environmental Sand Belt Polishing Machine is a power tool comprising several basic components: a base, a polishing disc, polishing fabric, a polishing hood, and a cover. The key to operating the polishing machine lies in achieving the maximum possible polishing rate, thereby removing the damaged layer generated during the grinding process as quickly as possible. Simultaneously, it is essential to ensure that the polishing-induced damaged layer does not interfere with the final observed microstructure—that is, it must not result in the appearance of "false structures." The former objective necessitates the use of coarser abrasives to ensure a high polishing rate capable of effectively removing the grinding-induced damaged layer; however, this approach also results in a relatively deeper polishing-induced damaged layer. The latter objective, conversely, requires the use of the finest materials to minimize the depth of the polishing-induced damaged layer, albeit at the cost of a lower polishing rate.

Product Specifications

Product Features

1) Abrasive belt grinding is a form of elastic grinding—a composite machining process that combines the functions of grinding, lapping, and polishing.

2) Abrasive belt grinding yields high-quality workpiece surface finishes.

4) Abrasive belt grinding offers high precision. Thanks to improvements in abrasive belt manufacturing quality and the production standards of belt grinding machines, this technique has long since entered the ranks of precision and ultra-precision machining, achieving maximum precision levels of less than 0.1 mm.

5) Abrasive belt grinding is cost-effective.

6) Abrasive belt grinding is exceptionally safe; it generates minimal noise and dust, is easy to control, and offers significant environmental benefits.

7) The abrasive belt grinding process is highly flexible and adaptable.

8) The scope of application for abrasive belt grinding is extremely broad.

Maintenance and Safety Precautions

1.Maintenance

After using the Environmental Sand Belt Polishing Machine, the base plate and the polishing pad must be removed, and the machine's surface wiped clean with a soft, clean cloth.

When the machine is not in use, a protective pad should be placed beneath the drive disc to safeguard the polishing mechanism.

Regularly inspect the air vents on the motor housing to ensure they remain unobstructed; if dust has accumulated inside, the housing must be removed and cleaned thoroughly using a vacuum cleaner. Lubricating oil should be applied frequently to the wheel bearings to prevent rust. It is recommended to conduct a comprehensive inspection of the machine once every quarter.

2.Safety Precautions

First and foremost, the machine must not be operated in environments with poor air quality—specifically, in the presence of flammable or explosive gases.

Do not operate the machine at excessive speeds, as this increases the risk of collisions with other objects and potential hazards.

During the polishing process with the Environmental Sand Belt Polishing Machine, do not lift the operating handle; doing so may cause the machine to lose control, thereby creating a hazardous situation.

Because the Environmental Sand Belt Polishing Machine is calibrated to operate within a precise balance range, no objects should be placed on the machine itself, as this will disrupt its equilibrium.

Whenever it becomes necessary to adjust the position of the operating handle, ensure that all power cords and cables are moved clear of the mechanism beforehand.

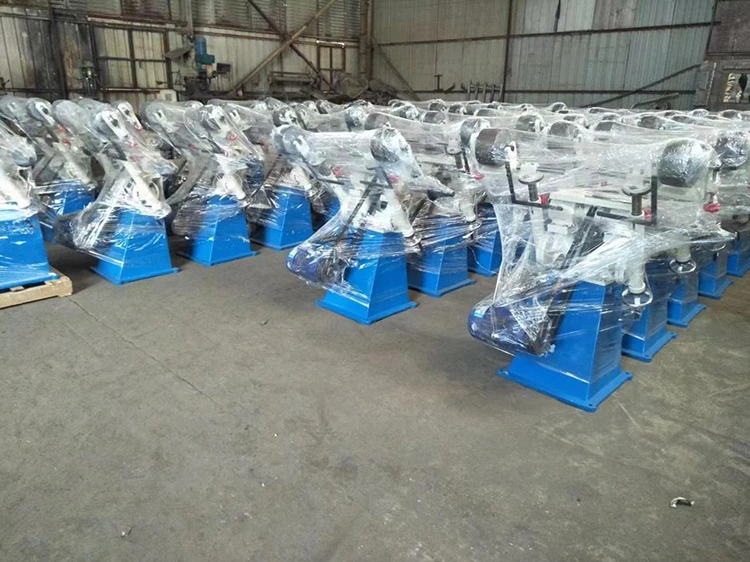

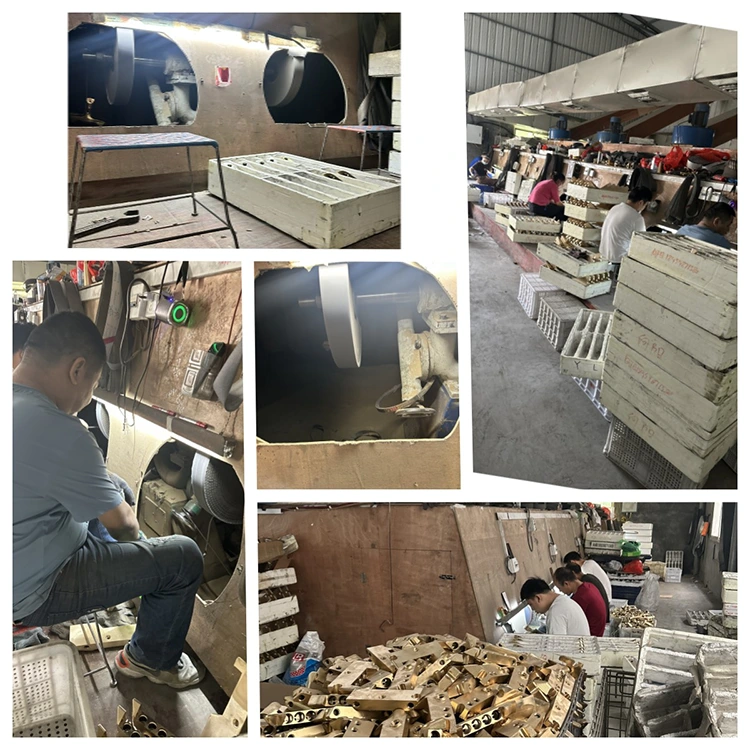

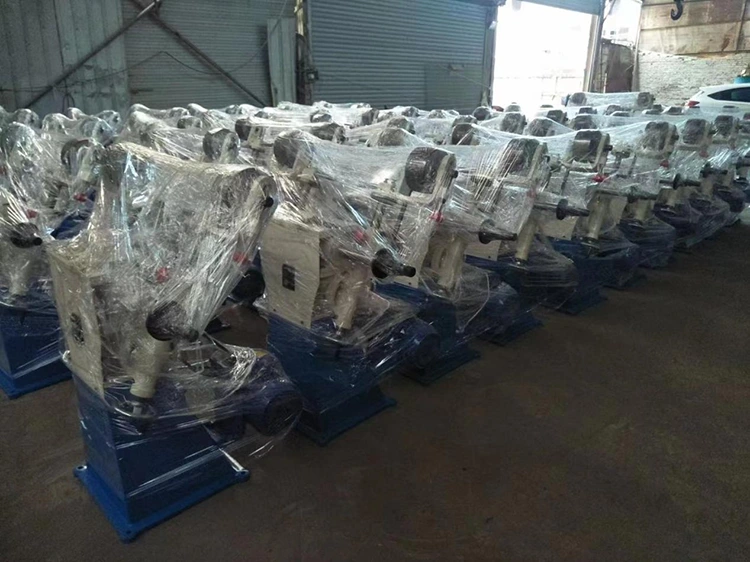

Production Capabilities of a High-Caliber Factory
