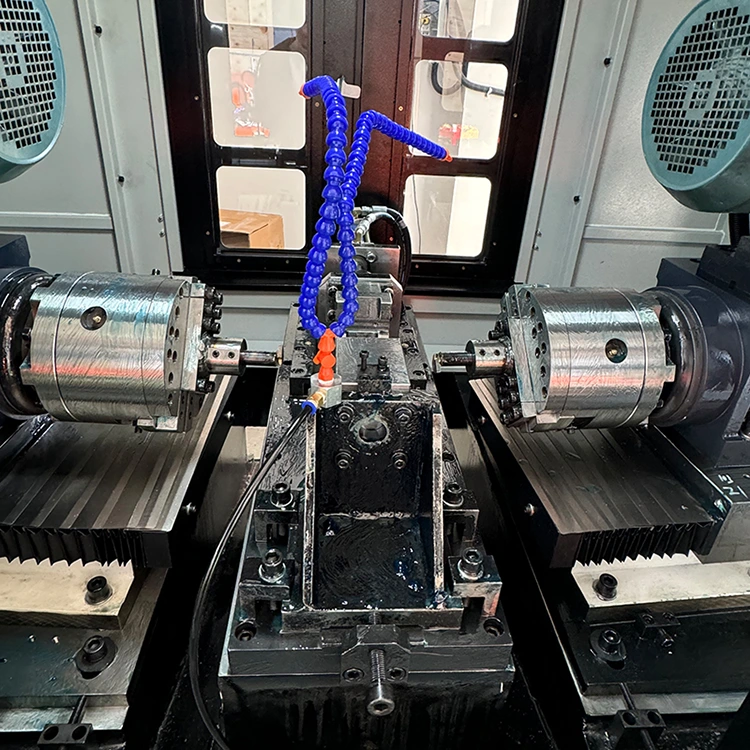

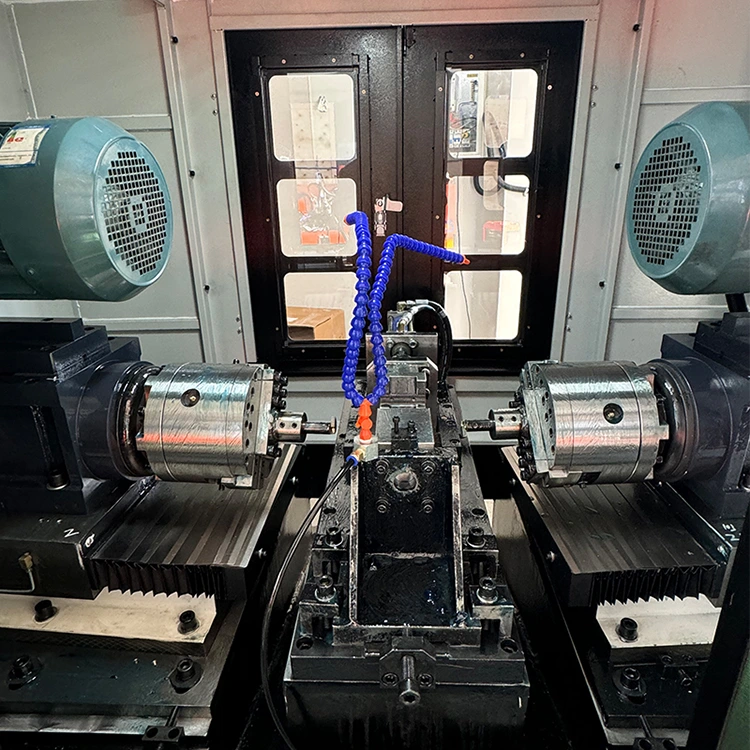

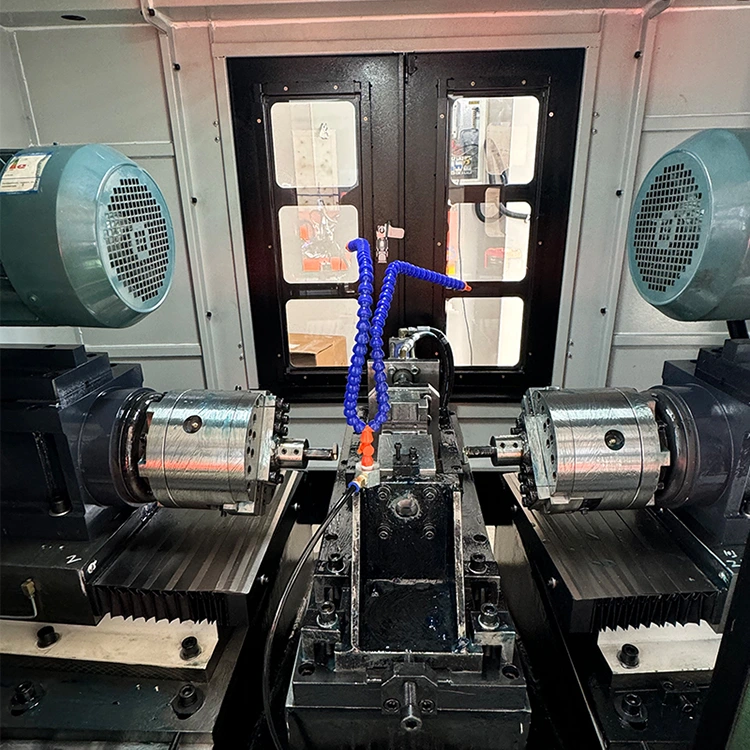

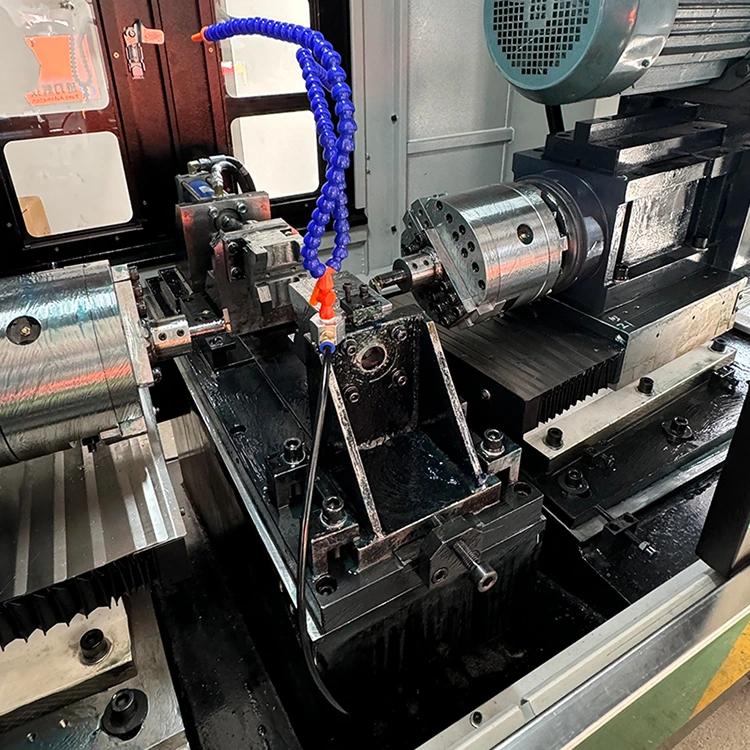

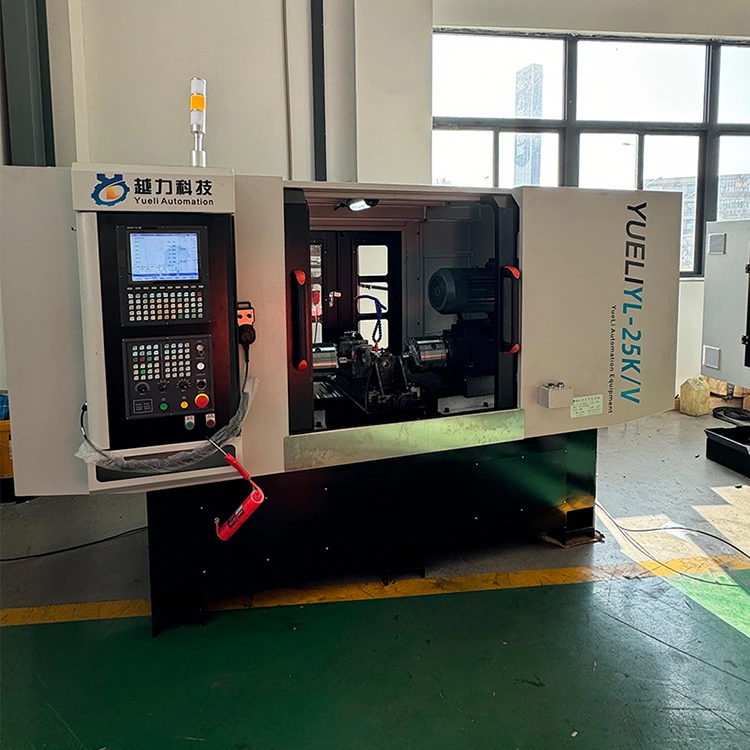

CNC Gate Valve Machine

Yueli factory’s CNC Gate Valve Machine is a high-performance industrial solution designed for manufacturers and suppliers in China seeking precision and efficiency. Built by Yueli, a trusted factory brand, this machine combines advanced servo technology, rigid construction, and user-friendly operation to meet the demands of modern valve machining. Ideal for processing gate valves with consistent accuracy, it ensures superior workflow efficiency and long-term reliability.

Key Features

1. High-Precision Servo Operation

· CNC Gate Valve Machine is equipped with SB80-850 servo-driven turret, providing smooth and accurate tool positioning.

· Spindle motor 5.5KW, 6-pole, allowing variable speeds from 0–735 r/min, ensuring precise machining for diverse valve sizes.

2. Robust Structural Design

· HG20 linear guide rails and YL3656 cross-slide table for stable, vibration-free operation.

· Worktable size of360mm x 360mm with150mm travel, accommodating various valve components.

3. Flexible Tooling and Feed

· Fixed turret design withadjustable angle 6–8° to optimize cutting efficiency.

· Servo feed motors of1.3KW and 1.8KW ensure precise material handling and machining control.

4. Auxiliary Systems

· Φ50x100 tooling hydraulic cylinder for secure clamping.

· Oil pump motor 0.75KW and cooling water pump 0.12KW for consistent operational stability.

· Working air pressure 5–6 kg/cm² ensures smooth actuation of pneumatic components.

5. Compact Yet Powerful

· Overall dimensions:3050 x 1420 x 1860 mm with a total weight of approximately 3000kg.

· Total machine power~19KW, delivering reliable performance while optimizing energy consumption.

Key Configuration Parameters

Applications

The Yueli CNC Gate Valve Machine is widely used in industrial valve manufacturing, including water treatment, petrochemical, oil & gas, power generation, and chemical industries. Suitable for factories and workshops requiring precise machining of stainless steel, carbon steel, and alloy valves, it supports small-scale specialized production and large-scale industrial manufacturing. Its versatility allows machining of complex valve geometries, improving workflow efficiency, reducing errors, and ensuring high-quality output for manufacturers, suppliers, and engineering workshops.
