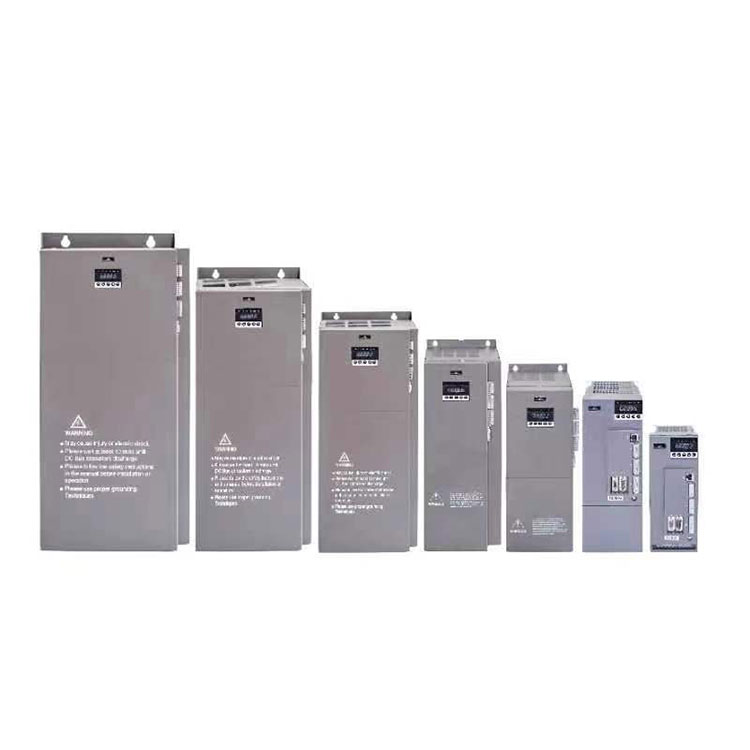

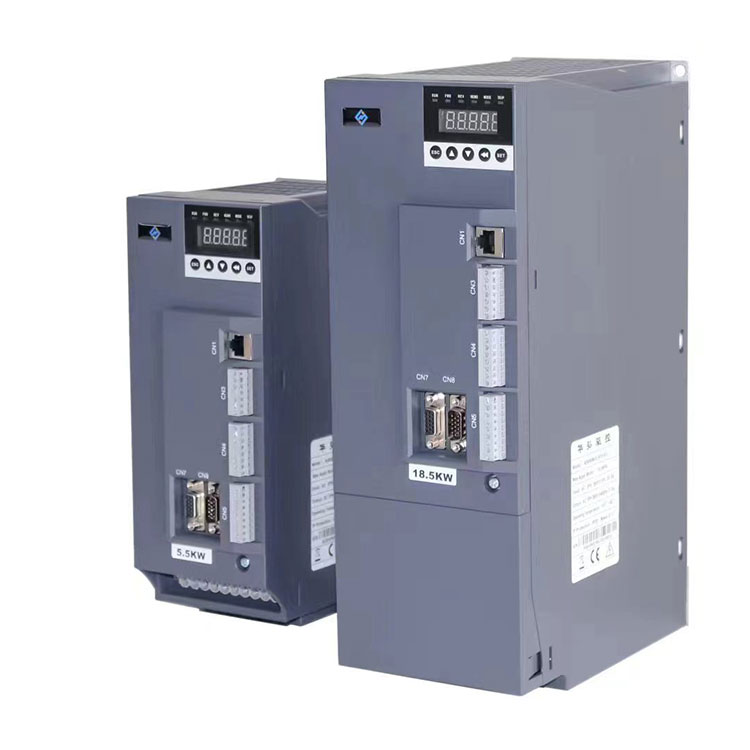

AS650 Series AC Servo Drive
The AS650 series AC servo drive realizes full closed-loop servo control of AC induction motors and permanent magnet synchronous motors, integrating speed control, position control, and torque control.
Send Inquiry
Product Description
AS650
The AS650 series AC servo drive realizes full closed-loop servo control of AC induction motors and permanent magnet synchronous motors, integrating speed control, position control, and torque control.
The AS650 series AC servo drive has rich interfaces, simple operation, and standard applications can be debugged free, providing great convenience for mechanical design engineers in selection, design, and debugging. Convenient interfaces with CNC systems and PLC systems of major domestic and foreign brands make your mechanical design more flexible and fully demonstrate your competitive advantage.
As a high-power servo drive unit, the AS650 series AC servo drive is particularly cost-effective in high-power servo drive applications such as spindle control of CNC machine tools, forging equipment, printing equipment, hydraulic servo systems, and wire drawing equipment.
Servo drive dimensions
|
power(KW) |
A(mm |
B(mm) |
H(mm) |
W(mm) |
D(mm) |
Mounting hole diameter(mm) |
Remark |
|
Installation Dimensions |
Dimensions |
||||||
|
4.0-7.5 |
90 |
251 |
262 |
100 |
155.8 |
|
|
|
11-18.5 |
108/90 |
341 |
353 |
120 |
207 |
7 |
— |
|
22 |
110 |
386 |
398 |
147 |
263 |
7 |
— |
|
30-37 |
130 |
445 |
456 |
172 |
259 |
7 |
|
|
45-75 |
177 |
544 |
560 |
240.5 |
330 |
7/6 |
— |
|
90-110 |
195 |
615 |
638 |
270.5 |
370 |
10 |
|
|
132-160 |
220 |
715.5 |
738 |
349 |
413 |
10 |
|
Drive Selection Table
|
series |
model |
Input Power |
battery capacity (kVA) |
Input Current (A) |
Output current (A) |
Adaptive motor(kW) |
Braking unit |
Adaptation distance (Q/kW) |
Braking resistor Quantity |
|
|
AS650 |
2R2T3 |
3PH 380V 50/60HZ Voltage range 304~456V Voltage imbalance rate less than 3% Frequency imbalance rate less than 3% |
4.8 |
|
6 |
2.2 |
built-in |
75/0.8 |
|
|
|
004T34 |
6 |
10.7 |
9 |
4 |
50/1.0 |
|
||||
|
5R5T3* |
8.6 |
15.5 |
13 |
5.5 |
50/1.5 |
|
||||
|
7R5T3* |
11.2 |
20.5 |
17 |
7.5 |
40/2 |
|
||||
|
011T3* |
17 |
26 |
25 |
11 |
32/2 |
|
||||
|
015T34 |
21 |
35 |
32 |
15 |
20/2.5 |
|
||||
|
018T3* |
24 |
38.5 |
37 |
18.5 |
32/2 |
|
||||
|
022T3' |
30 |
46.5 |
45 |
22 |
32/2 |
2 |
||||
|
030T3* |
40 |
62 |
60 |
30 |
20/2.5 |
|
||||
|
037T3* |
50 |
76 |
75 |
37 |
20/2.5 |
2 |
||||
|
045T3* |
60 |
92 |
90 |
45 |
16/2.5 |
|
||||
|
055T3* |
72 |
113 |
110 |
55 |
16/2.5 |
|
||||
|
075T3' |
100 |
157 |
150 |
75 |
16/2.5 |
|
||||
|
093T3* |
116 |
180 |
170 |
93 |
16/2.5 |
|
||||
|
110T3* |
160 |
214 |
210 |
110 |
16/2.5 |
|
||||
|
132T3* |
192 |
256 |
253 |
132 |
16/2.5 |
|
||||
|
160T3* |
231 |
307 |
304 |
160 |
none |
|
|
|||
|
*Note: In addition to E, the model suffixes include R and C. For power of 185kw and above, please consult the manufacturer |
||||||||||
Wire Selection Table
|
Material name |
Specifications |
Remark |
|
AS650 series servo 3m single encoder feedback cable |
CB650ME-A-3000-T/CB650ME-B-3000-T (with aviation plug) |
Single encoder drive standard |
|
AS650 series servo 3m system command feedback cable |
CB650MS-A-3000-T/CB650MS-B-3000-T (forSyntec system only) |
|
|
AS650 series servo 3m dual encoder feedback cable |
CB650MD-A-3000-T/CB650MD-B-3000-T (with aviation plug) |
Dual encoders Drivers come standard |
|
AS650 series servo 3m system command feedback cable |
CB650MS-A-3000-T/CB650MS-B-3000-T (for Syntec system only) |
|
|
*Note: The value in the specification model indicates the length, such as "CB650MD-A-3000-T", which means the cable length is 3 meters. Cables of other lengths are optional. If 5 meters is required, the model number is "CB650MD-A-5000-T", and other lengths are similar. The regular lengths are 5 meters, 8 meters, and 10 meters. |
||
Our advantages
Excellent control performance:
Can perfectly realize VF control, open-loop vector control, and full-closed-loop servo control of AC induction motors and permanent magnet synchronous motors
Ultra-low speed stable operation and high torque output
Good dynamic response performance
When running without load, the drive current reaches the minimum, maximizing energy-saving drive
Position control and torque control have higher precision
Optimized current algorithm and hardware configuration make the driver's overload capacity stronger
Rich interface functions
7 input/2 output switch input/output interface, 2 relay output ports
3 analog inputs, 1 analog output interface
2 encoder input interfaces, 1 encoder output interface
1 high-speed pulse input interface
1 group of multi-function differential pulse input interface
Standard RS232 communication interface
Mechatrolink-lll Ethercat high-speed Ethernet bus interface
Rich and powerful control functions
Fully closed-loop vector drive can perfectly realize accurate:
Speed control
Torque control
Position (angle) control
Master-slave drive, electronic gear function
Single-axis positioning and other functions
External pressure sensor, can be applied to hydraulic servo control system
Excellent control performance
Fixed-length shear control
Crimp tension control
