Serial Number

Disposition

Parameter

1

Maximum Die Size

600×500mm

2

Opening And Closing Die Stroke [Full Servo Hydraulic System. Automatic Replenishment

≤500mm

3

Minimum Closing Distance

200mm

4

Maximum Distance Of Mold Opening

 700mm

5

Top Core-Pulling Stroke

≤50mm

6

Rear Core-Pulling Stroke

≤100mm

7

Lower Core-Pulling Stroke

≤50mm

8

Maximum Clamping Force

50KN

9

Maximum Opening Force

 55KN

10

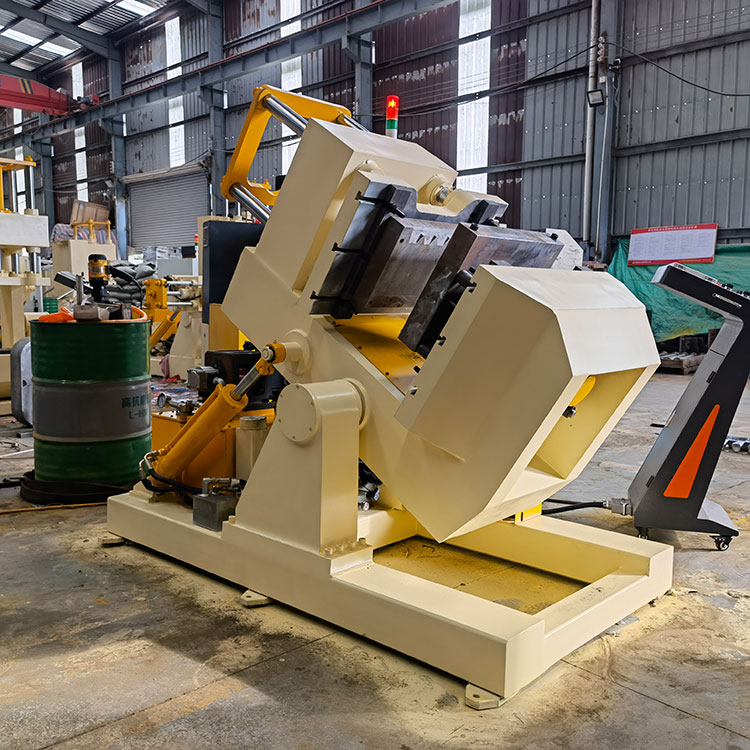

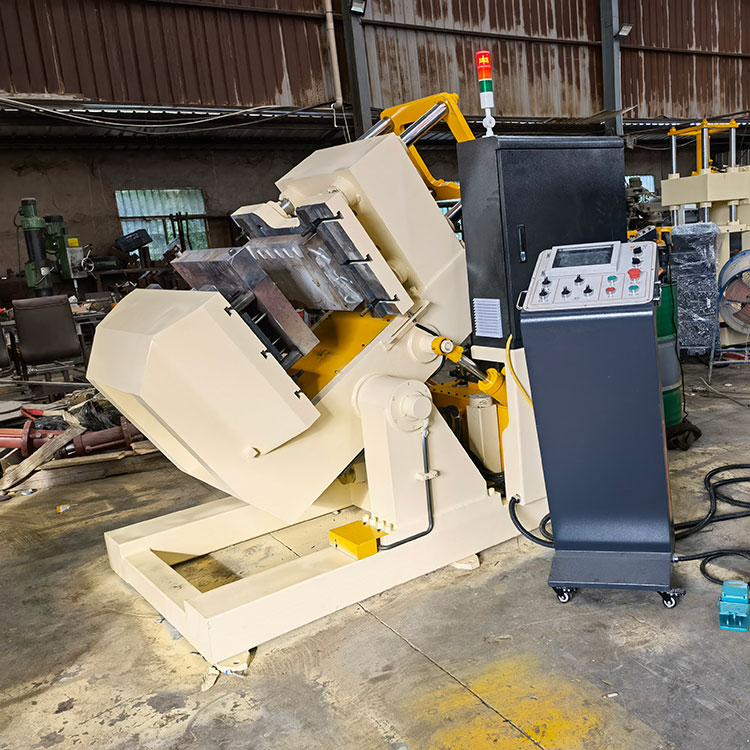

Table Tilt Angle

  0-90 度

11

Hydraulic System Working Pressure

4.5Mpa

12

Jacking Cylinder Output

25KN

13

Rated Power Of Hydraulic Station

3.75KW

14

Machine Dimensions

2500×1600×1500mm
