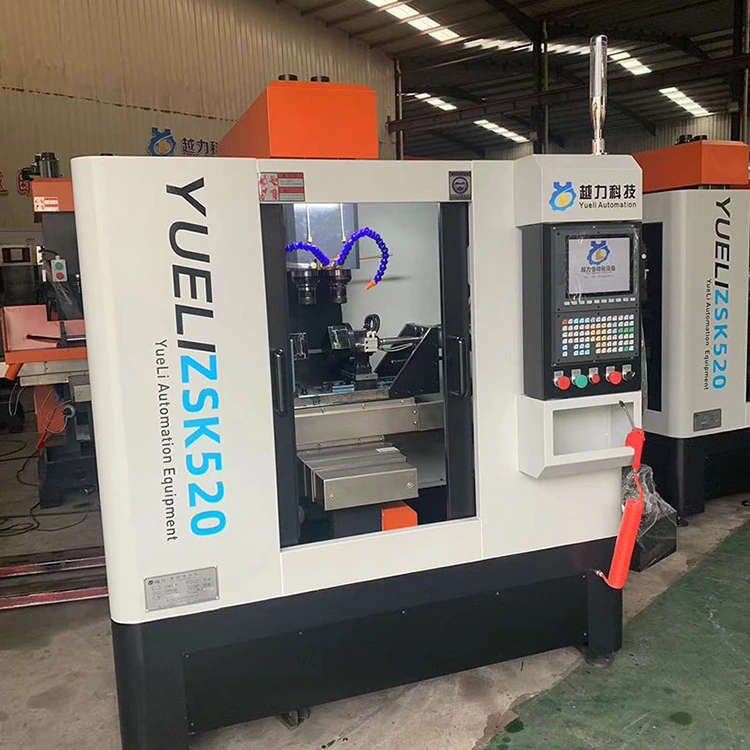

Vice Type Four Axis Processing Center

Factory Directly Supply Vice Type Four Axis Processing Center Made in China with Low Price. YueLi is Vice Type Four Axis Processing Center manufacturer and supplier in China.

Send Inquiry

Product Description

1. automatic equipment description



Factory Direct Sale Quality Vice Type Four Axis Processing Center with Low Price Manufacturers and Suppliers. YueLi is Vice Type Four Axis Processing Center manufacturer and supplier in China.


1. Taiwan Yitu Bus numerical control system; Touch screen human-machine interface friendly dialogue, intuitive programming easy to operate. Ordinary people can learn quickly.

2, four axis CNC functions are: two axes can be drilled, tapping, milling, silver ball screw feed, with 5.5KW servo main motor to achieve the system of steel tapping, with inverter, can be stepless speed regulation, but also to ensure the accuracy of processing

3, South Korea imported pneumatic components.

4, the table, the center with silver roller wire gauge, roller screw, can achieve heavy cutting.

5, digital control positioning, repeated positioning accuracy is high, fast tool adjustment speed.

6, the operation is convenient and fast, to achieve one person and multiple machines, greatly reducing labor costs and labor intensity.

7. Equipped with fully enclosed protective cover to keep the workshop clean



2.Equipment parameter



Parameter name

Name specification

50Biaxial rail

ZSK 520

X-axis maximum travel (lead screw)mm

400mm

Y-axis maximum travel (lead screw)mm

280mm

Spindle sleeve diameter mm

105mm

Spindle taper

BT40

Z1/Z2/ Maximum stroke mm

110mm

Spindle spacing mm

120mm OR 240mm selectable

Spindle face to work surface mm

250/500mm

Distance between spindle axis and bed rail surface mm

250

Maximum hole diameter mm

50mm

Maximum tapping diameter mm

50mm

Spindle speed r/min

0-3000 r/min

Spindle motor power KW

5.5KW

Overall dimension LWH:

1700*1850*2250

Net machine weight KG

1600KG
