The Double Single Open Pneumatic Flat Vice has revolutionized precision machining by combining efficiency, reliability, and ease of use. In this comprehensive guide, we explore the features, advantages, technical specifications, applications, and maintenance of this advanced pneumatic vice. By understanding its capabilities, manufacturers and machinists can enhance productivity, accuracy, and safety in their workshops.
Overview of Double Single Open Pneumatic Flat Vice

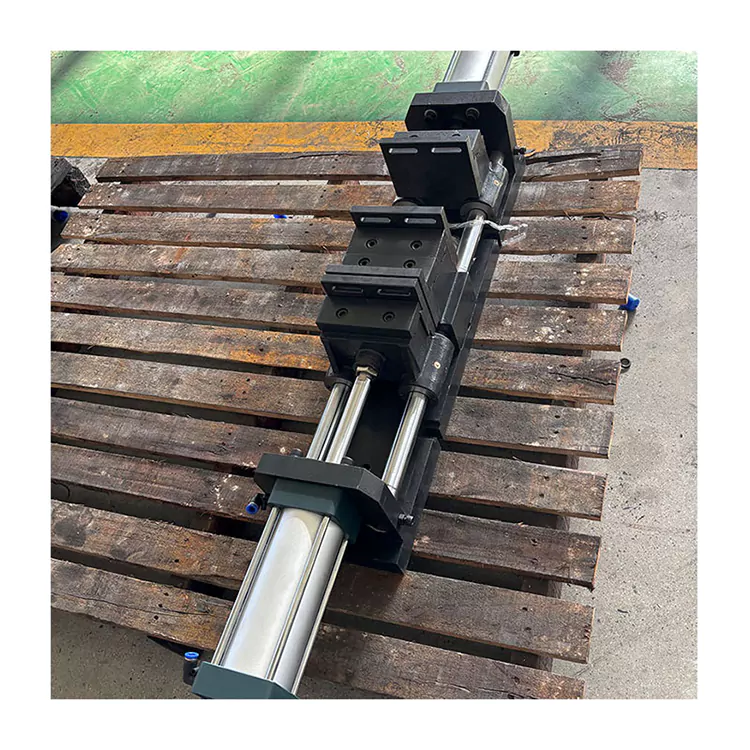

The Double Single Open Pneumatic Flat Vice from Yueli is designed for high-precision and automated machining tasks. Unlike traditional mechanical vices, this pneumatic vice uses compressed air to control the clamping mechanism, providing consistent pressure and rapid operation. Its unique double-single open design allows easy access from multiple angles, making it ideal for complex workpieces.
Key aspects include:
-
Fast clamping and release operation.
-
High repeatability and accuracy.
-
Durable construction with hardened steel jaws.
-
Reduced manual labor, improving workshop safety.
Key Features and Benefits
The Double Single Open Pneumatic Flat Vice offers several advantages that make it a preferred choice in precision machining environments:
|
Feature
|
Description
|
Benefit
|
|
Pneumatic Operation
|
Uses compressed air for smooth clamping and release
|
Reduces manual effort and speeds up production
|
|
Double Single Open Design
|
Allows access from both sides of the vice
|
Enables multi-directional machining without repositioning
|
|
High Precision
|
Engineered for repeatable accuracy
|
Improves part quality and consistency
|
|
Durable Materials
|
Constructed with high-strength steel components
|
Extends service life and minimizes maintenance
|
|
Easy Installation
|
Mounts on various CNC and manual machines
|
Versatile for different industrial setups
|
Additional benefits include energy efficiency, reduced wear and tear, and enhanced safety for operators in high-volume production settings.
Technical Specifications
Below is a detailed technical specification table for the Double Single Open Pneumatic Flat Vice by Yueli:
|
Parameter
|
Specification
|
|
Jaw Width
|
100mm / 150mm / 200mm options
|
|
Clamping Stroke
|
50mm – 120mm
|
|
Air Pressure
|
4–6 bar (0.4–0.6 MPa)
|
|
Repeatability
|
±0.01mm
|
|
Material
|
Hardened Steel with anti-corrosion coating
|
|
Weight
|
25–60 kg depending on size
|
Industrial Applications
The Double Single Open Pneumatic Flat Vice is widely used across different industries due to its flexibility and precision. Typical applications include:
-
CNC milling and drilling operations
-
Automotive component machining
-
Electronics and PCB assembly fixture
-
Metalworking and fabrication tasks
-
Laboratory and research setups requiring high precision
Its design allows multiple pieces to be clamped simultaneously, optimizing workflow and reducing downtime.
Maintenance and Best Practices
To ensure optimal performance and longevity of your Double Single Open Pneumatic Flat Vice, follow these maintenance guidelines:
-
Regularly check and maintain air supply pressure within recommended limits.
-
Lubricate moving parts with high-quality industrial grease.
-
Inspect jaws and clamps for wear and replace if necessary.
-
Keep the vice clean and free from metal debris after each operation.
-
Schedule periodic professional servicing for air cylinders and seals.
By following these steps, machinists can avoid unexpected downtime and ensure consistent precision.
Comparison with Other Vices
Below is a comparison of the Double Single Open Pneumatic Flat Vice with conventional mechanical vices:
|
Feature
|
Pneumatic Flat Vice
|
Mechanical Vice
|
|
Clamping Speed
|
Instantaneous with air pressure
|
Manual operation, slower
|
|
Accuracy
|
±0.01mm
|
±0.05mm
|
|
Operator Fatigue
|
Minimal
|
Higher due to manual force
|
|
Versatility
|
Multi-directional access
|
Limited by jaw design
|
|
Maintenance
|
Periodic air cylinder and seal checks
|
Regular lubrication only
|
Frequently Asked Questions (FAQ)
Q1: What industries benefit most from using this vice?
A1: Industries such as automotive, aerospace, electronics, metal fabrication, and precision engineering benefit greatly from its speed, accuracy, and multi-directional accessibility.
Q2: How does pneumatic clamping improve workflow?
A2: Pneumatic clamping reduces manual effort, speeds up setup times, ensures consistent pressure, and allows operators to handle multiple components efficiently.
Q3: Can the vice be mounted on any CNC machine?
A3: Yes, the vice is designed for compatibility with most CNC milling, drilling, and engraving machines. Ensure correct mounting dimensions and air supply.
Q4: How often should maintenance be performed?
A4: Routine cleaning and lubrication should be done weekly, with professional servicing of air components every 6–12 months depending on usage.
Q5: Is Yueli’s pneumatic flat vice suitable for high-volume production?
A5: Absolutely. Its design supports rapid operation, high repeatability, and long-term durability, making it ideal for high-volume and precision production.
For manufacturers and machinists seeking unmatched precision and efficiency, the Double Single Open Pneumatic Flat Vice from Yueli is the ultimate choice. Upgrade your workshop today and enhance productivity while ensuring superior part quality. Contact us to learn more or request a quote.
